4

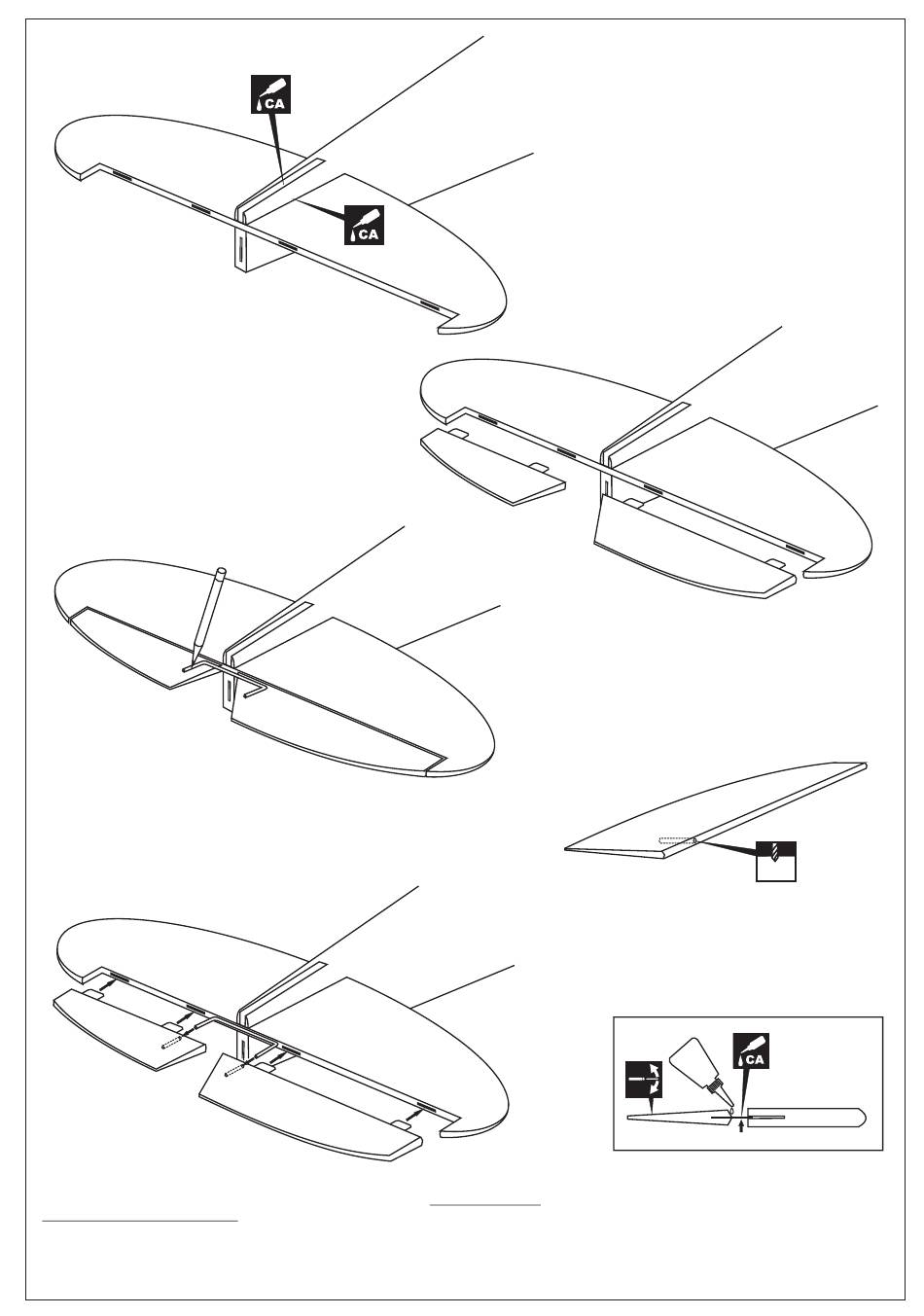

Insert the left and right elevator onto the
horizontal stabilizer
Note: Do not glue at this time.
4C
Place the "U" torque rod onto the
top of the elevator as shown.
Use the pencil, mark on each elevator where the one
end of "U" torque rod meets the elevator.
4E
Apply a thin layer of machine oil or petroleum jelly to only the top and bottom of
the trailing edge of the elevator, then push the elevator and its hinges into the hinge
slots in the trailing edge of the horizontal stabilizer.
When satisfied with the and alignment, hinge the elevator to the horizontal stabilizer using
CA glue.
When you are satisfied with the alignment,
Secure the horizontal stabilizer onto the
fuselage using CA glue.
Note: Glue on the top and bottom of the
horizontal stabilizer, where it meets the
fuselage, and inside the slot for the vertical
4A
stabilizer installation.
! Securely glue together If coming off during
fly, you lose control of your air plane.
4B
Remove the elevator and drill the hole as marked,
marking sure that you drill the hole perpendicular to
the leading edge of the elevator half (7E).
Do the same way with second elevator.
Test-fit one end of the "U" torque rod into
each elevator half before glue the elevator
hinges to the horizontal stabilizer.
Petroleum jelly
3mm
4D
Thin CA glue
STABILIZER
Hinge
