CIS
Industrial Solar Charge Controller
PV-Systems exposed to extreme weather/environmental conditions (street lights, navigation buoys,
etc.) have increased risk for damage in the power electronics. In order to assure reliable battery charge
control under such conditions, Phocos developed an encapsulated charge controller (IP68) to prevent
corrosion: CIS.

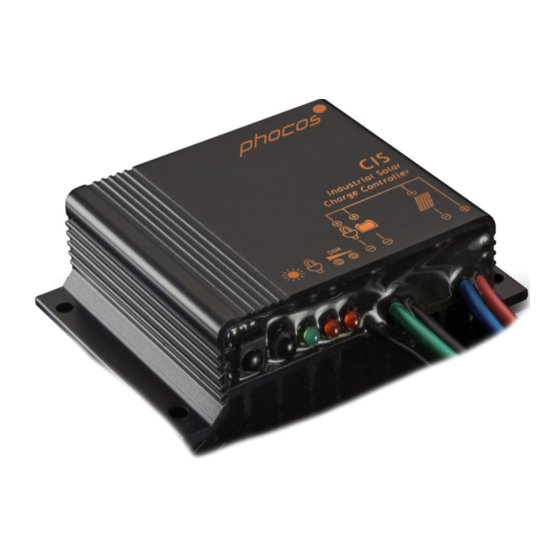

CIS is an industrial-grade charge controller that is suitable for all practical PV applications. High-quality,
4-stage PWM-charging is combined with amazing features such as: low-voltage disconnect, flexible load
timer functions, and a multi-LED system status display. CIS is available in two versions:
Dual load to independently control two loads
Output Dimming to save energy in lighting applications
The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge
thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.
All devices are connected to the controller by supplied lead wires rather than wire terminals. This
feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals,
physical shock) where components make electrical contact to the controller.
The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS
was developed in accordance with well-established Phocos standards incorporating the latest
technology, highest-quality and best possible cost/performance ratio.
20090914
Subject to change without notice
Robust Aluminum Housing
Epoxy Encapsulated PCB to Prevent Corrosion (IP68)
Compact Size
Infrared Remote Control Programming Accessory (CU)
Intelligent Timer Functions
Widely Programmable
External Temperature Sensor (Optional)
4 Stage Battery Charging (Main, Float, Boost, Equalization)
Dual load or Dimmable Load Output
Automatic System Voltage Recognition (12 V/24 V)
