RANGE EXT E N DE R
US E R'S MA NUA L
The Range Extender from Ebikemotion provides an extra
208W/h to the main internal battery on Ebikemotion's X35
systems, increasing the 248W/h of the main battery up to a
maximum capacity of as much as 450W/h.
This increase in total capacity of the system will make it
possible to increase the autonomy achieved with the internal
battery by up to 70%.
USER' S MAN UAL RANGE EXTENDER
TE CH N I CAL S P E CI F I CATI O NS
1 3
1 4
1 5
1 5
1 6
1 8
1 8
1 9
Total capacity: 208.8W/h (5.8A)
Voltage: 36 V
Cells: Panasonic
Charging time: 3 hours
Maximum discharge ratio: 1.9 A
Water resistance: IP57
Color: Anodized black
Charging and ignition display: Iwoc One button
Charging port protected by a rubber cover.
Dual charging: The Range Extender and main battery can be charged at the same time by
connecting the Range Extender to the main battery and the X35 charger to the Range Extender.
Certifications: EN 15194.2017
Bicycle mounting: Specific X35 bottle holder with Quick Lock rubber band. Exclusive mount-
ing on the seat tube.
Weight: 1645 g with bottle holder

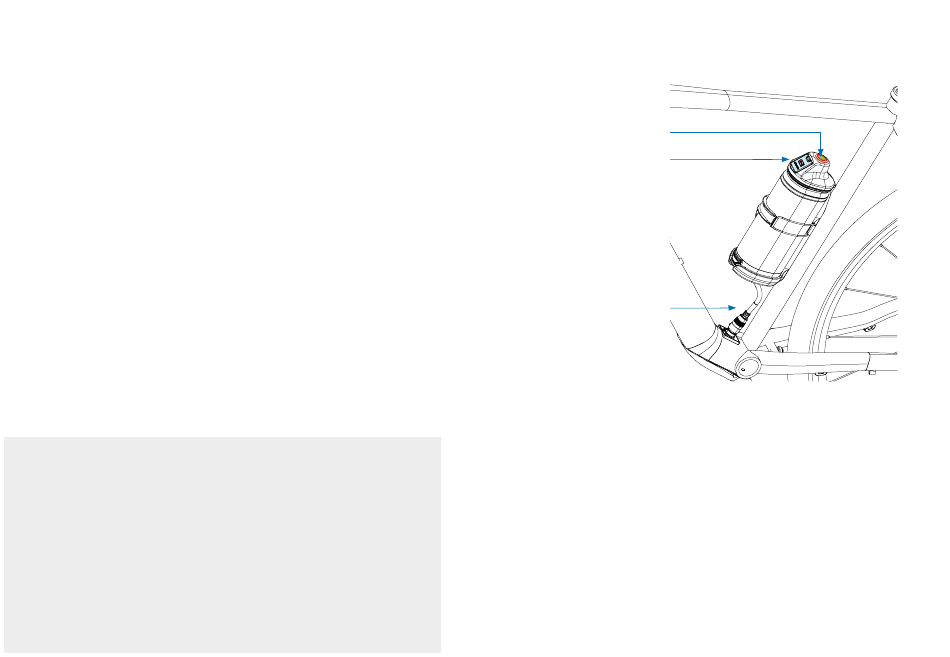

ON / OFF
CHARGING POINT
CONNECTING CABLE
ORB EA | 13
