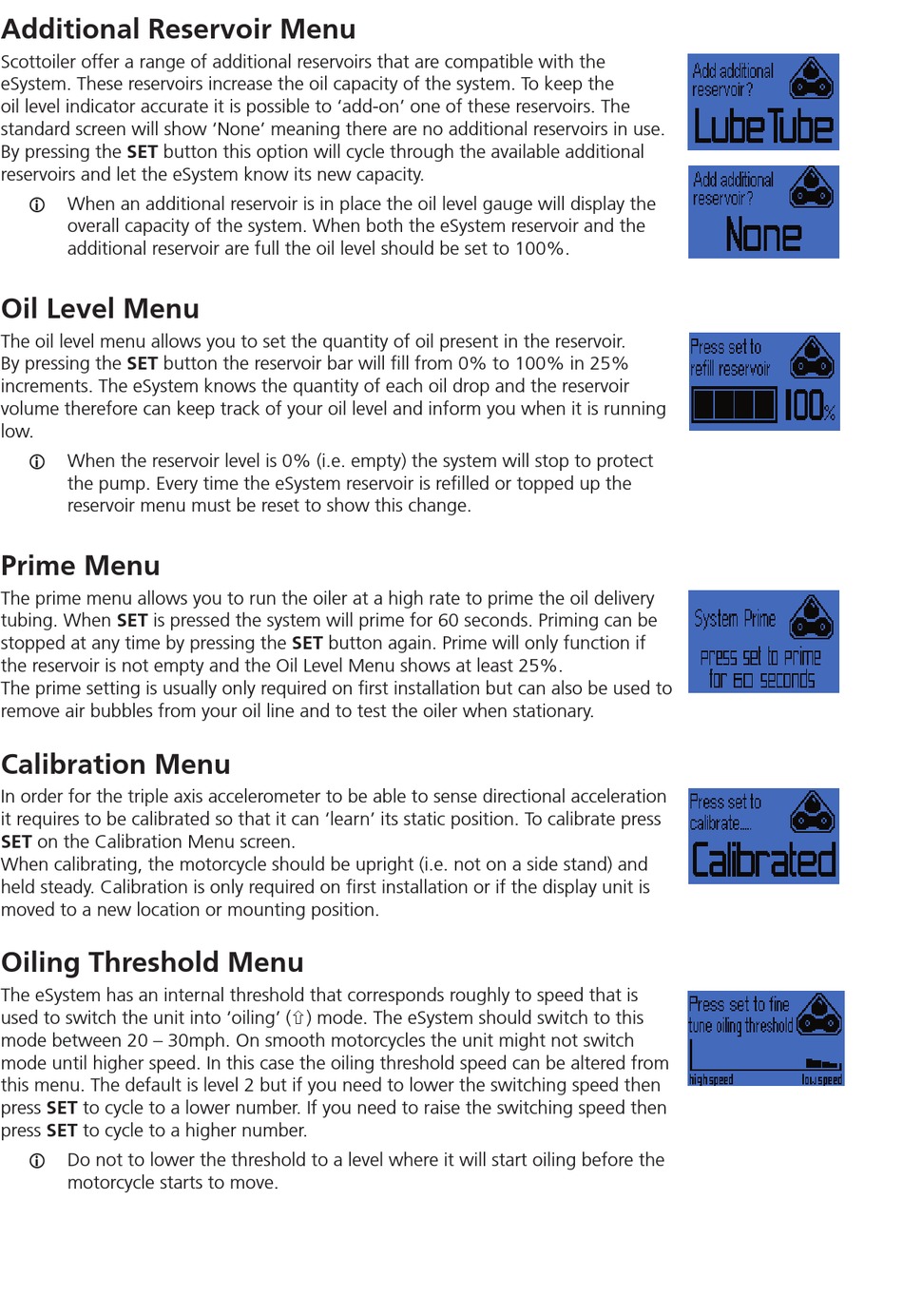

Additional Reservoir Menu
Scottoiler offer a range of additional reservoirs that are compatible with the
eSystem. These reservoirs increase the oil capacity of the system. To keep the
oil level indicator accurate it is possible to 'add-on' one of these reservoirs. The
standard screen will show 'None' meaning there are no additional reservoirs in use.
By pressing the SET button this option will cycle through the available additional
reservoirs and let the eSystem know its new capacity.
When an additional reservoir is in place the oil level gauge will display the
L
overall capacity of the system. When both the eSystem reservoir and the
additional reservoir are full the oil level should be set to 100%.
Oil Level Menu
The oil level menu allows you to set the quantity of oil present in the reservoir.
By pressing the SET button the reservoir bar will fill from 0% to 100% in 25%
increments. The eSystem knows the quantity of each oil drop and the reservoir
volume therefore can keep track of your oil level and inform you when it is running
low.
When the reservoir level is 0% (i.e. empty) the system will stop to protect
L
the pump. Every time the eSystem reservoir is refilled or topped up the
reservoir menu must be reset to show this change.
Prime Menu
The prime menu allows you to run the oiler at a high rate to prime the oil delivery
tubing. When SET is pressed the system will prime for 60 seconds. Priming can be
stopped at any time by pressing the SET button again. Prime will only function if
the reservoir is not empty and the Oil Level Menu shows at least 25%.
The prime setting is usually only required on first installation but can also be used to
remove air bubbles from your oil line and to test the oiler when stationary.

Calibration Menu

In order for the triple axis accelerometer to be able to sense directional acceleration
it requires to be calibrated so that it can 'learn' its static position. To calibrate press
SET on the Calibration Menu screen.
When calibrating, the motorcycle should be upright (i.e. not on a side stand) and
held steady. Calibration is only required on first installation or if the display unit is
moved to a new location or mounting position.
Oiling Threshold Menu
The eSystem has an internal threshold that corresponds roughly to speed that is
used to switch the unit into 'oiling' () mode. The eSystem should switch to this
mode between 20 – 30mph. On smooth motorcycles the unit might not switch
mode until higher speed. In this case the oiling threshold speed can be altered from
this menu. The default is level 2 but if you need to lower the switching speed then
press SET to cycle to a lower number. If you need to raise the switching speed then
press SET to cycle to a higher number.
Do not to lower the threshold to a level where it will start oiling before the
L
motorcycle starts to move.
