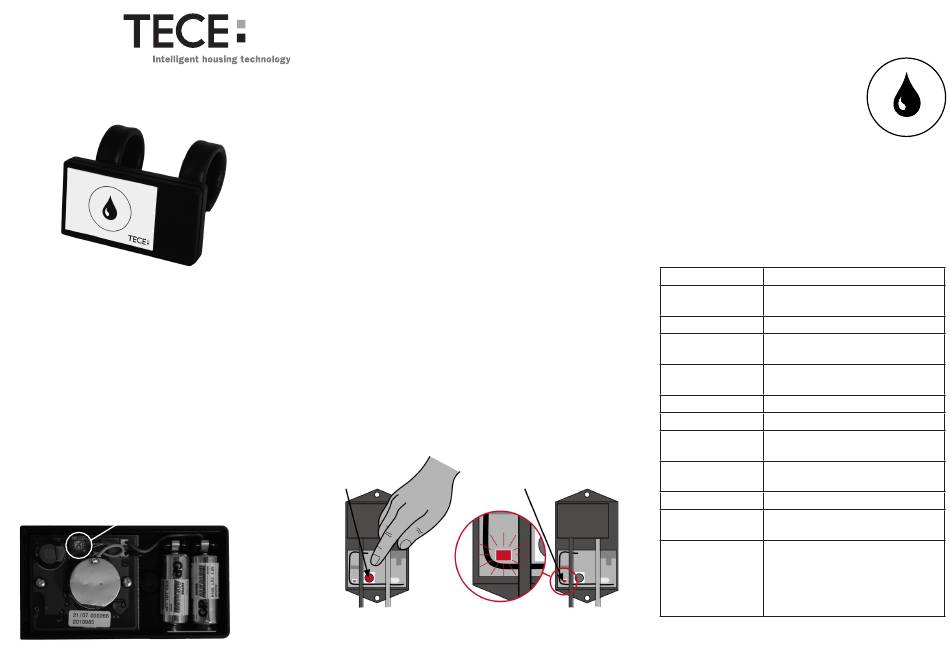

TECEplanus Radio Control – 9.240.360
Mounting and operating instructions
Start-up procedure
Prior to fitting the radio control to the flipper-type support
handle, the batteries enclosed have to be placed in the unit:
Turn the screw on the rear side of the housing and open
■
the cover. Place the two batteries as marked in the
housing.
The volume of the audible beep for acoustic flush acknow-
ledgement can be set only when the housing is open.
We recommend the works setting - „full" volume. In
■
order to reduce the volume, turn the controller to the
left; by turning the controller to the right the volume is
increased.
controller
Now close the housing again tightly.
Please make sure you place the housing lid correctly:
■
A sealing ring has been fitted in the lid, which prevents
water from getting inside.
When screwing down the housing lid, please make sure
■
that the sealing ring makes tight contact to the lock
screw.
Mounting
The radio control is supplied with two pre-mounted fastening
clamps for screw fastening to the support handles up to a
pipe diameter of 33 mm.
Undo the screw connections of the universal clamps.
■
Subsequently use these two clamps to fasten the radio
control to the upper or lower pipe (depending on the
support handle)..
Tighten the screws after you have positioned the radio
■
transmitter.
Depending on the requested position of the transmitter,
the radio control can be fitted to the support handle in any
position (left-hand or right-hand of the WC).
Programming the radio control
Prior to the first use, the radio transmitter has to be
programmed to communicate with the respective radio
receiver (component part of the corresponding flushing
system). Every receiver has a corresponding push-button as
well as an LED for this purpose.
Push-button LED
In order to start the programming process, please
■
press the push-button on the receiver. This action will
be acknowledged optically by the receiver by a one-time
flash of the LED.
Now, please press the flush release
■
surface of the radio transmitter
within thirty seconds. Three flashes
of the LED indicates the successful
programming of the radio transmitter
Flushing function
After successful programming, the toilet can be flushed by
approaching the release surface (approx. 3 to 5 mm in front
of the surface) or by touching this surface. A successful
flushing signal will be acoustically acknowledged by the
„beep".
Technical data
Frequency 868,4 MHz
Adressing Individual 32 bit address,
programmable at the receiver
Range 10 m maximum
Functions Capacitive push-button, acoustic
acknowledgement by beep
Release kapazitiver Taster, akustische
Quittierung durch Tastenton
Power supply 3 VDC (2 x alkaline battery LR-1)
Battery life Approx. 3 years or 100,000 flushes
Housing ABS housing
approx. 85 x 46 x 16 mm
Mounting By clamps on flipper-type support
handle
Colour Black (RAL 9005)
Degree of IP 54
protection
Compatible TECEplanus 9.240.354
WC controls TECEplanus 9.240.355
Geberit 115.867
Sanit 03.082.00.0000
Viega 462.376
