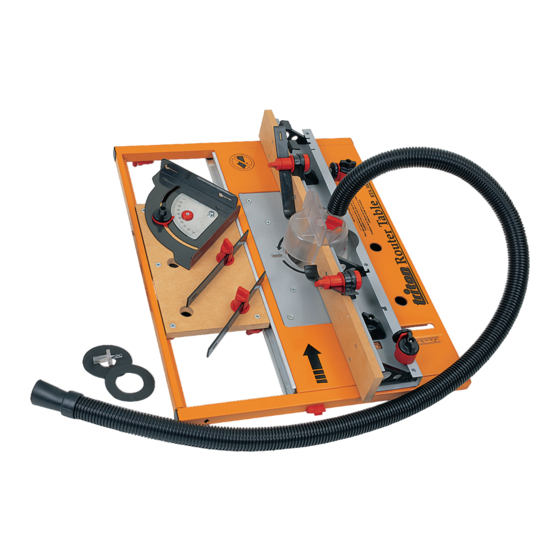

Quick installation of any Triton Router is easy with the Precision Router Table System. Featuring slots on the mounting plates and including quality, heavy duty
fittings, almost any ¼" or ½" Router can be installed. By adding other accessories, the system will perform jigsaw cutting, biscuit jointing and finger jointing.
Fitting the Triton Router Table to the Triton Workcentre or Router Stand adds a whole new dimension to woodworking, allowing shaping, planing, rebating,
trenching, moulding and grooving. Whatever the job, the Triton Router Table offers remarkable accuracy, exceptional versatility and enhanced safety for top
results every time.
Height adjustable, clear safety guard
for clear sight of the cut zone and efficient
dust collection for safe free-hand work
Double-Sided Protractor
fitted with grip tape for added
non-slip support with 90°
range
Sliding Table Insert with
removable protractor
For smooth accurate cutting
Small & Large Cutter Inserts
provides maximum support for
the workpiece
Powder-Coated Table
ensures a sturdy flat surface
with quick fit system
Selling Points
• Perfect for moulding, planing, rebating, trenching, end-grain & free-hand work
• Accepts most ¼" & ½" routers
• Safe free-hand operation with fitted safety guard
• Accessory range includes Jigsaw Kit, Biscuit Joiner & Finger Jointer
• For use on Triton Workcentre & Router Stand
• High-faced fence micro adjusters & planing shims
• Sliding table insert with removable protractor
What's in the Box
• Planing Shims
• Alignment Tool
• Cutter Inserts
Precision Router
Table System
Micro Adjusters
for fine adjustment of
the fence position for
rebating & planing
Key Specifications
220 - 240V 50Hz
Table Size
540 x 690mm
Bevel Adjustment
Dust Extraction
Weight
RTA 300
Non-return pressure fingers
for fully adjustable vertical
and horizontal support
Steel frame fence
with MDF face
is easily replace when
worn or damaged
Dust Extraction Tube
for connection to a dust
collection system
Voltage
110 - 120V 60Hz
21 x 27"
90º
Yes
11kg 24.4lbs
