Mounting

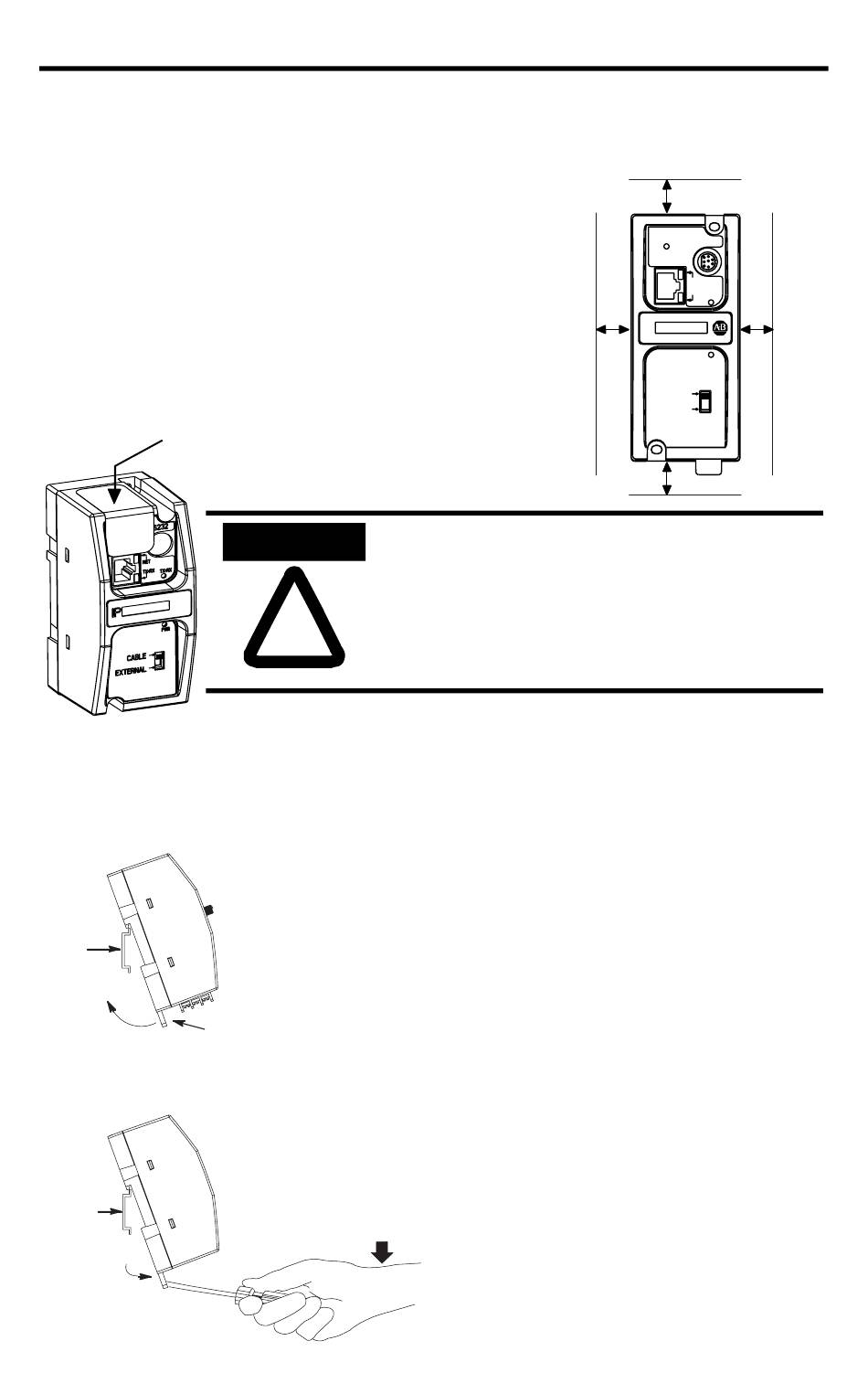

The 1761-NET-ENI must be mounted in the
vertical position, as shown. Horizontal
mounting is not recommended due to thermal
considerations. Allow 50 mm (2 in.) of space
on all sides for adequate ventilation. See page 3
for operating temperature specification.
protective debris strip
DIN Rail Mounting
Installation
DIN
Rail
Removal
DIN
Rail
ATTENTION
!
1. Mount your DIN rail.
2. Snap the DIN rail latch into the closed
position.
3. Hook the top slot over the DIN rail.
4. While pressing the unit against the rail, snap
Latch the unit into position.
1. Place a screwdriver in the DIN rail latch at the
bottom of the unit.
2. Holding the unit, pry downward on the latch
Side
until the unit is released from the DIN rail.
View
MicroLogix™ Ethernet Interface (ENI)
Do not remove the protective debris strip
until after all the equipment in the panel
is mounted and wiring is complete. Once
wiring is complete, remove protective
debris strip. Failure to remove strip
before operating can cause overheating.
top
ETHERNET
RS232
FAULT
NET
TX/RX
TX/RX
IP
side
PWR
CABLE
EXTERNAL
bottom
