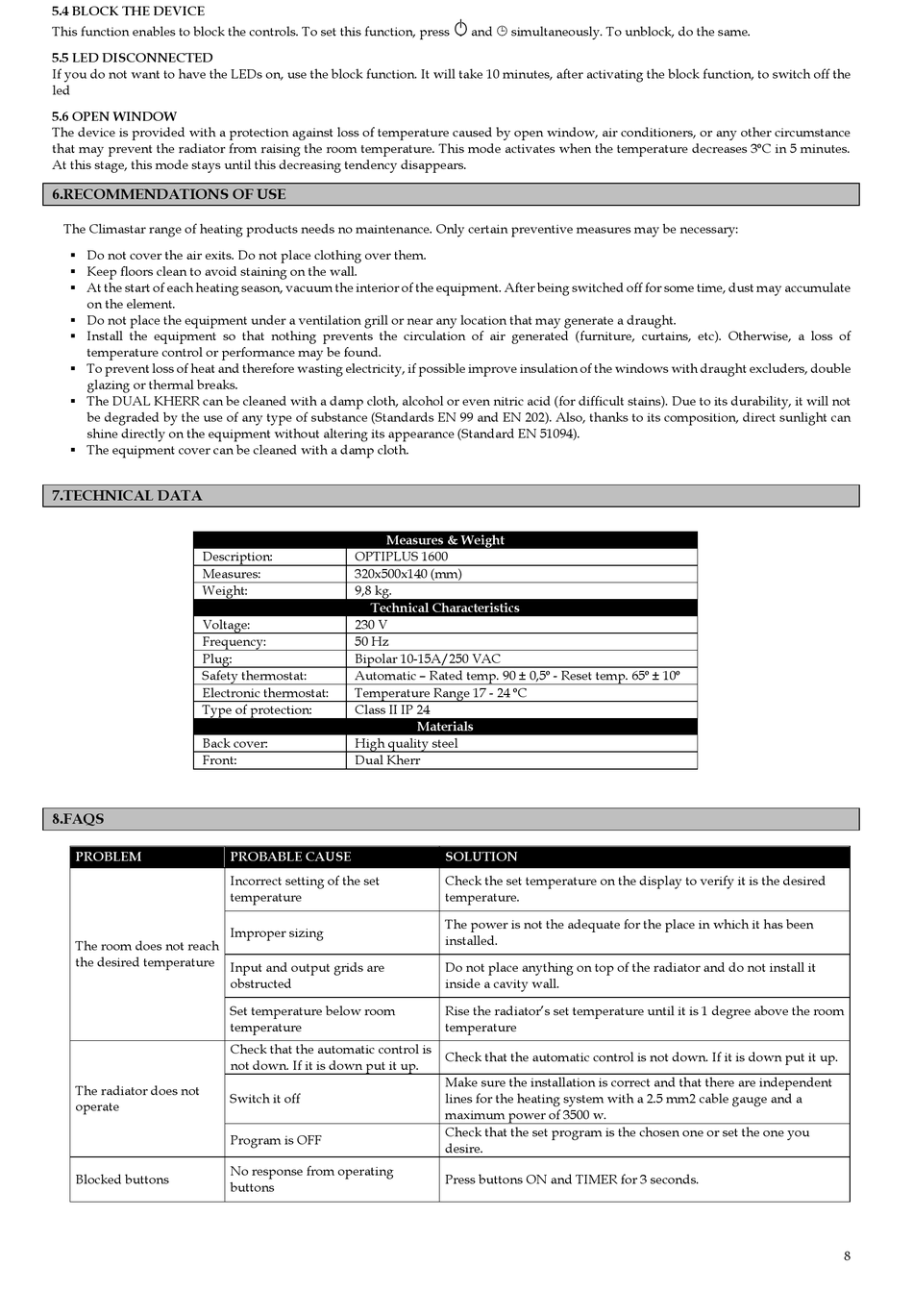

5.4 BLOCK THE DEVICE
This function enables to block the controls. To set this function, press
5.5 LED DISCONNECTED
If you do not want to have the LEDs on, use the block function. It will take 10 minutes, after activating the block function, to switch off the
led
5.6 OPEN WINDOW
The device is provided with a protection against loss of temperature caused by open window, air conditioners, or any other circumstance
that may prevent the radiator from raising the room temperature. This mode activates when the temperature decreases 3ºC in 5 minutes.
At this stage, this mode stays until this decreasing tendency disappears.
6.RECOMMENDATIONS OF USE
The Climastar range of heating products needs no maintenance. Only certain preventive measures may be necessary:
 Do not cover the air exits. Do not place clothing over them.
 Keep floors clean to avoid staining on the wall.
 At the start of each heating season, vacuum the interior of the equipment. After being switched off for some time, dust may accumulate
on the element.
 Do not place the equipment under a ventilation grill or near any location that may generate a draught.
 Install the equipment so that nothing prevents the circulation of air generated (furniture, curtains, etc). Otherwise, a loss of
temperature control or performance may be found.
 To prevent loss of heat and therefore wasting electricity, if possible improve insulation of the windows with draught excluders, double
glazing or thermal breaks.
 The DUAL KHERR can be cleaned with a damp cloth, alcohol or even nitric acid (for difficult stains). Due to its durability, it will not
be degraded by the use of any type of substance (Standards EN 99 and EN 202). Also, thanks to its composition, direct sunlight can
shine directly on the equipment without altering its appearance (Standard EN 51094).
 The equipment cover can be cleaned with a damp cloth.

7.TECHNICAL DATA

Description:
Measures:
Weight:
Voltage:
Frequency:
Plug:
Safety thermostat:
Electronic thermostat:
Type of protection:
Back cover:
Front:
8.FAQS
PROBLEM
The room does not reach
the desired temperature
The radiator does not
operate
Blocked buttons
Measures & Weight
OPTIPLUS 1600
320x500x140 (mm)
9,8 kg.
Technical Characteristics
230 V
50 Hz
Bipolar 10-15A/250 VAC
Automatic – Rated temp. 90 ± 0,5º - Reset temp. 65º ± 10º
Temperature Range 17 - 24 ºC
Class II IP 24
High quality steel
Dual Kherr
PROBABLE CAUSE
Incorrect setting of the set
temperature
Improper sizing
Input and output grids are
obstructed
Set temperature below room
temperature
Check that the automatic control is
not down. If it is down put it up.
Switch it off
Program is OFF
No response from operating
buttons
and  simultaneously. To unblock, do the same.
Materials
SOLUTION
Check the set temperature on the display to verify it is the desired
temperature.
The power is not the adequate for the place in which it has been
installed.
Do not place anything on top of the radiator and do not install it
inside a cavity wall.
Rise the radiator's set temperature until it is 1 degree above the room
temperature
Check that the automatic control is not down. If it is down put it up.
Make sure the installation is correct and that there are independent
lines for the heating system with a 2.5 mm2 cable gauge and a
maximum power of 3500 w.
Check that the set program is the chosen one or set the one you
desire.
Press buttons ON and TIMER for 3 seconds.
