Calibration; Cleaning - Sks Smartline 2D Bsv2012 Installationsanleitung

SKS-Kinkel Elektronik GmbH
10007001 SMARTLine 2D BSV2012 Video Indoor Station
Navigate to the menu point Language and push the enter key to confirm, then choose your preferred language using
the arrow keys and set it as standard by hitting the enter key again.
By pushing the back key you can leave the menu or get back to the last menu.
9.4

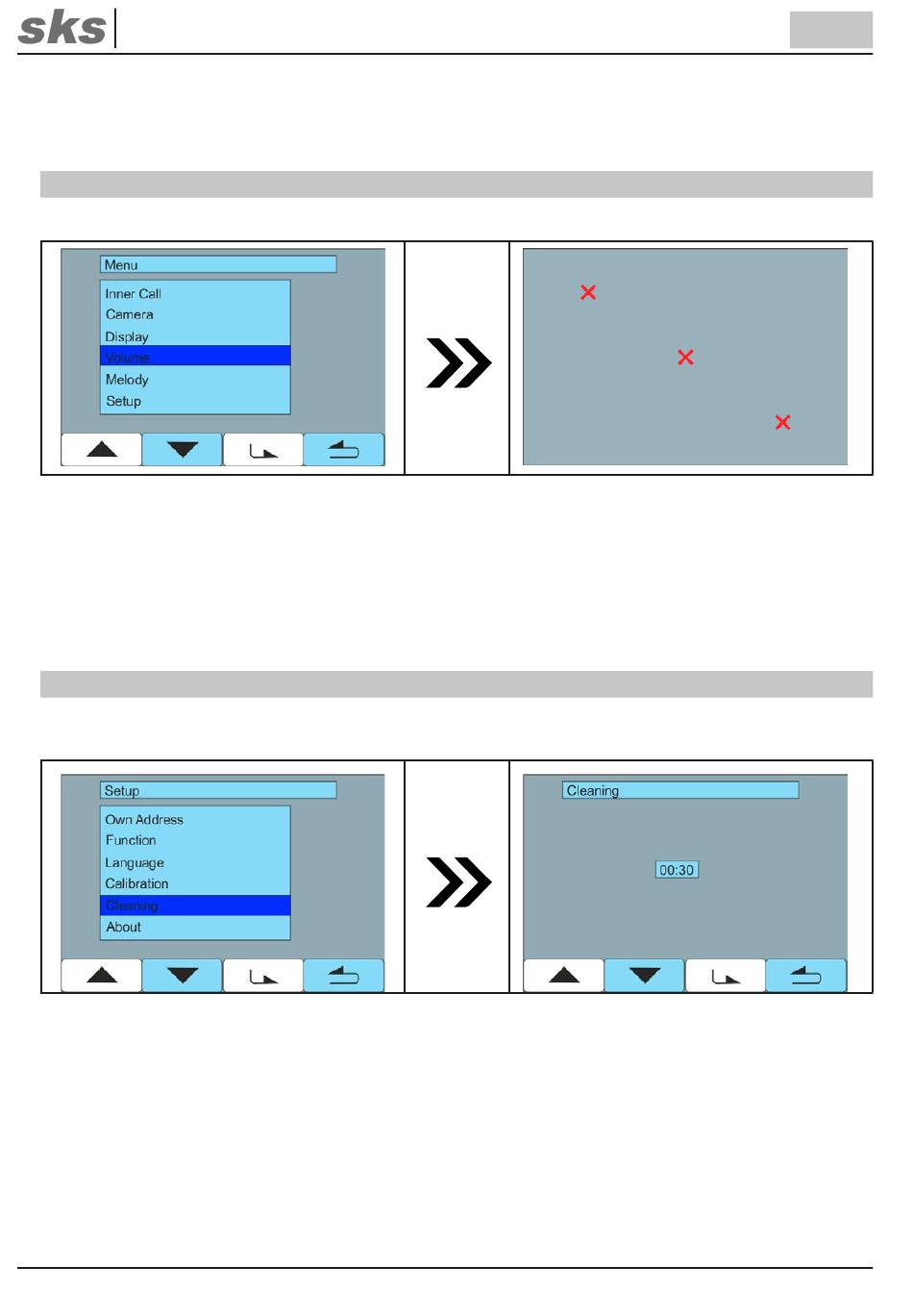

Calibration

Under Calibration the touch screen can be calibrated in case it does no longer react reliably to touch any more.
To do so choose the menu point Calibration using the arrow keys. On the touch screen three red crosses appear from
top left to the bottom right which have to be tapped one by one (at best with a blunt and thin object such as a pen) to
recalibrate the device. After calibrating the word OK on the screen confirms that the calibration has been completed
successfully. If the calibration was faulty you will hear a double signal and the calibration starts anew.
Tap the touch screen again to leave the calibrating mode and get back to the menu.
By pushing the back key you can leave the menu or get back to the last menu.
9.5

Cleaning

The menu point Cleaning allows to deactivate the touch screen for 30 seconds, so that the screen may be cleaned
with a soft cloth without accidentally changing the setup.
Choose the menu point Cleaning using the arrow keys, then hit the enter key. The touch screen is disabled for 30
seconds, an operation is not possible during this time.
After the 30 seconds have expired the touch screen switches off automatically. To reactivate it, tap it. Tap it a second
time to open the main menu.
Support Hotline: +49 (0) 2661 98088-112
Support E-Mail: support@sks-kinkel.de
38
EN
Version No. 2.0
Document No. 97013201
