1. POWER BUTTON
Use this button to turn the unit on and off. If the unit is not being used for a prolonged period of
time, please also remove the AC plug from the power socket.
2. CASSETTE HOLDER
Insert your cassette into either of these two holders. The holders may be opened by pressing the
corresponding [STOP/EJECT] button (13). Please note that both decks can be used for playback
but only deck B can be used for recording/dubbing.
3. DISPLAY
The display will help you keep track of audio levels and the features which have been engaged.
PEAK LEVEL INDICATOR – The meters indicate the audio level during recording and playback.

REC – lights when deck B is recording or in record-pause mode

HI SP DUB – lights when high-speed dubbing mode is engaged

LAY Cr02 – lights when Play Cr02 function is engaged

REC Cr02 – lights when Rec Cr02 function is engaged

4. TAPE COUNTER AND [RESET] BUTTON
The tape counter indicates the tape position when playing or recording tapes (deck B only). To
reset the counter, press
5. REC LEVEL KNOB
Use this knob to adjust the recording level when recording external sources to deck B.
6. [PLAY Cr02] BUTTON
This feature should be set depending on the kind of tape you are playing. When using normal
tapes, this feature should
tapes, these features should be turned on ("PLAY Cr02" is lit on the display).
7. [DUBBING] BUTTON
Press this button if you would like to dub a tape from deck A to a tape in deck B ("DUBBING" will
light on the display).
8. [HI SPEED DUBBING] BUTTON
Press this button to enable high-speed dubbing ("HIGH SPEED" will light on the display). Press
again to disable high-speed dubbing.
9. REC Cr02 BUTTON
Turn this feature on when recording to a Cr02 tape on deck B ("REC Cr02" is lit on the display).
10. [PLAY]
Press to play the tape on the corresponding deck.
11. [REWIND]
Press to rewind the tape on the corresponding deck.
12. [FAST FORWARD]
Press to fast forward the tape on the corresponding deck.

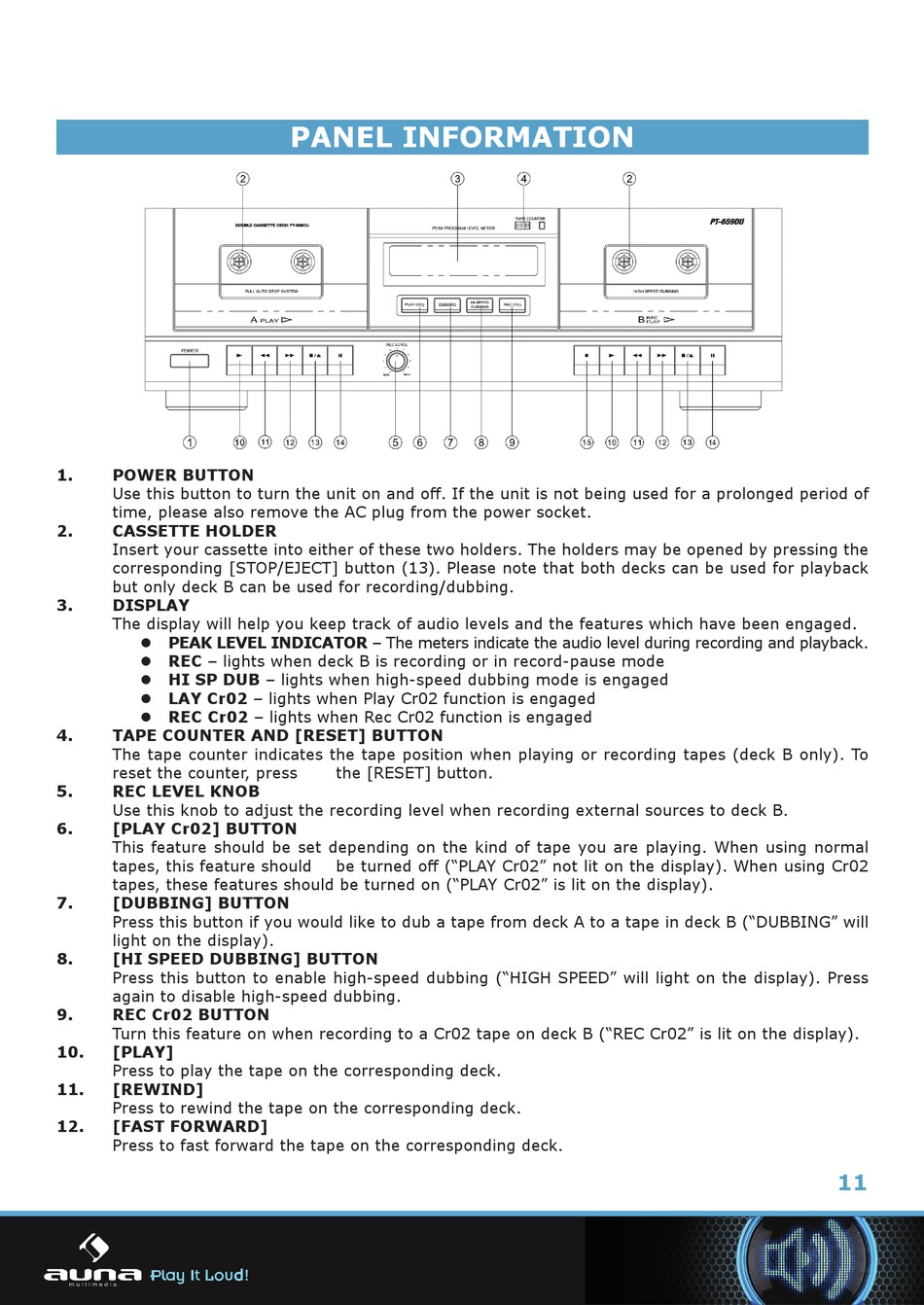

PANEL INFORMATION
the [RESET] button.
be turned off ("PLAY Cr02" not lit on the display). When using Cr02
