How to connect the HDMI 4 port Splitter to your devices
1. Connect the HDMI cable from the HDTV source to the Splitter input.
2. Connect the cables from your displays (monitor or projector) into the HDMI outputs
of the Splitter.
3. The resolution of outputs of Splitter is confi gured by the resolution of device that
connected to the last output port. (i.e. The last output port is port 4, the resolution of
the device connected to port 4 is 720 P, the resolution of all the Splitter output ports
will be set to 720 P).
4. Plug the 12 VDC power supply into the Splitter.
5. Power on the power switch.
6. When connections are completed, the HDTV signal will be distributed to each
HDTV display.
7. For the best performance, when you disconnect the HDMI cable, you should re-
start the Splitter power. Make sure the Splitter is working well in HDCP between
DVD player and display devices.

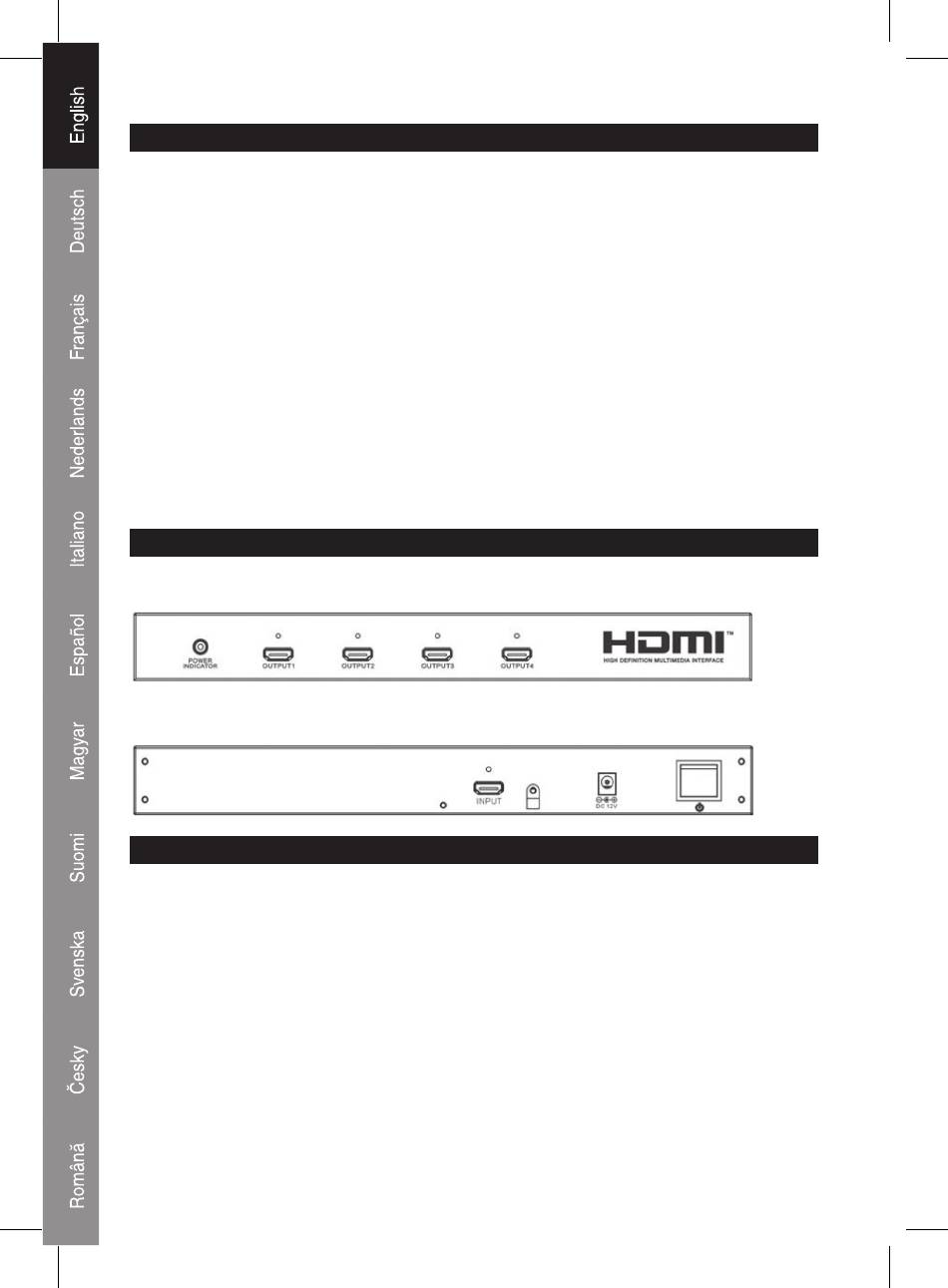

Front Panel
Rear Panel
The Splitter will distribute one resolution only at one time. Resolution mode will
depend on that of the fi rst in or the fi rst of the sequent display devices. Make sure
your display devices are HDCP compliant and fully support HDCP.

CONNECTING AND OPERATION

ILLUSTRATION
ATTENTIONS
