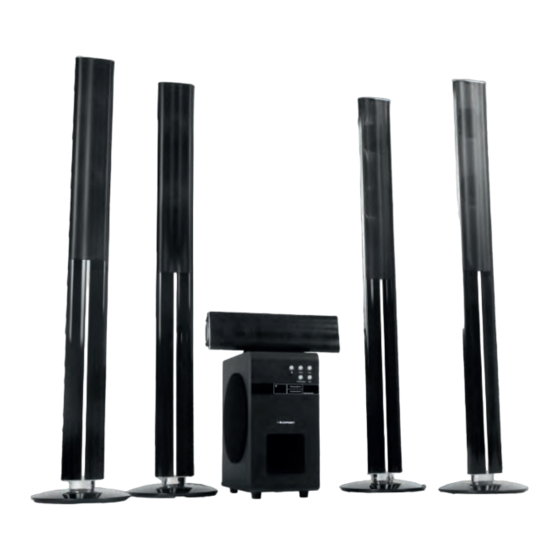

5.1 heimkinosystem mit funk - rücklautsprechern
Vorschau ausblenden

Werbung

Quicklinks

Diese Anleitung herunterladen
5.1 Heimkinosystem mit Funk -
Rücklautsprechern
LS 255

Werbung

loading

Verwandte Anleitungen für Blaupunkt LS 255

Inhaltszusammenfassung für Blaupunkt LS 255

  • Seite 1 5.1 Heimkinosystem mit Funk - Rücklautsprechern LS 255...
  • Seite 2 LS 255...
  • Seite 3 LS 255...
  • Seite 4 LS 255...
  • Seite 5 LS 255...
  • Seite 6 LS 255...
  • Seite 7 LS 255...
  • Seite 8 LS 255...
  • Seite 9 LS 255...
  • Seite 10 LS 255...
  • Seite 11 LS 255...
  • Seite 12 LS 255 Virtua12.1ch Virtua15.1ch Volume Level...
  • Seite 13 LS 255...
  • Seite 14 LS 255 POWER AC230V 50Hz Wireless-Rear Speaker...
  • Seite 15 LS 255...
  • Seite 16 LS 255 6CH (5.1CH)
  • Seite 17 LS 255...
  • Seite 18 LS 255...
  • Seite 19 LS 255...
  • Seite 20 LS 255...
  • Seite 21 LS 255...
  • Seite 22 LS 255...
  • Seite 23 LS 255...
  • Seite 24 LS 255...
  • Seite 25 LS 255...
  • Seite 26 LS 255...
  • Seite 27 LS 255...
  • Seite 28 LS 255...
  • Seite 29 LS 255...
  • Seite 30 LS 255...
  • Seite 31 LS 255...
  • Seite 32 LS 255...
  • Seite 33 LS 255...
  • Seite 34 LS 255...

  • Seite 35: Safety Instructions

    Brand name: Blaupunkt Responsible party: M3 Electronic GmbH Gutenbergstrasse 5, D-65830 Kriftel. Germany Hereby, Blaupunkt Competence Center Audio M3 Electronic GmbH, declares that this Class 1 equipment is in compliance with the essential requirement and other relevant provisions of Directive 1999/5/EC.
  • Seite 36 LS 255 12. ESD WARNING – the display does not function properly or not reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds. 13. DAMAGE REQUIRING SERVICE – the appliance should be serviced by qualified service personal when: a.
  • Seite 37 LS 255 26. Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation. 27. The ventilation should not be impeded by covering the ventilation opening with items such as newspapers, table-cloths, curtains, etc. 28. The batteries should be drawn to the environmental aspects of batter y disposal.

  • Seite 38: Front Panel - Controls And Functions

    LS 255 Front panel - controls and functions Virtua12.1ch Virtua15.1ch Volume Level INPUT: Input source select button. 2. MUTE: Mute function button. 3. MODE: 5.1ch & 2.1ch mode select button. 4. 2.1ch.: 2.1Channel Input Indicator. 5. Remote Sensor. 6. 5.1ch.: 5.1 Channel Input Indicator.

  • Seite 39: Rear Panel - Controls And Functions

    LS 255 Rear panel - controls and functions POWER AC230V 50Hz Wireless-Rear Speaker 10. Analog 5.1ch input jack for FR/FL/SR/SL/CEN/SW connection. 11. Coaxial 1 input jack. 12. Optical input jack. 13. Coaxial 2 input jack. 14. Speaker output jack. FR: for Front Right Speaker connection.
  • Seite 40 LS 255 Operating instruction - controls and functions 18. INPUT: Input Source Selection Button. Recycle selection will be: 6CH (5.1CH) 19. CEN +: increase the volume for Center Speaker. 20. FRONT +: increase the volume for Front Speaker. 21. FRONT -: decrease the volume for Front Speaker.
  • Seite 41 LS 255 Operating instruction - controls and functions 1. Before using the remote controller, please insert correct type of batteries into the battery compartment. 2. The remote controller uses 2x1.5V/AAA batteries. 3. Please insert the batteries indicated as below. a. Push and open the battery compartment cover.
  • Seite 42 LS 255 System connection instructions Sub Woofer/DVD Player/TV Analogue audio connect to Connect to DVD player Coaxial cable Optical cable...
  • Seite 43 LS 255 System connection instructions Using the speaker cable connect FL/FR/CEN speaker with subwoofer as below. Front right speaker Front left speaker Note: Be sure to match the speaker cable to the appropriate jacks on components: "White" to "Red", and "Black" to "Black".
  • Seite 44 LS 255 Speaker Assembly Drawing Tower speaker Chassis Spacer Screws...
  • Seite 45 LS 255 Operating instruction A. Switch On/Off and pairing the product 1. Before turning on the system, please connect it according to the System Connection Instruction. 2. Connect AC power supply with this product. (Caution: Power source must be consistent with this product.) 3.
  • Seite 46 LS 255 H. 5.1 Channels Input 1. Connect the system properly. When you have 5.1ch audio input connected, it will be 5.1ch audio output. Meanwhile, when you have connected AUX(2.0ch), Opt, Coa1, Coa2 input, you can optional select play in 5.1ch & 2.1ch output.
  • Seite 47 LS 255 5. No sound from rear speaker (1) Check whether the system is connected correctly with the Rear speaker. (2) Check whether the system is connected correctly with the audio source. (3) Check whether 2.1ch is selected as audio output.
  • Seite 48 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All rights reserved by Blaupunkt Competence Center Audio M3 Electronic GmbH. This material may be reproduced, copied or distributed for personal use only.
