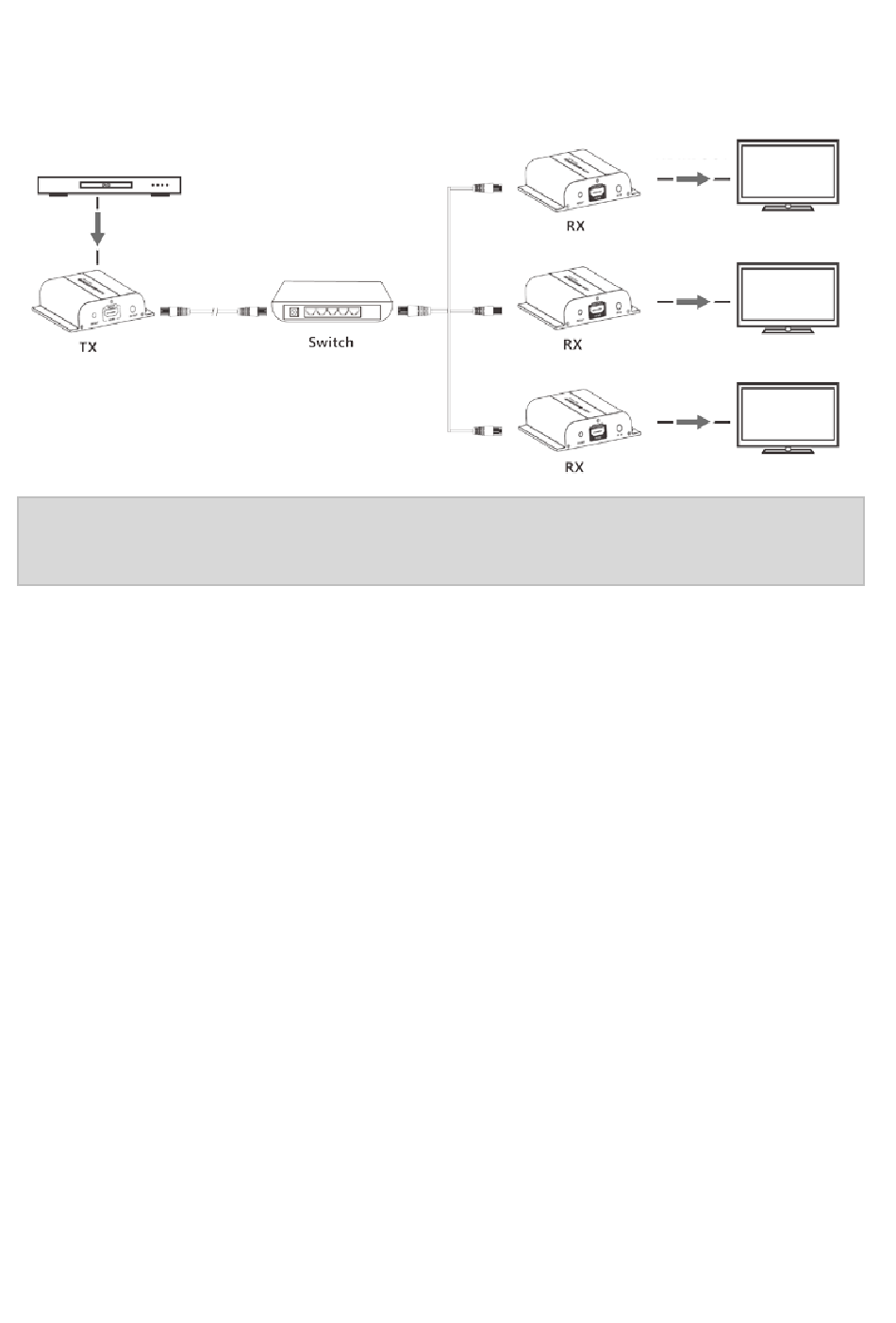

1.3 CONNECT VIA NETWORK – MULTICASTING (DISTRIBUTION). All receivers will display the
same image and audio. The maximum number of receivers is 253.
NOTE: Multicasting uses more bandwidth. Vision recommends using a standalone Gigabit
switch. It can be an unmanaged switch since IGMP snooping DOES NOT need to be activated.
DHCP
A DHCP switch assigns IP addresses to each end point, otherwise the end points default to
192.168.1.238 (Tx) or 239 (Rx).
MULTIPLE TRANSMITTERS
Only ONE transmitter can be used on a network. Setting up a virtual LAN allows you to use
more than one transmitter on a physical network. The systems are kept separate and cannot be
used as a matrix.
If more than one transmitter / receiver sets share same network create a Virtual LAN on the
for each
network switch
Example:
Connect 15 transmitters to ports 1-15
•
Connect 15 receivers to ports 16-30
•
• Create VLAN_1 and assign ports 1 and 16
• Create VLAN_2 and assign ports 2 and 17 etc...
transmitter and receiver set.
