OVERVIEW
This product converts HDMI signal into native ethernet signal and allows the signal to be routed
through a normal local area network. It extends image and audio.

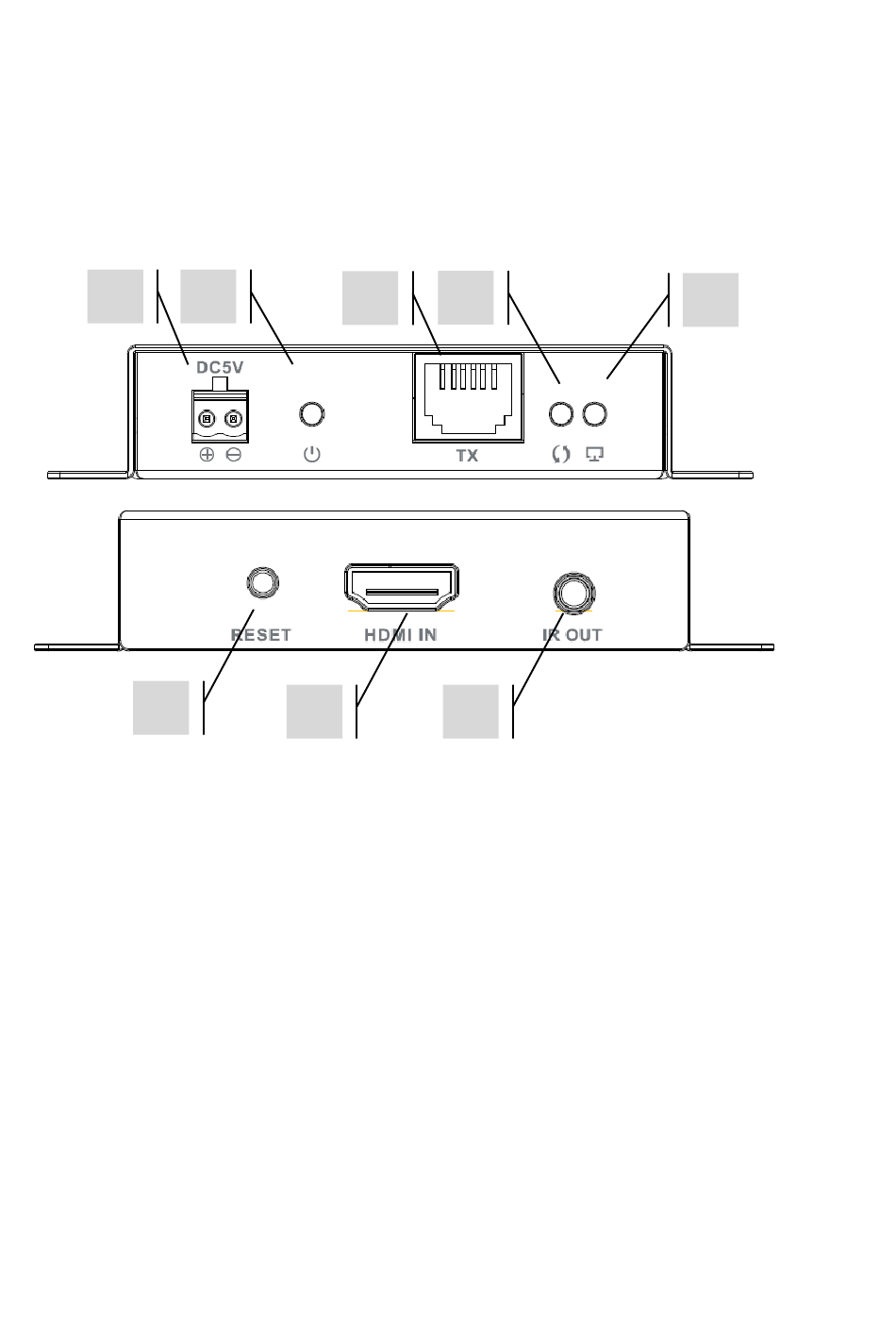

TRANSMITTER
1
6
1. 5V 2A Power input
2. Power LED (requires external power supplies at both ends, does not work with PoE)
3. CAT5e/6 Output
4. Data Transmission LED
5. Link LED (if this is not lighting check ethernet cable)
6. Reset Button
7. HDMI Input from source
8. IR blaster 3.5mm Minijack socket
2
3
7
4
8
5
