INSTALLATION

The transmitters and receivers are plug and play. Diagnosis is done via the status lights on the
devices. There is no online device management with this product.

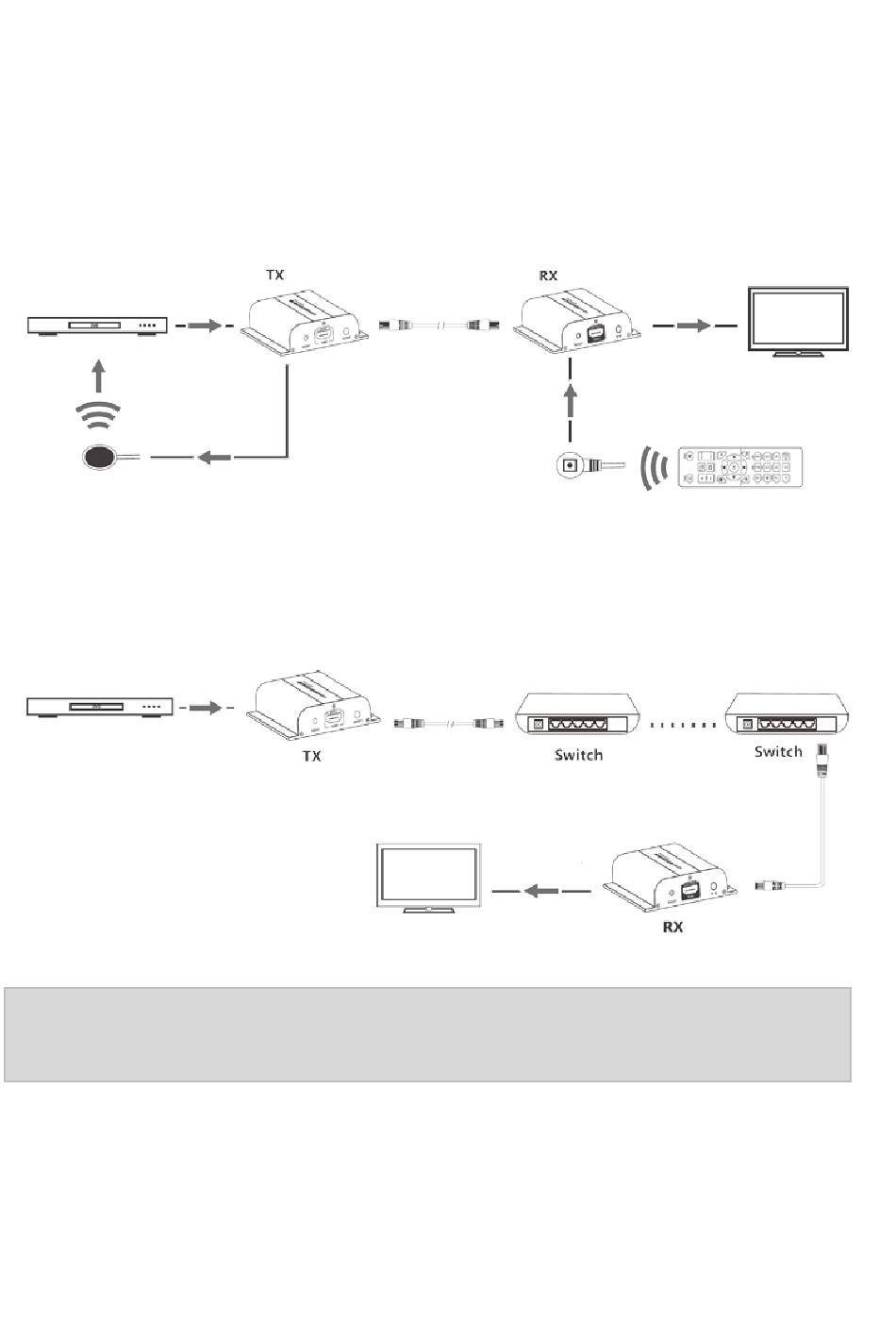

1.1 CONNECT DIRECTLY. Use CAT6 cable up to 120 metres (394 ft) long. With very high quality
cable 150 m (492 ft) is possible.
1.2 CONNECT VIA NETWORK. By routing via the network there is no cable length limitation as
the signal is repeated at every node.
NOTES: All items must be on same subnet. Microwave transmitters typically do not provide
enough bandwidth for this product. 18Mbps per receiver required.
