AXIS 209FD/AXIS 209FD-R Installation Guide

Install the hardware

!
IMPORTANT! - The casing of the AXIS 209FD is not approved for outdoor use
and may only be installed in indoor environments.
The AXIS 209FD-R is ruggedized and can be used in damp environments.

Mount the camera

The AXIS 209FD/AXIS 209FD-R can be mounted with the cable routed through the ceiling
or from the side.
The AXIS 209FD is supplied with a
standard RJ-45 female network
connector, on a 2 meter cable.
The AXIS 209FD-R is supplied with a
29mm female RJ-45 network connector
on a 0.5 meter cable. To protect the
cabling against moisture this connecter
must be connected to a suitable 29mm
male connector.

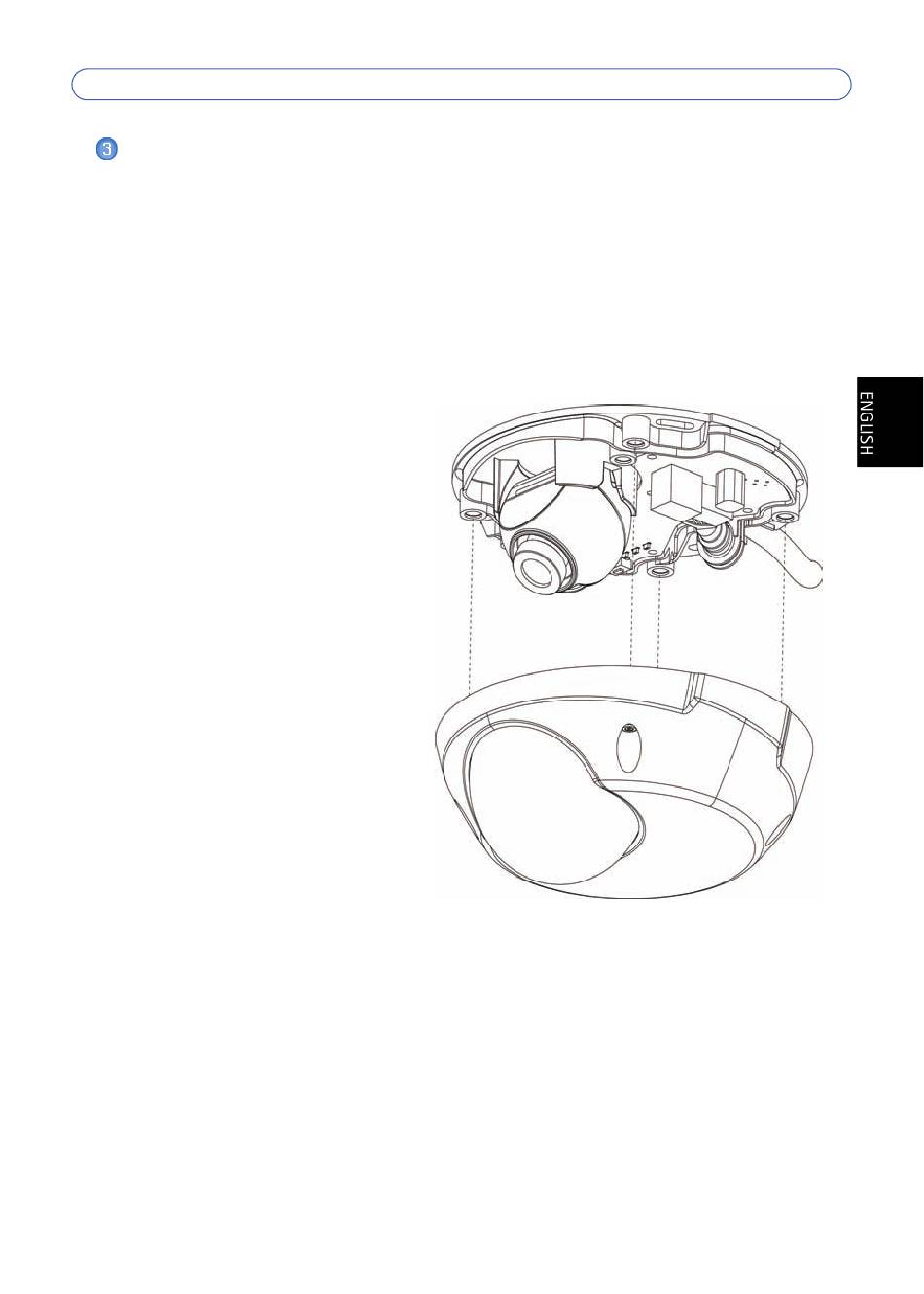

1. Using the supplied allen/hex key,
loosen the 4 screws holding the
cover and remove it.
2. Use the base plate to mark out the
positions for the mounting screws.
3. To route the cable through a ceiling
or wall, cut or drill the hole for the
cable and connector.
For the AXIS 209FD - cut a 17mm
hole.
For the AXIS 209FD-R - cut a 30mm
hole.
-or-
For a surface mounted cable, cut out the cable exit hole at the rear of the cover
