INTRODUCTION

PROFESSIONAL FOG MACHINE
CLIF1700PRO
CONTROL FUNCTIONS
3-channel DMX control
Stand Alone mode
PROPERTIES
Professional fog machine. DMX-512 control. 3-pin and 5-pin XLR connector. Overheat protection. FLYKIT optionally available. Operating
voltage: 230V AC / 50-60Hz Power consumption: 1800W.

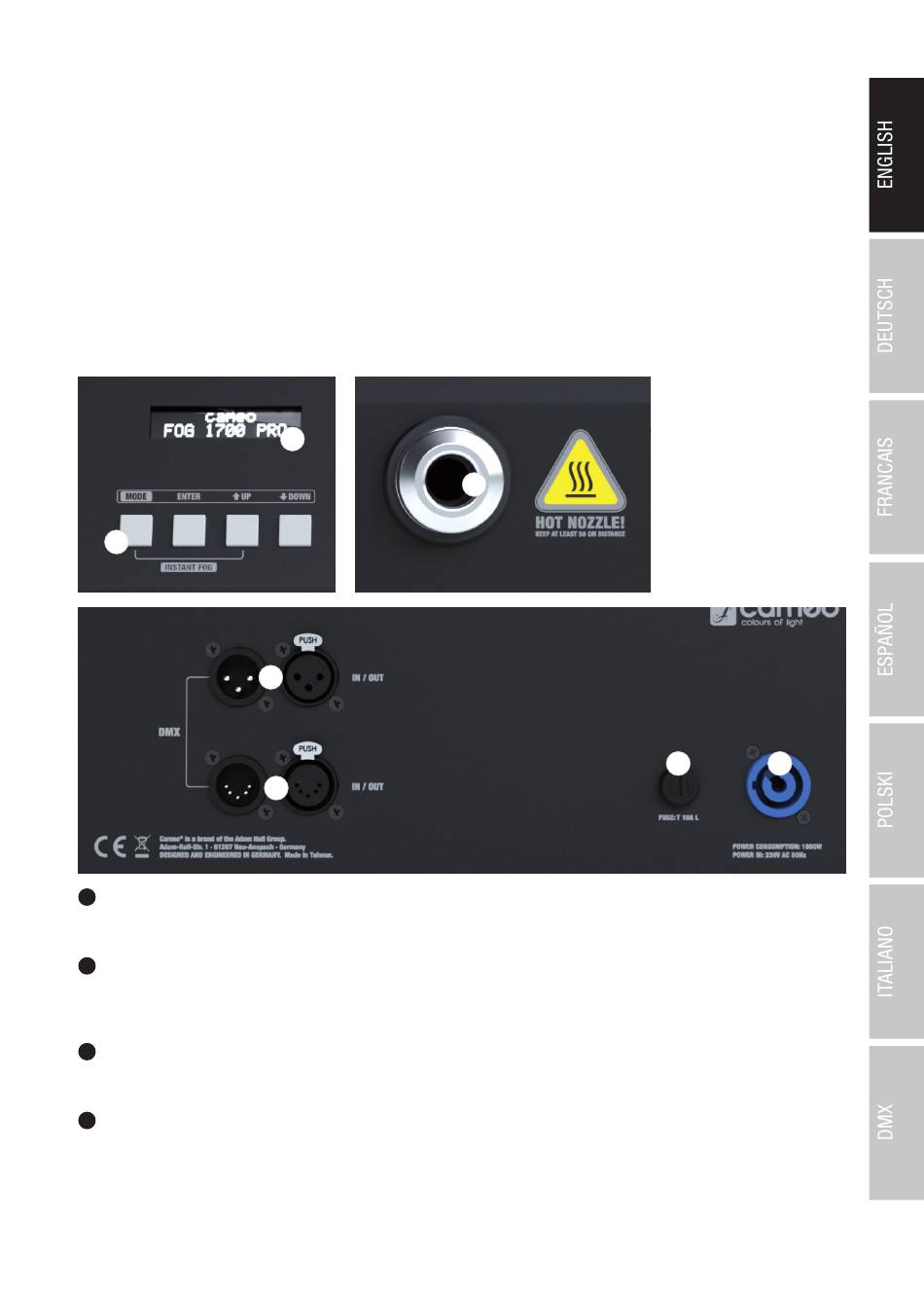

CONNECTIONS, CONTROL AND DISPLAY ELEMENTS

6
1
POWER IN
Power Twist power outlet to provide power to the device, a suitable power cable is included in delivery.
2
FUSE
Fuse holder for 5 x 20 mm micro fuses. IMPORTANT INFO: Replace the fuse only with a fuse of the same type and values (see inscription on
housing). If the fuse trips repeatedly, please contact an authorized service center.
3
DMX IN / OUT 3-PIN XLR
Male 3-pin connector to connect a DMX controller and a female 3-pin XLR connector to transmit the DMX control signal.
4
DMX IN / OUT 5-PIN XLR
Male 5-pin connector to connect a DMX controller and a female 5-pin XLR connector to transmit the DMX control signal.
5
3
4
7
2 1
5
