OPERATION

1
3 2
4
5 14
1 3
6 7
13
Info
12
Reset
11
8 10
On
9
Off

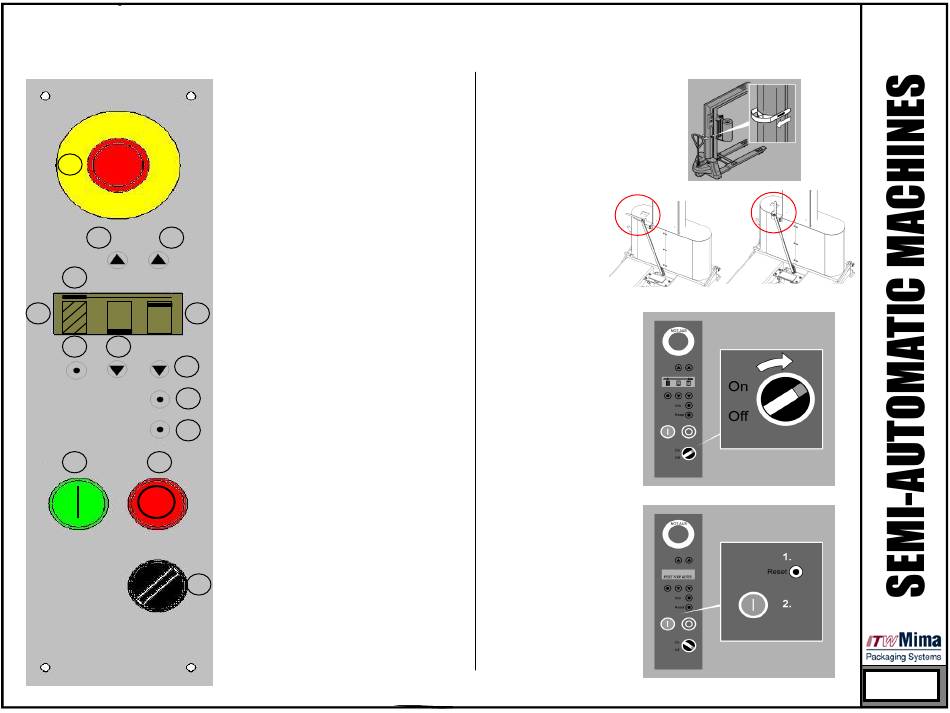

2.1 Control panel

1. Emergency stop
2. Plus Top wrapping layers, overlapping
adjustment (much, medium, less)and
selection of language
3. Plus bottom wrappings
4. Battery charging status
5. Wrapping mode display
6. Wrapping mode selector button
7. Minus bottom wrappings
8. START button
9. Main power switch
10. STOP button
11. RESET button
12. Info button (Menu items)
13. Minus Top wrapping
layers,overlapping adjustment
medium, less) and selection of language
14. Wrapping layers display

2.2 Preparations

1. Open the arm
locking device
(Locking system may
vary between
machine types)
2. Turn main switch to
its ON position
3. Push the reset
button (1.)to move
(much,
machine to its home
position.
PL-locked PL-unlocked
