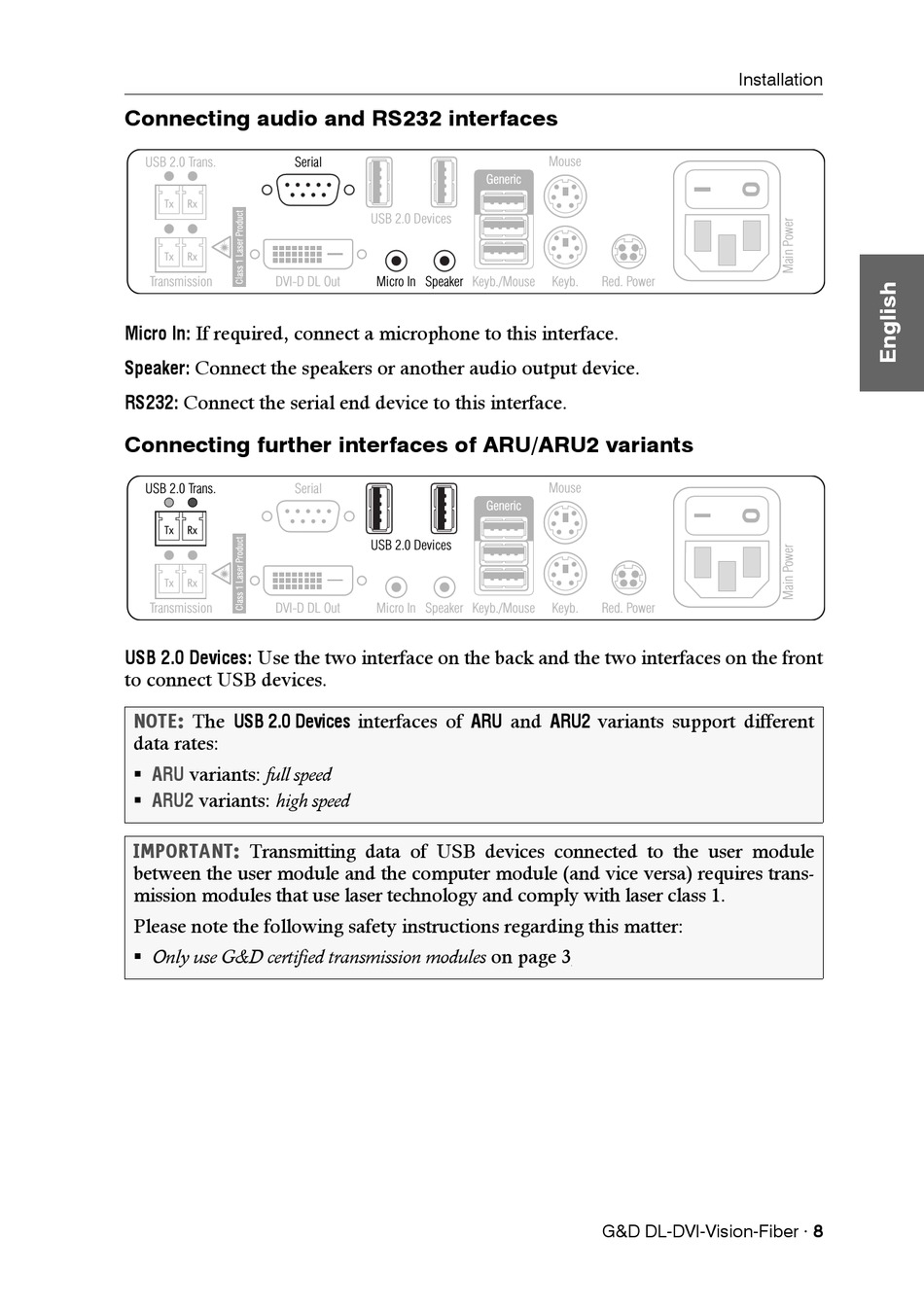

Connecting audio and RS232 interfaces
USB 2.0 Trans. Serial
Transmission DVI-D DL Out
Micro In: If required, connect a microphone to this interface.
Connect the speakers or another audio output device.
Speaker:
RS232: Connect the serial end device to this interface.
Connecting further interfaces of ARU/ARU2 variants
USB 2.0 Trans. Serial
Transmission DVI-D DL Out
USB 2.0 Devices: Use the two interface on the back and the two interfaces on the front
to connect USB devices.
NOTE: The USB 2.0 Devices
data rates:
variants: full speed
 ARU
variants: high speed
 ARU2
IMPORTANT:
Transmitting data of USB devices connected to the user module
between the user module and the computer module (and vice versa) requires trans-
mission modules that use laser technology and comply with laser class 1.
Please note the following safety instructions regarding this matter:
 Only use G&D certified transmission modules on page 3
Generic
USB 2.0 Devices
Micro In Speaker Keyb./Mouse
Generic
USB 2.0 Devices
Micro In Speaker Keyb./Mouse
interfaces of ARU and
Mouse
Keyb. Red. Power
Mouse
Keyb. Red. Power
ARU2 variants support different
G&D DL-DVI-Vision-Fiber · 8
Installation
