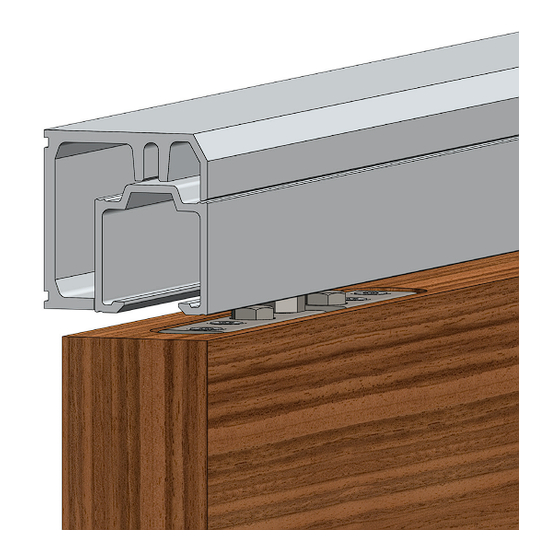

Montageanleitung Installation instructions MODUL.KONZEPT 80 Montageschiene für minimale Einbauhöhe HELM 73 für Holztüren bis 80 kg Flügelgewicht MODULAR.CONCEPT 80 Projection track for low headroom installation HELM 73 for timber doors up to 80 kg leaf weight MA: DS020662/04.2015...
Seite 2
Montageschiene MODUL.KONZEPT 80 / Projection track MODULAR.CONCEPT 80 HELM 73 Größe 2, 3 / Size 2, 3 M 5 x 10 Ø 10 x Ø 5,2 x 1 HELM Montageschiene / HELM Projection track HELM Fangstopper 65 P / HELM Door catcher 65 P...
Seite 3
Montageschiene MODUL.KONZEPT 80 / Projection track MODULAR.CONCEPT 80 HELM 73 Bei Verwendung mit HELM Fangstopper 65 P For use with HELM door catcher 65 P Bei Verwendung mit HELM SmartStop 73 For use with HELM SmartStop 73 DS020662/04.2015...
