Owner's manual
Outdoor/indoor antenna for digital terrestrial DvB-t2 tv
INTroDUcTIoN:
this is an antenna for digital terrestrial tv broadcasting reception. It is the best
solution for home reception and digital portable tv reception. this is an active
antenna that can be used with tv or Set-top-box which can be powered by coaxial
cable or external power adaptor. Complete accessories are included for wall or
pole mounting. With the anti-Uv and water proof housing, it can be used both
indoor and outdoor.
TEchNIcaL DaTE:
• Frequency range: vHF: 87,5-230 MHz; UHF: 470-790 MHz
• Gain: 28 dB
• Max. output level: 100 dBµv
• Impedance: 75 Ω
• Noise factor: ≤3 dB
• Connector: F connector
• Receiving range: FM/vHF/UHF
• Power supply: by Dtv set-top box (DC 5 v, 40 mA) or via AC/DC adapter (DC
12 v, 50 mA)

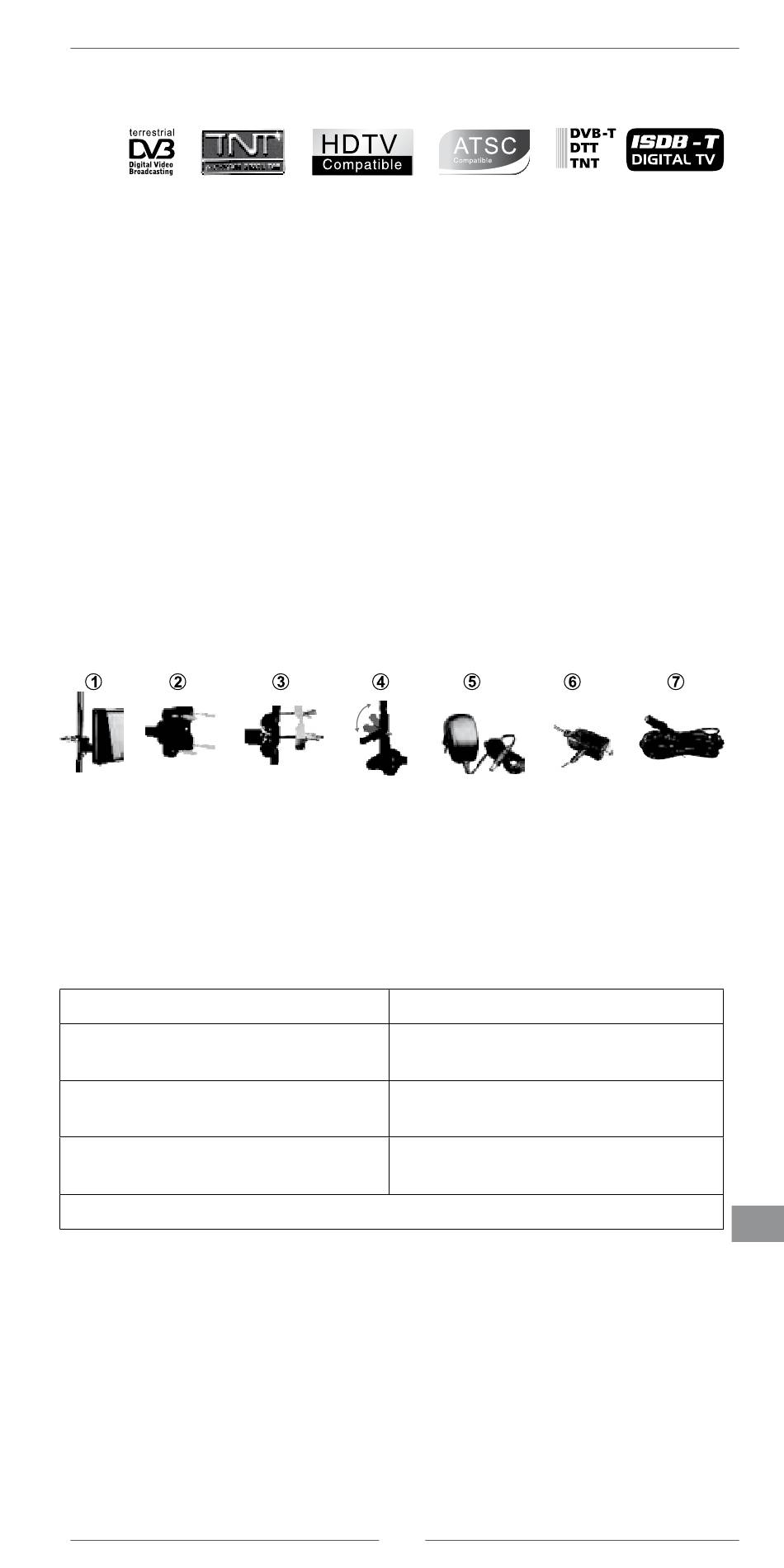

INcLUDED IN PackaGE:
Before start your installation, please check the contents.
1.
Antenna main unit
2.
Wall mounting accessories
3.
Pole mounting accessories
4.
Support indoor use
5.
AC/DC power adaptor
6.
DC power insert
7.
Coaxial cable
ProDUcT fEaTUrEs:
SMD circuit technology design
Shielded for minimum interference
Portable for mobile use (camping,
boating, etc)
Powered by Dtv set-top box or
included separate power adapter.
Built-in LTE filter
oPEraTIoN INsTrUcTIoN:
Note: For the best reception, please check the following conditions
1.
Keep the antenna away from the sources of interference: keep the antenna
away from those big power consumption devices, such as air conditioner,
elevator, hair dryer and microwave oven...ect.
2.
Place the antenna near windows when use the antenna in indoor environment.
3.
Install the antenna as high as possible: in digital terrestrial reception, if there
are some interceptions between antenna and transmission tower, it will
cause the signal loss temporary. So if the antenna is installed as high as
possible, those interceptions will be reduced.
Amplified version
Stylish and compact size design
Built-in high gain and low noise
amplifier
Anti-Uv coating and waterproof
design for durability
Compatible with DvB-t2, ISDB-t,
DMB-t/H, AtSC and DAB radios
