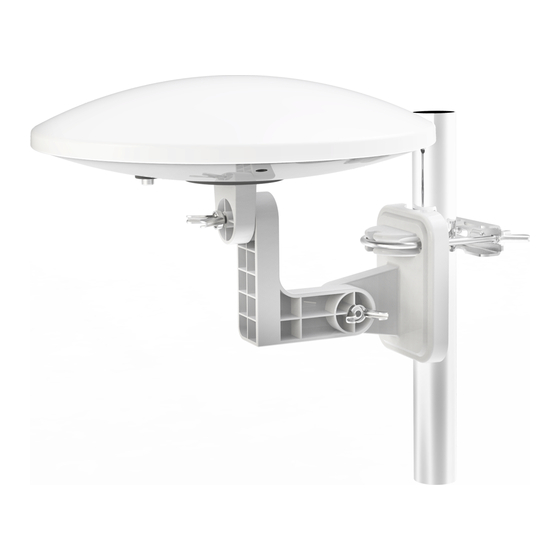

Bedienungsanleitung EINLEITUNG Omnidirektionale Außenantenne für digitales terrestrisches DVB-T TV ist eine speziell entwickelte Antenne für den Empfang von digitalem terrestrischem DVB-T TV. Es ist eine aktive Antenne, die an ein TV-Gerät oder eine DVB-T TV Set Top-Box angeschlossen werden kann. Das Set beinhaltet einen kompletten Montagesatz.
Bedienungsanleitung MONTAGE Die Antenne kann sowohl im Innen- als auch im Außenbereich verwendet werden. Verwenden mitgelieferten Montagezubehör die Antenne an einer Wand oder einem Mast zu befestigen. Benutzen Sie die Schrauben und Wandmontage-Zubehör um die Antenne an einer Wand zu befestigen. Befestigen an einem Balkon.
Seite 5
Bedienungsanleitung Verbinden Sie das Koaxialkabel mit der Antenne und bedecken den Stecker mit der Wasser-Schutzkappe. 1. F-Typ Stecker 2. Kabel 3. Wasserschutzkappe Montage: • Montage 1: Direkte Verbindung mit dem TV AC230V/110V AC230V/110V AC230V/110V • Montage 2: Verbindung über DVB-T TV Set Top box AC230V/110V AC230V/110V AC230V/110V...
Bedienungsanleitung Wenn Sie diese im Innenbereich verwenden, platzieren Sie die Antenne in der Nähe eines Fensters. Montieren Sie die Antenne so hoch wie möglich: Je höher die Antenne montiert wird, desto besser ist das Signal (geringere Störung). 360º Omnidirektionaler Signalempfang TEchNIschE DATEN: •...
Seite 7
Bedienungsanleitung Hiermit erklär die Firma lecHPOl electrOnics sp. z o.o. sp.k. dass sich das gerät Omnidirektionale außenantenne für digitales terrestrisches dVB-t tV ant0559 im einklang mit den Bestimmungen der richtlinie 2014/53/ue befindet. komplette konformitätserklärung zum herunterladen auf www.lechpol.eu. Deutsch Korrekte Entsorgung dieses Produkts (Elektromüll)
Owner’s manual INTRODUcTION Omni-directional outdoor antenna for digital terrestrial DVB-T TV is a specially designed antenna for reception of digital terrestrial DVB-T TV. It's an active antenna, which can be connected to TV set or DVB-T TV set top box. The set includes complete mounting kit.
Seite 9
Owner’s manual MOUNTING The antenna can be used indoor as well as outdoor. Use the included mounting accessories to install the antenna on a wall or a pole. Use the screws and wall mounting accessories to fix the antenna on the wall. Mounting on a balcony Mounting on a pole Available for mobile use...
Seite 10
Owner’s manual Connect the coaxial cable to antenna covering the plug with water resistant cap. 1. F-type connector 2. Cable 3. Water resistant cap Mounting: • Mounting 1: Direct connection to TV AC230V/110V AC230V/110V AC230V/110V • Mounting 2: Connection via DVB-T TV set top box AC230V/110V AC230V/110V AC230V/110V...
Owner’s manual Mount the antenna as high as possible: the higher the antenna will be mounted, the signal will be better (lower interference). 360º omni-directional signal reception sPEcIFIcATION • Frequency range: VHF 47-230 MHz, UHF 470-862 MHz • Receiving frequencies: FM / VHF / UHF •...
Seite 12
Owner’s manual lechpol electronics sp. z o.o. sp.k. hereby declares that Omni-directional outdoor antenna for digital terrestrial dVB-t tV ant0559 is consistent with directive 2014/53/ue. Full text of the eu declaration of conformity is available at following internet address: www.
instrukcja OBsługi WPROWADZENIE Antena zewnętrzna dookolna do cyfrowej telewizji naziemnej DVB-T to specjalnie zaprojektowana antena do odbioru naziemnej telewizji cyfrowej DVB-T. Jest to aktywna antena, którą możemy podłączyć do naszego telewizora lub tunera DVB-T. Do anteny został dołączony kompletny zestaw mocowań. Dzięki wodoodpornej obudowie, która jest również odporna na promienie UV, antena jest przystosowana do użytku zarówno wewnątrz jak i na zewnątrz pomieszczeń. cEchY PRODUKTU • Wodoodporna konstrukcja z powłoką odbijającą promienie UV. • Stylowy design i kompaktowa obudowa. • Odbiór sygnału analogowego i cyfrowego. • Wbudowany wzmacniacz niskoszumowy. • Dookolna konstrukcja zapewnia doskonały odbiór sygnału w różnych kierunkach. • Dipolowa konstrukcja zapewniająca znakomity odbiór pasma UHF i VHF.
Seite 14
instrukcja OBsługi MONTAŻ Antena ta może być używana wewnątrz jak i na zewnątrz. Za pomocą dołączonych akcesoriów montażowych, antenę można zamontować na ścianie lub słupie. Montaż anteny na ścianie przy pomocy wkrętów i akcesoriów montażowych. Montaż anteny na balkonie. Montaż anteny na słupie. Zastosowania mobilne.
Seite 15
instrukcja OBsługi Podłącz kabel coaxial do anteny zakrywając wtyczkę wodoszczelną pokrywą. 1. Złączka F 2. Kabel 3. Osłona wodoodporna Instalacja: • Instalacja 1: Bezpośrednie podłączenie do TV AC230V/110V AC230V/110V AC230V/110V • Instalacja 2: Podłączenie poprzez tuner DVB-T AC230V/110V AC230V/110V AC230V/110V Tuner DVB-T Tuner DVB-T Tuner DVB-T Tuner DVB-T Uwaga: Po zakończeniu montażu anteny ustaw ją do najlepszej pozycji odbierania sygnału, a następnie dokręć na sztywno jej uchwyt mocujący. Dla lepszego odbioru należy sprawdzić następujące warunki: Trzymaj antenę z dala od źródeł zakłóceń: nie należy umieszczać...
Seite 16
instrukcja OBsługi Gdy używasz anteny wewnątrz pomieszczenia, ustaw ją w pobliżu okna. Zainstaluj antenę jak najwyżej: im wyżej antena zostanie zainstalowana tym sygnał będzie lepszej jakości (mniejsze zakłócenia). Dookolny odbiór sygnału 360º sPEcYFIKAcjA • Pasmo przenoszenia: VHF 47-230 MHz, UHF 470-862 MHz • Odbierane zakresy: FM / VHF / UHF • Zysk: maks. 30 dB • Maks. poziom wyjściowy: 105 dBµV •...
Seite 17
OBsługi lechpol electronics sp. z o.o. sp.k. niniejszym oświadcza, że antena zewnętrzna dookólna do cyfrowej telewizji naziemnej dVB-t ant0559 jest zgodny z dyrektywą 2014/53/ue. Pełny tekst deklaracji zgodności ue jest dostępny pod następującym adresem internetowym: www.lechpol.eu. Poland Prawidłowe usuwanie produktu (zużyty sprzęt elektryczny i elektroniczny)
Seite 18
manual de utilizare INTRODUcERE Antena omidirecțională de exterior pentru semnal digital terestru DVB-T TV a fost special concepută pentru recepția semnalului digital terestru DVB-T TV. Este o antenă activă, care poate fi conectată la TV sau la un dispozitiv DVB-T TV. Setul include instrucțiuni de montare. Datorită rezistenței la apă, anti-UV, antena este potrivită pentru a fi folosită atât în interior cât și în exterior. cARAcTERIsTIcI • Strat cu protecție UV, rezistent la apă • Design elegant și carcasă compactă • Recepție TV analogică și digitală • Amplificator încorporat cu zgomot redus • Caracteristici omidirecționale ce asigură recepții excelente, în direcții diferite •...
Seite 19
manual de utilizare MONTAREA Antena poate fi folosită atât în interior cât și în exterior. Folosiți accesoriile de montare incluse pentru a fixa antena pe perete sau pe un stâlp. Utilizați șuruburile și accesoriile de montare pentru a fixa antena pe perete. Folosiți accesoriile de montare pentru a fixa antena pe grilajul de la balcon. Folosiți accesoriile de montare pentru a fixa antena pe stâlp. Disponibil pentru utilizare mobilă...
Seite 20
manual de utilizare Conectați cablul coaxial la antena care acoperă ștecherul cu un capac impermeabil. 1. Conector de tip-F 2. Cablu 3. Capac impermeabil Montarea: • Montare 1: Conexiune directă la TV AC230V/110V AC230V/110V AC230V/110V • Montare 2: Conexiune prin dispozitiv DVB-T TV AC230V/110V AC230V/110V AC230V/110V Tuner DVB-T Dispozitiv DVB-T TV Tuner DVB-T Tuner DVB-T Notă: După finalizarea instalării, reglați antena în cea mai bună...
Seite 21
manual de utilizare un spațiu închis. Instalați antena cât mai sus posibil:cu cât este instalată mai sus, cu atât semnalul va fi mai bun (mai puține interferențe). Recepționarea semnalului TV omidirecțional 360º SpecificAții: • Domeniu frecvență: VHF 47-230 Mhz, UHF 470-862 Mhz • Frecvențe de recepție: FM / VHF / UHF • Amplificare: max. 30 dB • Nivel maxim de ieșire: 105 dBµV • Impedanță: 75 Ohm • Tip: activ • Alimentare: DC 12 V / 50 mA...
