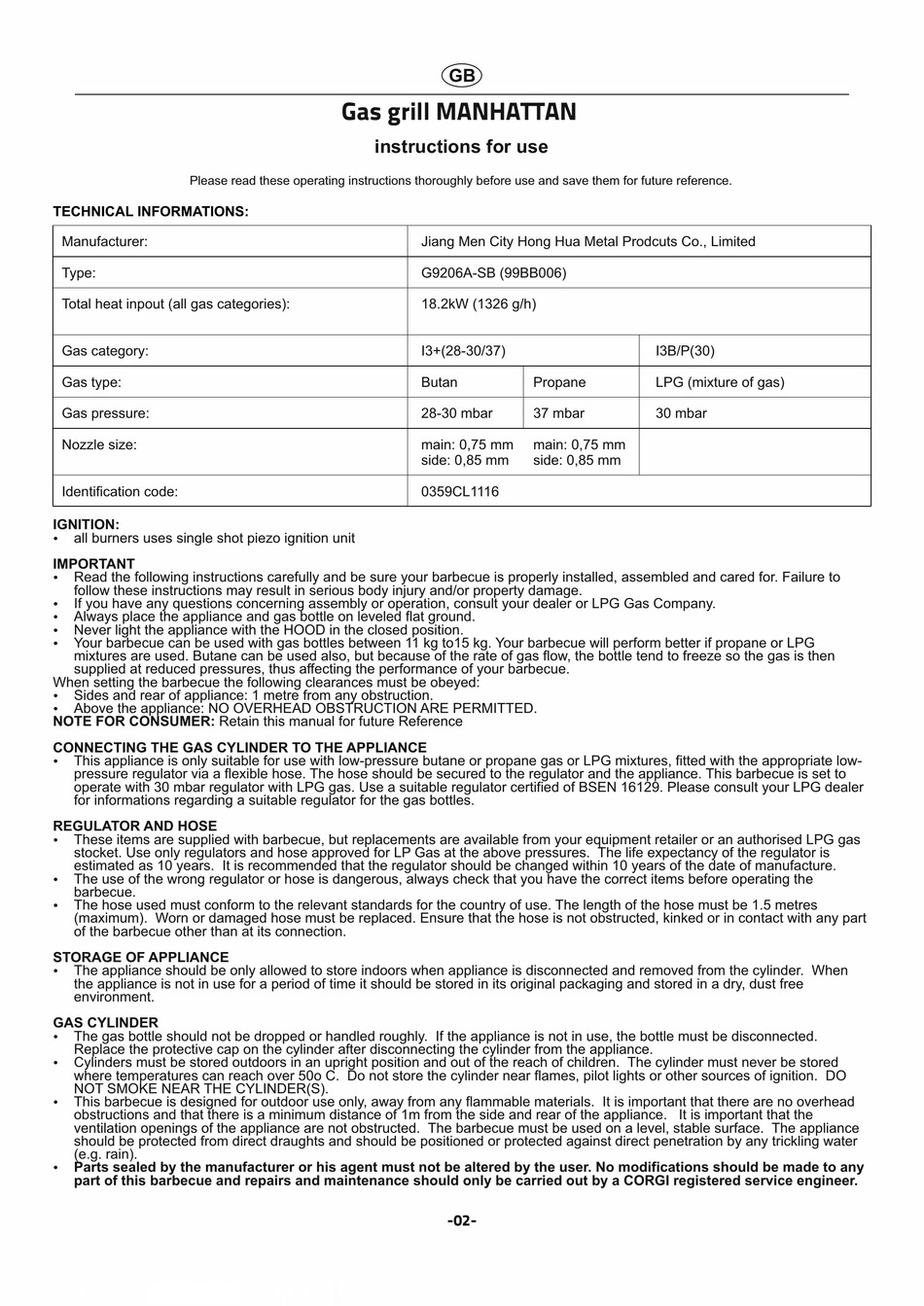

Cattara MANHATAN Bedienungsanleitung Seite 2

Please read these operating instructions thoroughly before use and save them for future reference.
TECHNICAL INFORMATIONS:
Manufacturer:
Type:
Total heat inpout (all gas categories):
Gas category:
Gas type:
Gas pressure:
Nozzle size:
Identification code:
IGNITION:
all burners uses single shot piezo ignition unit
ź
IMPORTANT
Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to
ź
follow these instructions may result in serious body injury and/or property damage.
If you have any questions concerning assembly or operation, consult your dealer or LPG Gas Company.
ź
Always place the appliance and gas bottle on leveled flat ground.
ź
Never light the appliance with the HOOD in the closed position.
ź
Your barbecue can be used with gas bottles between 11 kg to15 kg. Your barbecue will perform better if propane or LPG
ź
mixtures are used. Butane can be used also, but because of the rate of gas flow, the bottle tend to freeze so the gas is then
supplied at reduced pressures, thus affecting the performance of your barbecue.
When setting the barbecue the following clearances must be obeyed:
Sides and rear of appliance: 1 metre from any obstruction.
ź
Above the appliance: NO OVERHEAD OBSTRUCTION ARE PERMITTED.
ź
NOTE FOR CONSUMER: Retain this manual for future Reference
CONNECTING THE GAS CYLINDER TO THE APPLIANCE
This appliance is only suitable for use with low-pressure butane or propane gas or LPG mixtures, fitted with the appropriate low-
ź
pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance. This barbecue is set to
operate with 30 mbar regulator with LPG gas. Use a suitable regulator certified of BSEN 16129. Please consult your LPG dealer
for informations regarding a suitable regulator for the gas bottles.
REGULATOR AND HOSE
These items are supplied with barbecue, but replacements are available from your equipment retailer or an authorised LPG gas
ź
stocket. Use only regulators and hose approved for LP Gas at the above pressures. The life expectancy of the regulator is
estimated as 10 years. It is recommended that the regulator should be changed within 10 years of the date of manufacture.
The use of the wrong regulator or hose is dangerous, always check that you have the correct items before operating the
ź
barbecue.
The hose used must conform to the relevant standards for the country of use. The length of the hose must be 1.5 metres
ź
(maximum). Worn or damaged hose must be replaced. Ensure that the hose is not obstructed, kinked or in contact with any part
of the barbecue other than at its connection.
STORAGE OF APPLIANCE
The appliance should be only allowed to store indoors when appliance is disconnected and removed from the cylinder. When
ź
the appliance is not in use for a period of time it should be stored in its original packaging and stored in a dry, dust free
environment.
GAS CYLINDER
The gas bottle should not be dropped or handled roughly. If the appliance is not in use, the bottle must be disconnected.
ź
Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance.
Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must never be stored
ź
where temperatures can reach over 50o C. Do not store the cylinder near flames, pilot lights or other sources of ignition. DO
NOT SMOKE NEAR THE CYLINDER(S).
This barbecue is designed for outdoor use only, away from any flammable materials. It is important that there are no overhead
ź
obstructions and that there is a minimum distance of 1m from the side and rear of the appliance. It is important that the
ventilation openings of the appliance are not obstructed. The barbecue must be used on a level, stable surface. The appliance
should be protected from direct draughts and should be positioned or protected against direct penetration by any trickling water
(e.g. rain).
Parts sealed by the manufacturer or his agent must not be altered by the user. No modifications should be made to any
ź
part of this barbecue and repairs and maintenance should only be carried out by a CORGI registered service engineer.
E
Gas grill MANHATTAN
instructions for use
Jiang Men City Hong Hua Metal Prodcuts Co., Limited
G9206A-SB (99BB006)
18.2kW (1326 g/h)
I3+(28-30/37)
Butan
28-30 mbar
main: 0,75 mm
side: 0,85 mm
0359CL1116
-02-
I3B/P(30)
Propane LPG (mixture of gas)
37 mbar 30 mbar
main: 0,75 mm
side: 0,85 mm
