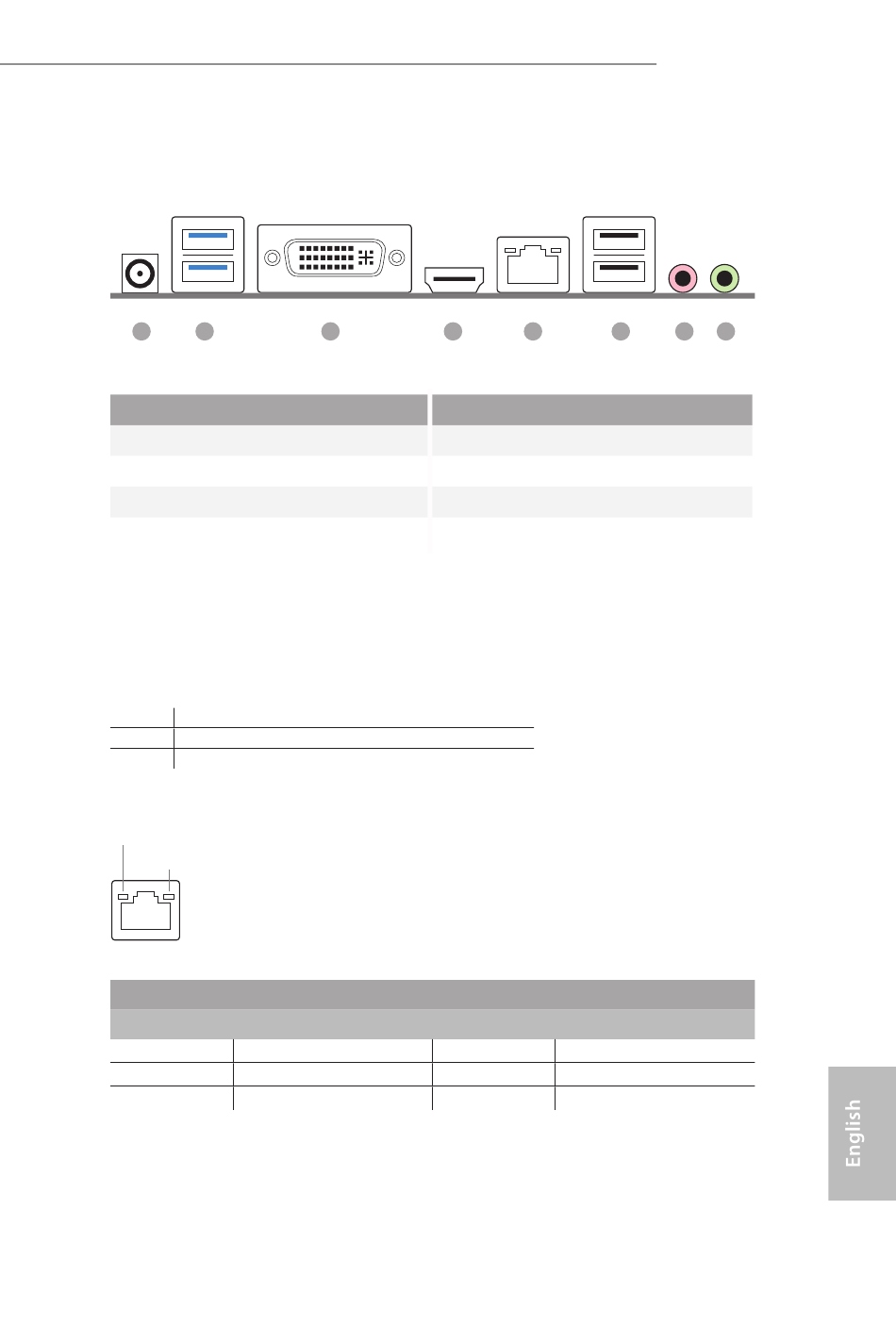

I/O Panel
1
2
No. Description
1
DC Jack*
2
USB 3.0 Ports (USB3_01)
3
DVI-I Port (DVI1)
4
HDMI Port (HDMI1)
* Please use a 19V power adapter for the DC jack. his jack accepts dual barrel plugs with an inner diameter of 5.1
mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND (centre
positive).
DELTA
DELTA-ADP-150TB-150W/19V
HP
HP-TBC-BA52-150W/19V
FSP
FSP-FSP150-ABAN1-150W/19V
** here are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Of
No Link
Blinking
Data Activity
On
Link
3
4
No. Description
5
LAN RJ-45 Port**
6
USB 2.0 Ports (USB01)
7
Microphone (Pink)
8
Front Speaker (Lime)
Speed LED
Status
Of
Green
Green
H81TM-ITX R2.0
5
6
7
Description
10Mbps connection
100Mbps connection
1Gbps connection
8
3
