Before Operating The Tool; Connection To The Mains Power Supply; Precise Setting Of The Cutting Point; Setting The Pipe On Supports - eXact PipeCut 410E Betriebsanweisungen

Operation
Exact PipeCut 280E/410E
pipecutting system
operating instructions

Before operating the tool

- Ensure that the motor unit is in the upright
position. The yellow mark of the UNLOCK
button is visible.
- Check that the blade is correctly fi tted, in
good condition and suitable for the material
to be cut.
- Ensure the pipe saw guide wheels rotate.
- Ensure the support wheels rotate.
- Check the operation of the lower blade
guard.
- Ensure the pipe is empty.
- Check the position of chip removal lever.
The pipe saw is equipped with a nozzle for
removing chips. When sawing plastic pipes, turn
the chip removal lever (Fig A/11) to "open" position
(Fig B), which opens the hatch in the blade
housing. If you attach a vacuum cleaner to the
chip removal nozzle, most of the plastic chips will
then fl y out of the chip removal nozzle (Fig A/12)
and won't remain inside the blade housing. When
sawing metal pipes, turn the lever to "close"
position (Fig B). The metal chips will drop out from
the bottom of the blade housing. Never attach
a vacuum cleaner when cutting metal pipes!

Connection to the mains power supply

Ensure that the mains voltage is the same as
indicated on the rating plate (Fig A/15). Connect
the pipe saw to the power outlet only after
having checked this.

Precise setting of the cutting point

When you mark the cutting point on the pipe to be
cut, deduct 20 mm from the required dimension
(Easy-to-remember rule: The cutting mark location
requires a measurement of - 20 mm.) (Fig C)

Setting the pipe on supports

Use the system supports when cutting pipes.
This will ensure safe working and optimum
result. Work on fl at surface. Place the pipe on
two supports so that the cutting point is between
the supports. Place two more support under both
ends of the pipe. Check that all support wheel
contact the pipe (adjust if required e.g. with
pieces of lumber) (Fig D). When cutting short
and light weight pipes, place the supports so
that the cutting point is outside supports (Fig E).
Support the pipe with your left leg, if required.
Proper arrangements will prevent the blade from
jamming as the pipe is cut through.

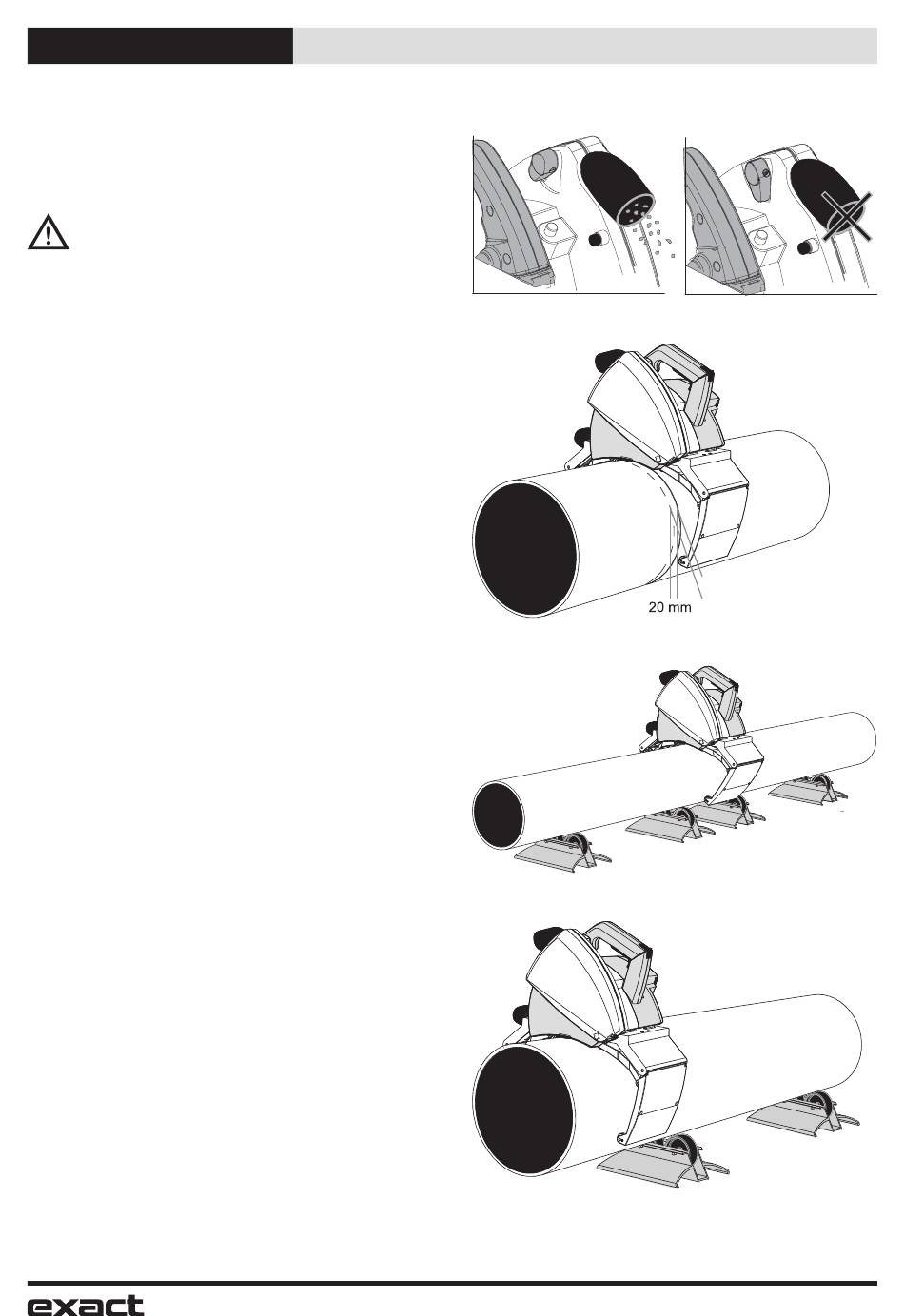

Fig B
open
Fig C
Fig D
Fig E
11
English
closed
Cutting point
Cutting mark
