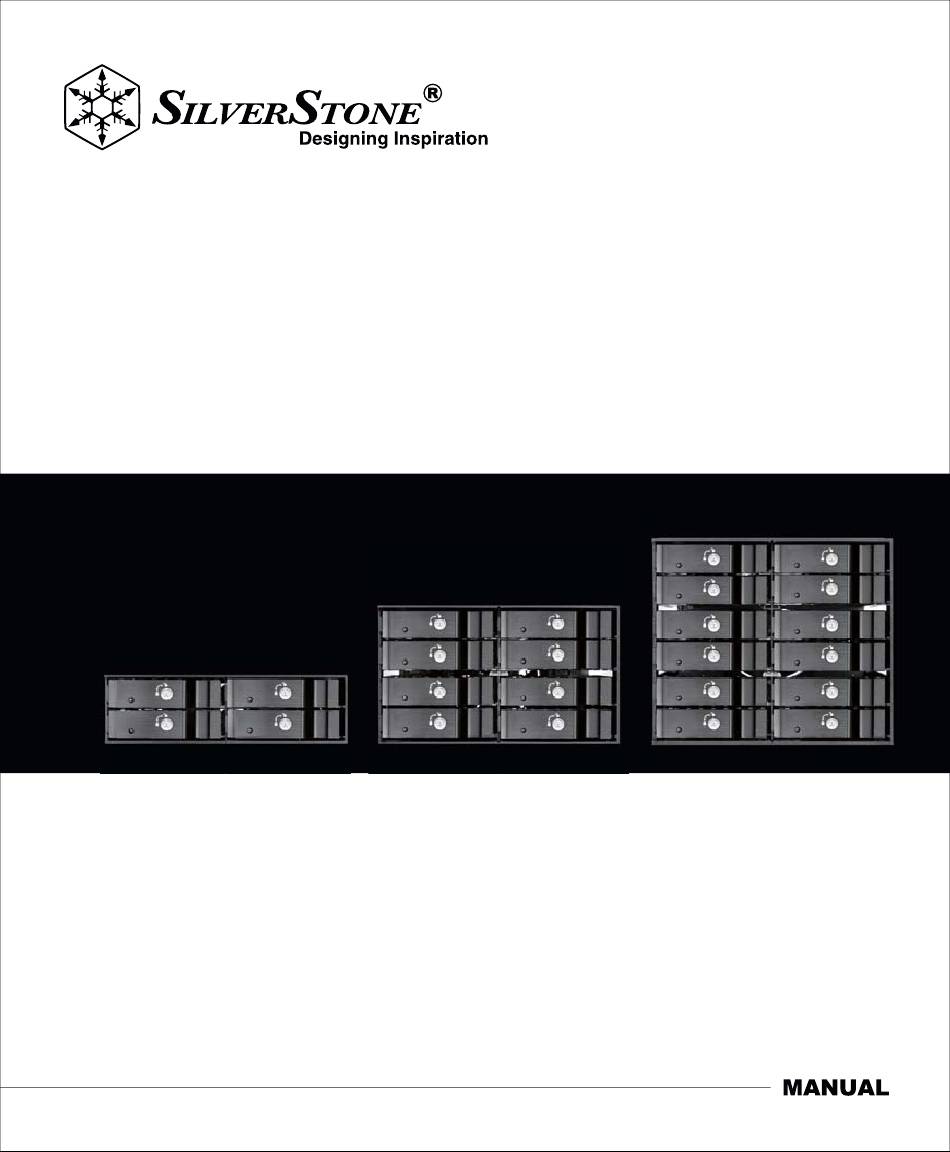

Seite 1

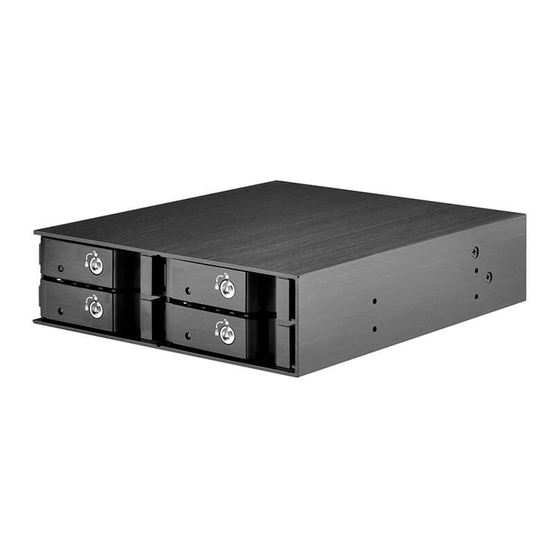

Front Panel Storage FS204 / FS208 / FS212 5.25" device bay to 2.5" SAS/SATA 6 Gbit/s 5.25" device bay hot-swap cage...
Seite 1
Front Panel Storage FS204 / FS208 / FS212 5.25" device bay to 2.5" SAS/SATA 6 Gbit/s 5.25" device bay hot-swap cage...
Seite 4
Front Panel Storage Product Overview FS204 FS208 FS212 A1 = HDD power & access LED A2 = Triangle Safety lock A3 = FAN status LED Solid red for FAN failure A4 = Temperature status LED Solid red for Overheating A1 = HDD/SSD Stromversorgung & LED ablesen A2 = dreieckige Sicherheitsschloss A3 = Lüfter-Status LED imme rot zeigt Lüfterausfall...
Seite 6
Front Panel Storage Product Overview FS204 FS208 FS212 B1 = SATA data signal connector B2 = 15pin power connector B3 = FAN Speed switch Speed switch High (3000rpm)/Low (2400rpm) B4 = HDD LED Switch (ON/OFF) B5 = Extension HDD signal jumper B6 = signal jumper for Temperature &...
Front Panel Storage Installation Chart Before you begin, please make sure that you have all components collected check that all components do not have compatibility problems with each other or with the case if possible, assemble the components outside the case first to make sure they are working keep the motherboard manual ready for reference during installation prepare a Phillips screwdriver.
Seite 9
Front Panel Storage Installation Chart Secure with screws Schrauben Sie ein 鎖上螺絲固定 Visser la vis 锁上螺丝固定 Asegurar con tornillos ねじをしめる Fissare con viti 나사를 채웁니다 Закрутить винты ล็ อ คสกรู Insert tray back into drive chassis Stecken Sie die Stützauflage 放回硬碟槽...
Seite 10
Front Panel Storage Installation Chart Install drive chassis into case Bauen Sie die Festplatte ins 放入機殼 Gehäuse ein Installer le châssis du disque 放入机箱 dans la case Instalar el chasis de disco en la ハードディスク固定台を carcasa 機械ケース中に入れます Installare il telaio rigido in caso 하드디스크를...
Seite 13
Front Panel Storage Indicator Status FS204 Status HDD einfügen HDD zugriffen B4 ausschalten Lüfterausfall überheizen Farbe blau lila blau Blinken *Bei B4ˇausgeschaltet ist, wird die Lesenfunktion des HDD/SSD beendet. Bei diesem Zeitpnkt vorne zeigt die LED-Anzeige nur blau, es bedeutet , aber die Signale blinken nicht lesen.
