2. Connection & How to access

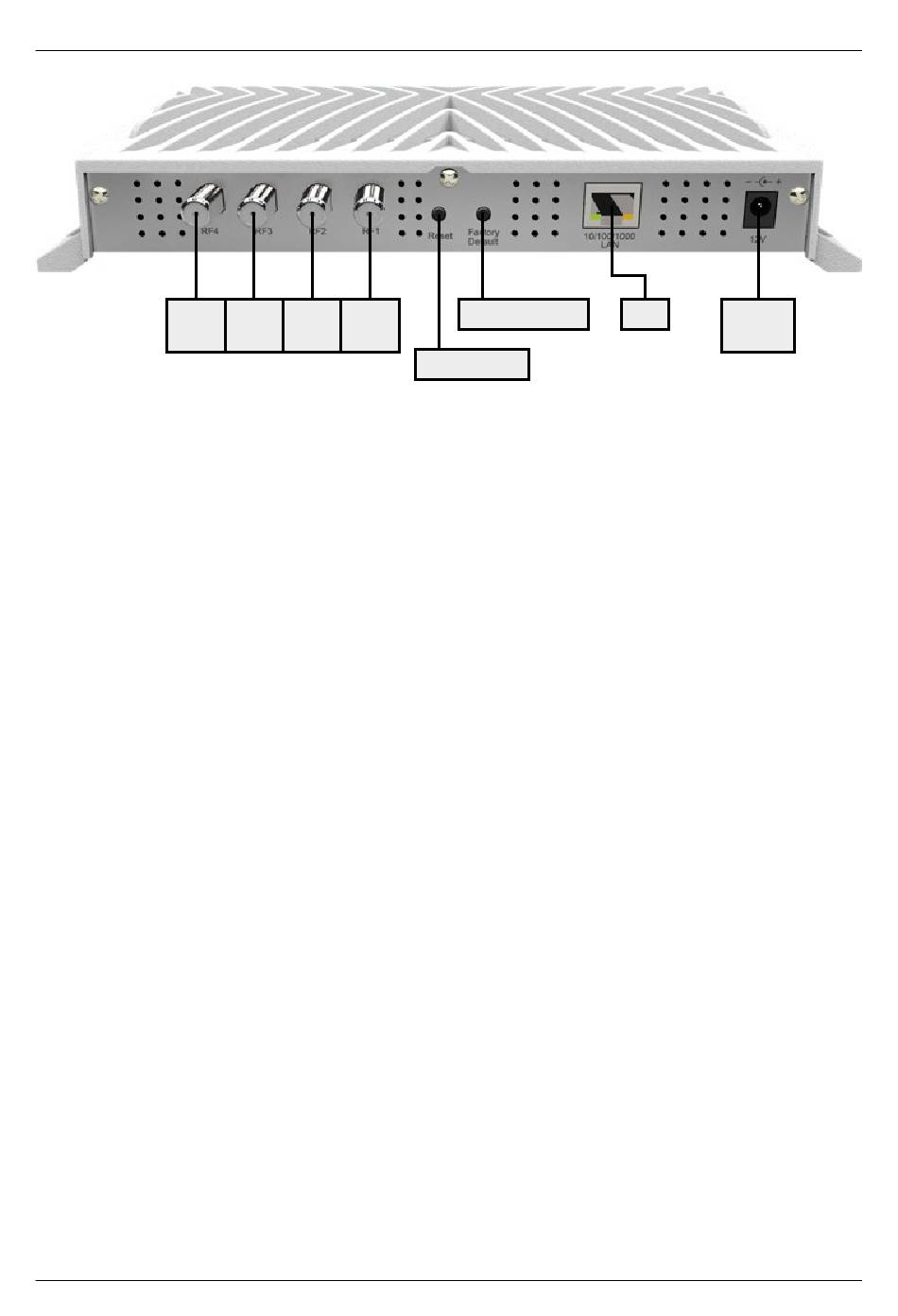

VL
(RF 4)
Connection with a Universal LNB (z.B. Single, Twin or Quad LNB)
Single LNB = RF4
Twin LNB = RF3 + RF4
Quad LNB = RF1 + RF2 + RF3 + RF4 (The order is not important)
Connection with a Quattro LNB
The device must be connected to the appropriate connector on the Quattro LNB, please
make sure the correct ports on the LNB:
Tuner RF1 = Horizontal Low (HL)
Tuner RF2 = Horizontal High (HH)
Tuner RF3 = Vertikal High (VH)
Tuner RF4 = Vertikal Low (VL)
Connection with a DiSEqC controlled device
Depending on the connection used, please refer to the corresponding DiSEqC settings.
Attention:
If you use DISEq or other additional circuitry, you can use only up to 4 Clients.
VH HH HL
(RF 3) (RF 2) (RF 1)
ENGLISH
Factory default
Reset button
LAN Power
supply
05
