REMOTO CONTROL
turns off.
NOTES:
- At first use it is necessary to start the remote control learning. When the downdraft is turned off,
F
- If the remote control breaks, the motor can be turned off and the hood closed by pressing the "F" button 3 consecu-
tive times on the down draft control unit. Do not press it too quickly, about once every half a second.
FLAT CONTROLS POSITIONING (OPTIONAL)

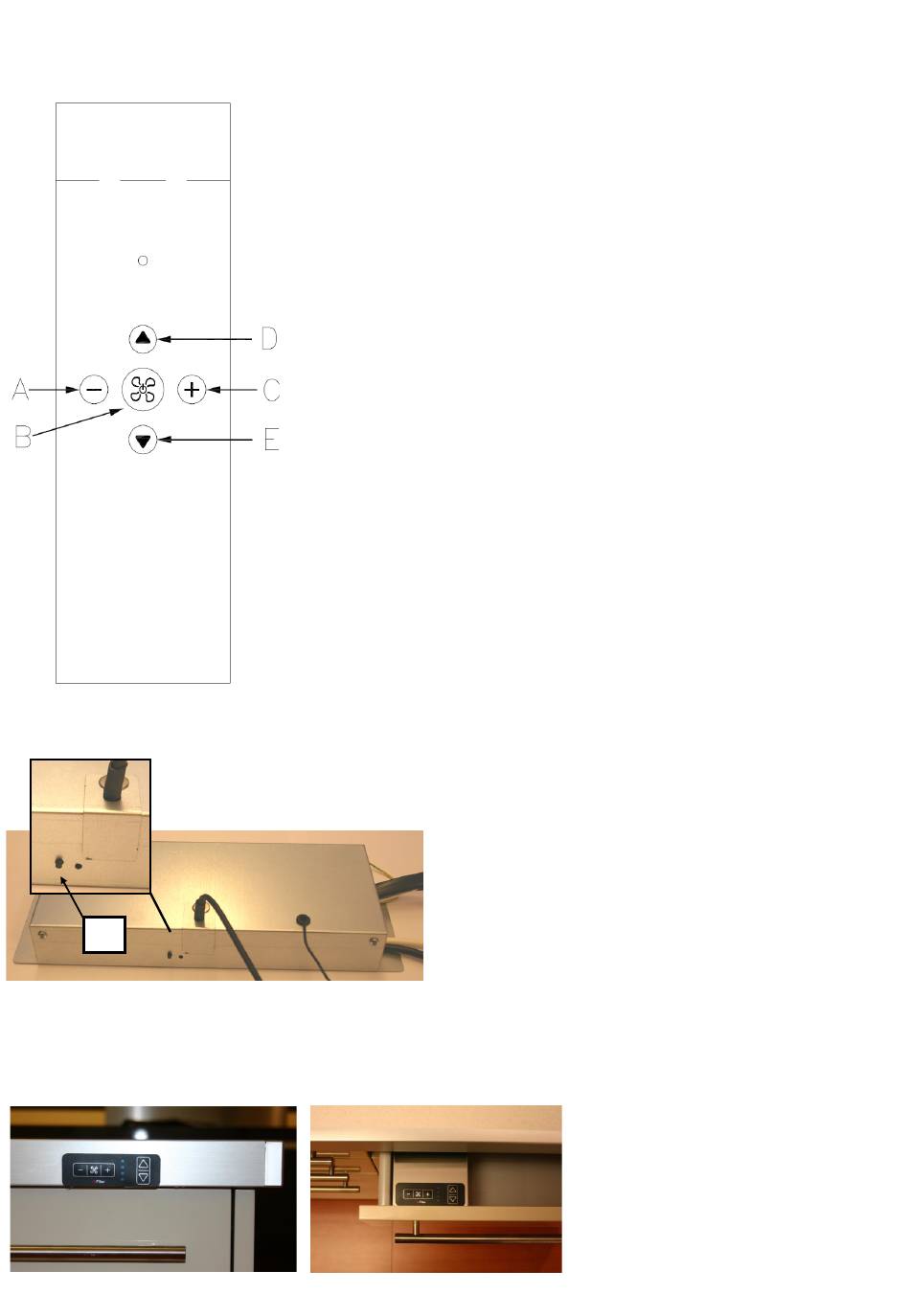

CONTROL FUNCTIONS

BUTTON "A"
With suction motor turned on, every time the button is pressed the motor
speed will be reduced of one step.
BUTTON "B"
With the downdraft completely removed, the suction motor can be turned on
and/or off.
Hood with LED lighting: With the downdraft extracted, each press of the button,
in sequence: turns on the motor at the second speed, turns on the lights, turns
off the motor, turns off the lights.
BUTTON "C"
With suction motor turned on, every time the button is pressed the motor
speed will be increased of one step. At the 4th motor speed (intense) after 5
minutes the 2nd speed is automatically set.
BUTTON "D"
By pressing the button once, the downdraft is completely extracted.
If the button is pressed while the downdraft is moving, the downdraft automati-
cally stops.
To restart the movement, it is necessary to press button "D" or "E".
BUTTON "E"
By pressing the button once, the downdraft returns in completely.
If the button is pressed while the downdraft is moving, the downdraft automati-
cally stops. To restart the movement, it is necessary to press button "D" or "E".
If the button is pressed when the suction motor is on, the motor automatically
keep button "F" pressed for 3-8 sec. The remote control
learning is indicated with the flashing led. If, within one mi-
nute there is a valid remote control code (sent by pressing
any button of the remote control), the led will be on continu-
ously for 3 seconds and then it will turn off, indicating the
proper learning.
EN -17
The flat controls has a thickness of 1.5mm
and is stickered to the bottom. It is also
equipped with a 2mt cable which permits
the client to position it on the front or
inside a drawer.
