CLS FX Series Active Column Loudspeaker Installation and Operating Manual CLS FX 2” Driver Series CLS FX 3” Driver Series Part Number: 532428 Version: 02 Date: 23-Jul-2009 Language: English, Français, Deutsch, Español...

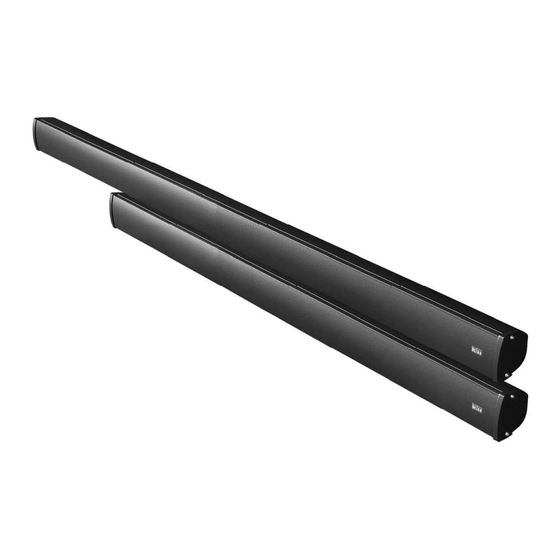

Klein + Hummel ■ Introduction Thank you for purchasing a Klein + Hummel loudspeaker. The CLS series are elegant slim line column loudspeakers with integrated stereo power amplifiers and SRS WOW HD processing, including active equalization and TruBass allowing them to sound like significantly larger loudspeakers. They may be mounted vertically for extremely wide horizontal coverage across a space or they may be mounted horizontally to provide controlled sound directly in front of the loudspeaker.
Mounting the loudspeaker onto a flat surface may be accomplished by using the included L-brackets as shown below. Attach the L-brackets to the wall using appropriate fasteners or anchors and then screw the L-brackets into the end cap of the loudspeaker. L-brackets and end cap screws are included. Installation and Operating Manual CLS FX Series English...
Recycling Instructions Loudspeaker Steel, Plastic, Copper, electronic Recycling only in authorized devices recycling plants Packing Material Cardboard, wood and/or plastics Separate materials then recycle User Manuals and Sales Literature Paper and cardboard Recycle Installation and Operating Manual CLS FX Series English...
This equipment is in compliance with the essential requirements and other relevant provisions of Directives 2004/ 108/ EG and 2006/ 95/ EG. The declaration is available on the internet site at www.klein-hummel.com. Before putting the device into operation, please observe any respective country-specific regulations. Installation and Operating Manual CLS FX Series English...
Maintenance and Servicing • There are no user serviceable parts inside the standard version of this product. Repairs should only be undertaken by Klein + Hummel certified service engineer. • Options and accessories are fitted at the user’s own risk.
Klein + Hummel ■ Introduction Merci d’avoir acheté une enceinte Klein + Hummel. La gamme CLS rassemble différentes enceintes colonne, d’une grande finesse, intégrant leurs amplificateurs de puissance stéréo, leur traitement SRS WOW HD ainsi qu’une égalisation active et l’algorithme TruBass, leur permettant de sonner comme des enceintes de taille bien supérieure.
équerres au mur, en utilisant les vis ou boulons appropriés, puis vissez l’enceinte sur les équerres avec les écrous de serrage, aux extrémités de l’enceinte. Les équerres et les écrous de serrage sont fournis. Manuel d’installation et d’utilisation CLS FX Series Française...
Recycling Instructions Loudspeaker Steel, Plastic, Copper, electronic Recycling only in authorized devices recycling plants Packing Material Cardboard, wood and/or plastics Separate materials then recycle User Manuals and Sales Literature Paper and cardboard Recycle Manuel d’installation et d’utilisation CLS FX Series Française...
Cet appareil est conforme aux obligations essentielles et autres provisions des Directives Européennes 2004/ 108/ EG et 2006/ 95/ EG. La déclaration est disponible sur notre site Internet, www.klein-hummel.com. Avant de mettre l’appareil en service, veuillez respecter les éventuelles réglementations spécifiques à votre pays. Manuel d’installation et d’utilisation CLS FX Series Française...
N’utilisez pas de produit nettoyant à l’alcool. • Seul cas où l’électronique peut être ouverte par une autre personne qu’un technicien agréé Klein + Hummel : la mise en place d’options installables par l’utilisateur, comme décrit dans le manuel utilisateur de l’appareil. N’oubliez pas de débrancher le câble secteur dès que vous ouvrez le panneau de l’appareil.
Klein + Hummel ■ Einleitung Herzlichen Dank für den Kauf eines Klein + Hummel Lautsprechers. Die CLS-Serie bietet Ihnen elegante, schlanke Tonsäulen mit integrierten Stereo-Endstufen und SRS WOW HD Bearbeitung, inklusive aktiver Entzerrung und TruBass, dank derer die Lautsprecher wie wesentlich größere Systeme klingen. Man kann die Modelle der CLS-Serie vertikal montieren, um eine extrem breite horizontale Abstrahlung in den Raum zu erzeugen, oder man kann sie horizontal montieren, um eine kontrollierte Beschallung direkt vor dem Lautsprecher zu erzielen.
Klein + Hummel Abb. 4 Abb. 5 Abb. 6 Abb. 7 Abb. 8 Abb. 9 ■ Audioeinstellungen Der Line-Pegel-Eingang des Lautsprechers erwartet einen Nominalpegel von -10 dBV, der von vielen Audiogeräten der Consumer-Klasse ausgegeben wird. Man kann höhere Eingangspegel verwenden oder den Pegel des Lautsprechers zurückdrehen, indem man die Lautstärke mit dem Regler hinter der Endkappe einstellt (siehe unten).
In Anbetracht der Produktqualität ist zu sagen, dass die Produkte von Klein + Hummel durch eine lange Haltbarkeit bestechen. Darüber hinaus ist es Klein + Hummel wichtig, dass alle Produkte so konzipiert sind, sodass sie am Ende ihres Produktlebenszyklusses recycelt und wiederverwertbar sind. Ein umfassendes Servicenetzwerk sichert Ihnen, dass, im Falle eines vorzeitigen Fehlers, alle Produkte repariert werden können.
Klein + Hummel ■ Technische Daten CLS-2FX100-B CLS-3FX100-B Treiber 6 x 2” Treiber pro Kanal (Stereo) 4 x 3” Treiber pro Kanal (Stereo) 12 x 2” Treiber (Mono) 8 x 3” Treiber (Mono) Untere Trennfrequenz 370 Hz, Ist (Stereo) 200 Hz, Ist (Stereo)
• Reparaturen, Instandhaltungs- oder andere Wartungsarbeiten an diesem Produkt, die im Inneren des Geräts vorgenommen werden, sollten nur von Wartungstechnikern durchgeführt werden, die von Klein + Hummel autorisiert sind und mit dem Gerät sowie den Risiken beim Umgang mit Elektronik vertraut sind.
Klein + Hummel ■ Introducción Gracias por comprar una bocina Klein + Hummel. La serie CLS consta de torres de sonido con un elegante y delgado diseño, amplificadores estéreo integrados y sistema de procesamiento SRS WOW HD con ecualización activa y TruBass que les permiten sonar como bocinas de gran tamaño.
Klein + Hummel figura 4 figura 5 figura 6 figura 7 figura 8 figura 9 ■ Controles de audio La entrada de línea de la bocina acepta señales con un valor nominal de -10 dBV, que es el nivel de muchos de los aparatos de audio.
Klein + Hummel Método de montaje usando los soportes en L incluidos Un canal para tuerca corre a lo largo de la parte posterior de la bocina. Cuando se quita la cubierta protectora, se puede insertar una tuerca en el canal para usarla con soportes o accesorios de montaje externos.
Klein + Hummel ■ Especificaciones técnicas CLS-2FX100-B CLS-3FX100-B Bocinas 6 x bocinas de 2” por canal (estéreo) 4 x bocinas de 3” por canal (estéreo) 12 x bocinas de 2” (mono) 8 x bocinas de 3” (mono) Corte de baja frecuencia 370 Hz real (estéreo)
No use limpiadores con base de alcohol. • Los circuitos electrónicos únicamente deberán ser abiertos por un ingeniero de servicio autorizado Klein + Hummel para la instalación de las opciones elegidas por el usuario, tal como se describe en el manual de operación de este producto.
Seite 24
Other company, product, or service names may be trademarks or service marks of other organizations. Klein + Hummel reserve the right to change product specifications without notice. Exceptions and omissions excluded. K+H Vertriebs- und Entwicklungsgesellschaft mbH Auf dem Kessellande 4a, 30900 Wedemark, Germany.
