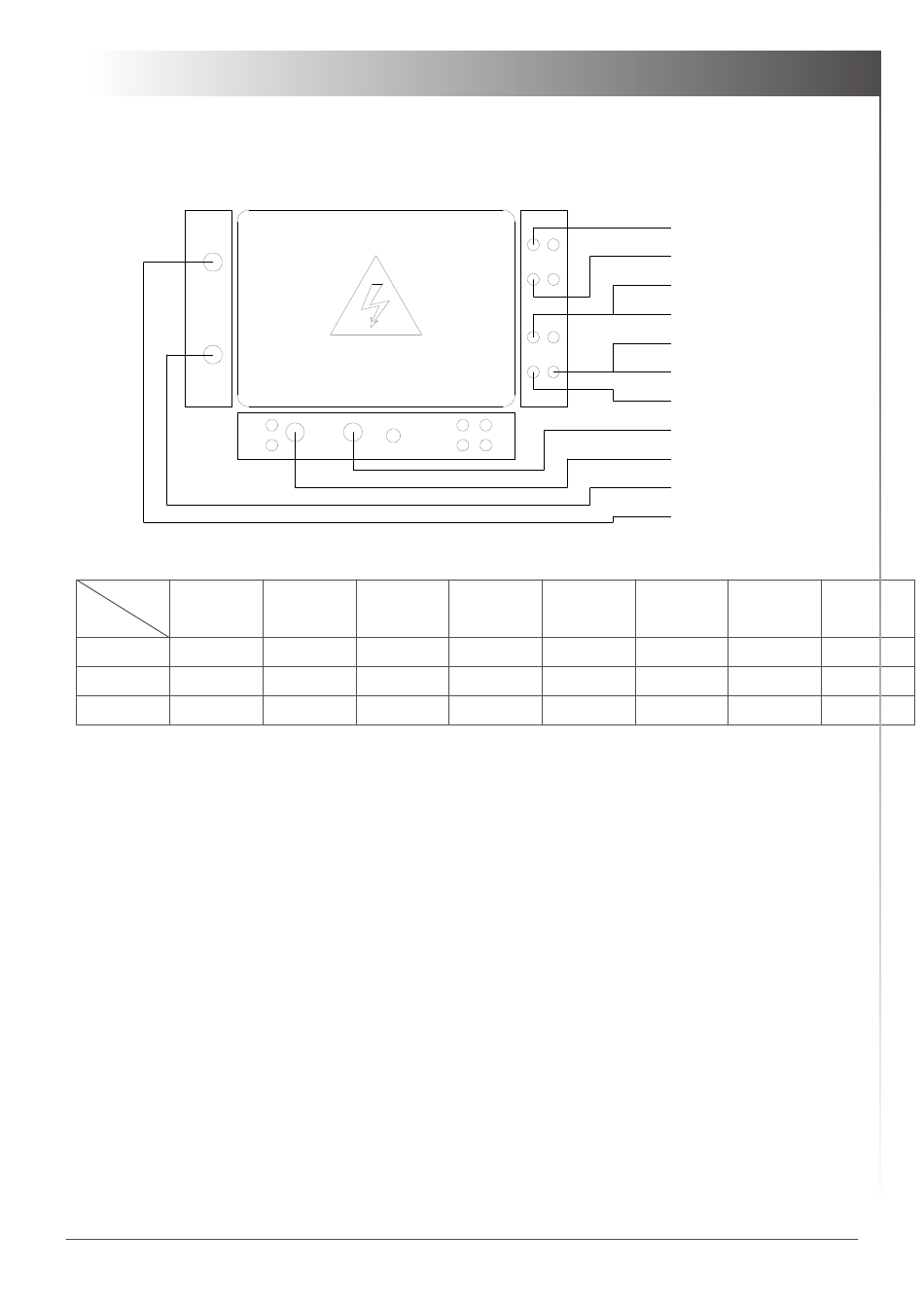

Control system wiring principle
Confi guration
Control s ystem
Parameter
AC220V-240V
Rated voltage
50Hz / 60Hz
Rated resistance
Rated power
Rated voltage: AC220V - 240V Rated frequency: 50Hz / 60Hz
Operating Voltage range: AC198V - 242V
Standby power: <10W (All loads are off)
Ambient temperatur: +5°C - +40°C
Voltage danger!
Pump
Heater
AC230V AC230V
1500W(1 pump)
1500W
3000W(2 pumps )
Bottom l ight
Solenoid valve
DC12V DC12V
1500W 4*5W

Wiring principle

Speaker
8Ω 15W
Control panel
Temperature sensor
Water level sensor
Ozone
DC12V 6W
RGB Light
DC12V 15W
Solenoid valve
DC12V 5W*4PC
Pump2
AC230V Max. 2HP
Pump1
AC230V Max. 2HP
AC Power input
AC198V-242V 50Hz/60Hz
Heater
AC230V Max. 1.5kW
Ozone Speaker
DC12V
8Ω
6W 15W
Note
