INTEGRAL POWER

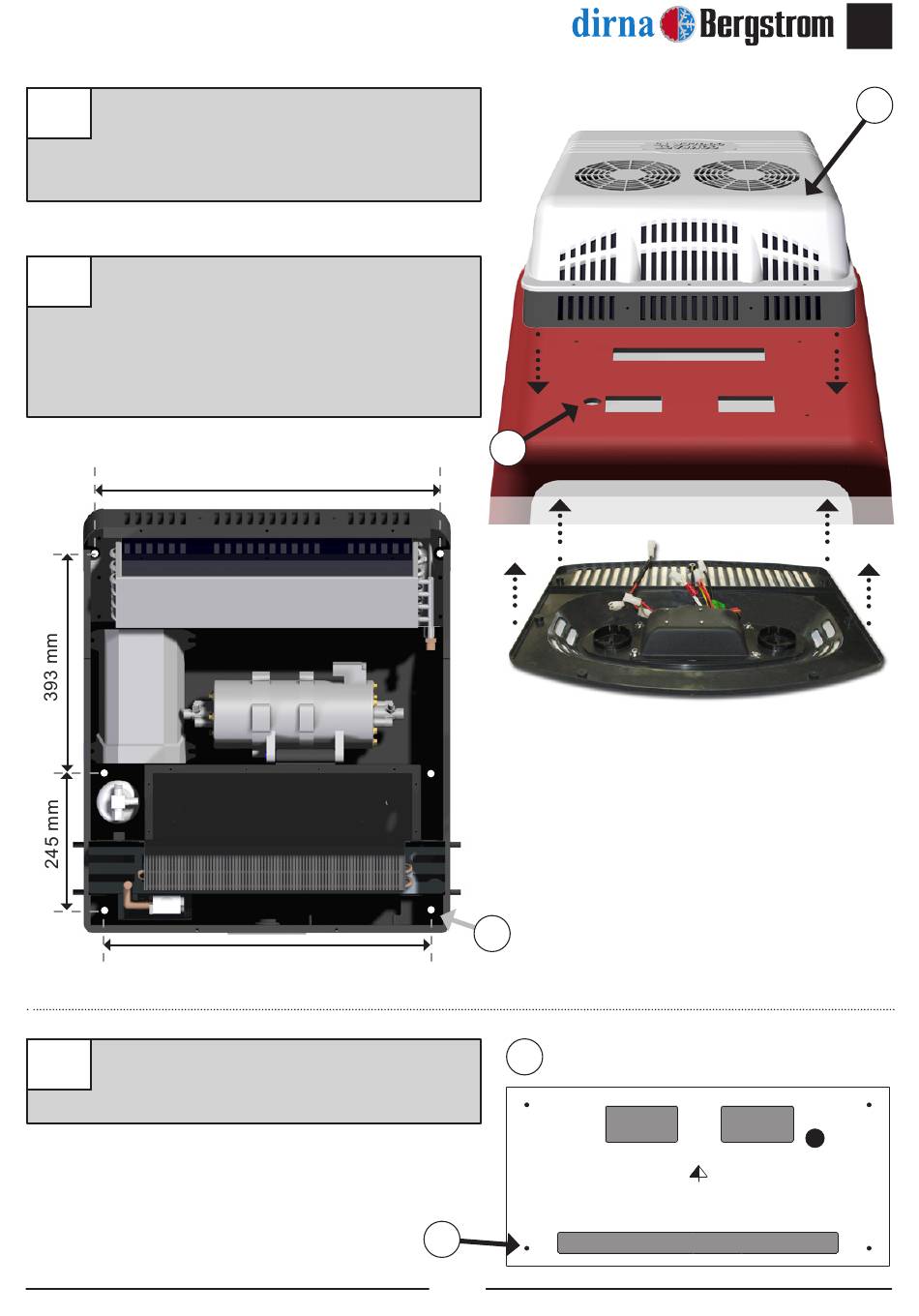

Position the Integral Power unit on the roof,
1
taking into account that the final position must
correspond to the front supplied (0911860035),
ensuring it is on a flat surface.
Once the position is defined, remove the case
2
and mark (6) boreholes (Y), then align the (4)
template boreholes with the (4) rear boreholes
in the roof (figure 3).
Note the arrow indicating the operation
direction.
Mark and make the cuts and boreholes (protect
3
the sharp edges with anti-oxidant).
620 mm
585 mm
T
Y
3
Ø 7 (4)
SENTIDO DE MARCHA
OPERATION DIRECTION
Y
9
EN
®
1
Ø 32
