Installation

Assembly

GB
Before proceeding with the assembly operations,
remove the grease filters so that the hood is easier
to handle (for the instructions see the paragraph
"Cleaning the grease filters" in the chapter on
"Maintenance").

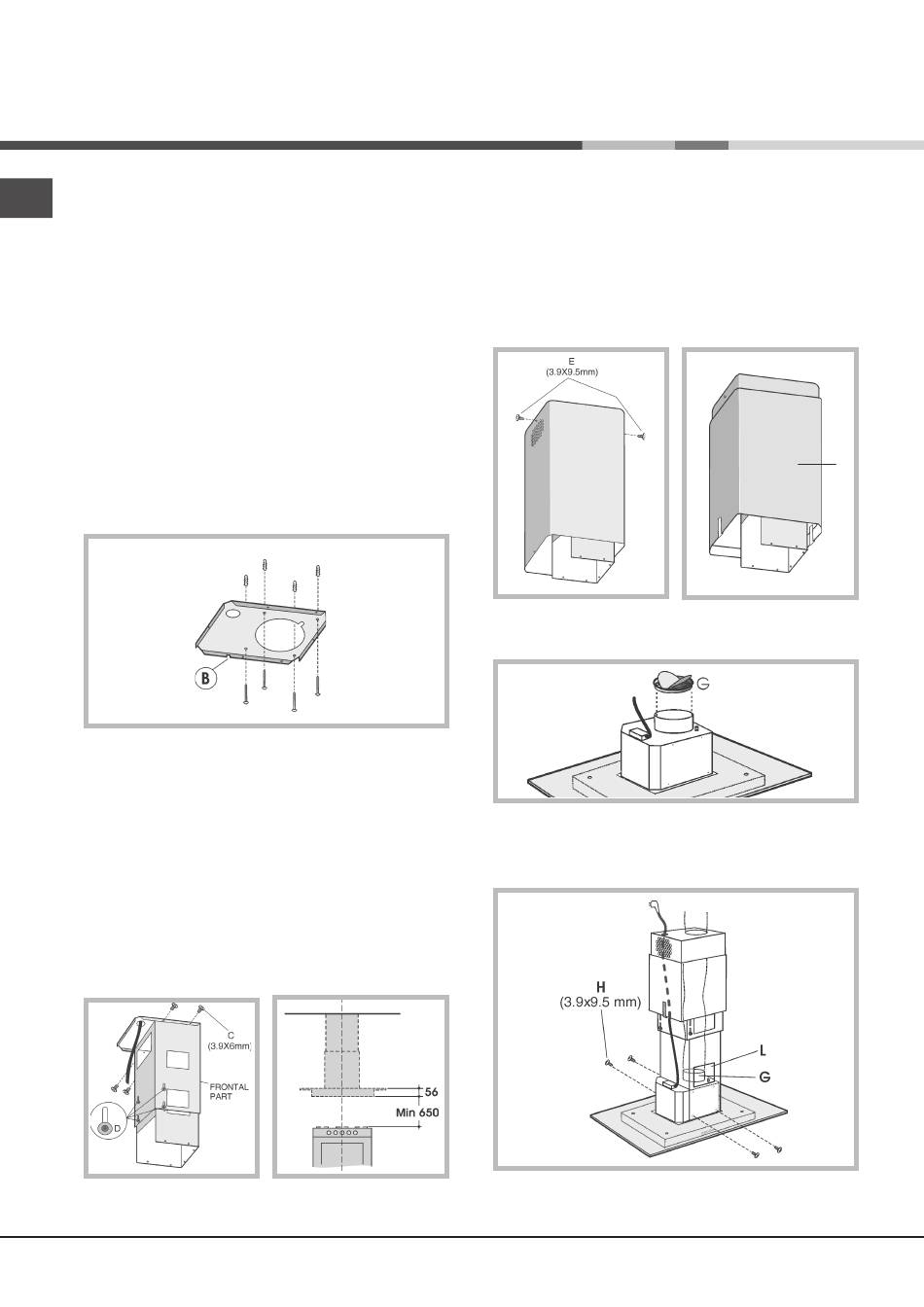

1) Using the special drilling template, drill the holes
for fixing to the ceiling on the vertical side of your
hob. Carefully observe all the indications for final
positioning of the apparatus. Take into account
that one of the template axes must correspond to
the axis of the hood controls.
2) Fix the bracket (A) to the ceiling using the screws
and screw anchors provided. Be careful, because
the position of the bracket determines the final
position of the apparatus: the side with the slot B
corresponds to the side opposite the controls.
3) Fix the telescopic structure to the bracket by
means of 4 screws C (provided), running the air
evacuation pipe through the telescopic structure
and the electric power cable through the special
hole in the bracket (the air evacuation pipe is not
supplied). Set the height of the structure bearing in
mind that the height of the hood is 56 mm and that
the distance of the hood from the cooker must be
at least 650 mm. Once the height is set, block the
telescopic structure with 8 screws and 8 washers
(D) – (2 screws and 2 washers on each side).
CAUTION: there is only 1 screw and 1 washer
on the telescopic structure, take the other 7
from the accessories' bag.
10
4) Ducting version:
a) Take the upper flue (with the round slots) and
fit it on the telescopic structure with the slots
facing upwards; fit the flue to the bracket with 2
screws (E).
b) Take the lower flue (F) and fit it in the same
manner as before; slide it to the top and stop it
in that position using a adhesive tape.
c) Take the flange with the metal valve (G) and
assemble it onto the opening of the hood for air
venting, pressing slightly.
d) Fit the hood to the telescopic structure by
means of 4 screws H (provided). Through
openings L fix the air evacuation pipe to flange
G.
