HELIX G TWO Bedienungsanleitung Seite 17

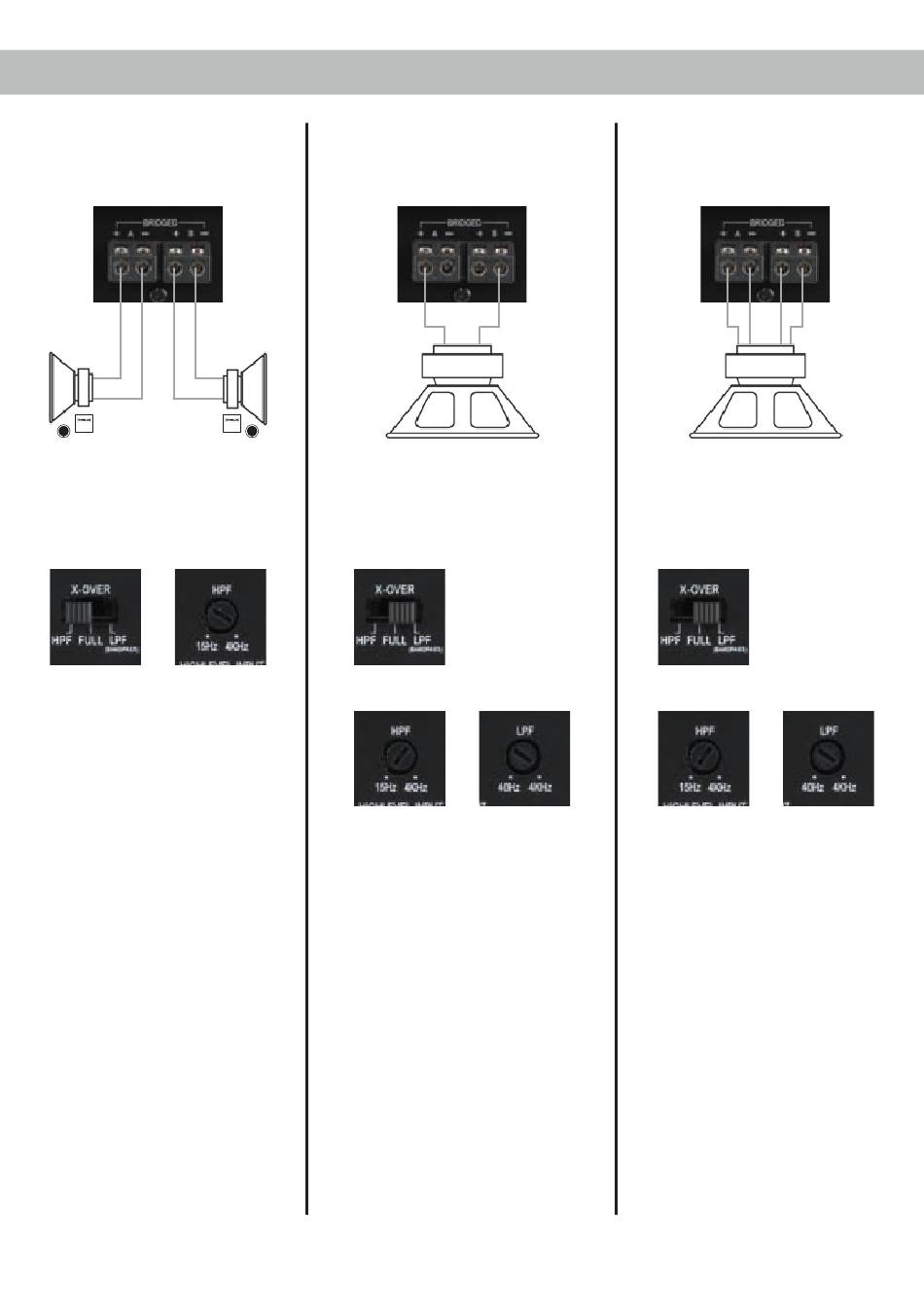

Examples of speaker configurations
2-channel
Component system
+ - + -
Left Right
Highpass filter
HPF 50 - 100 Hz
Note: The values listed here are empirical values that have been approved as useful in practice. Depending on the size of the loudspeaker
we recommend the following highpass filter settings: ca. 50 Hz for 6.5"/16.5 cm LS; ca. 70 Hz for 5.25"/13 cm LS; ca. 100 Hz for 4"/10 cm LS
1-channel
Subwoofer in
bridged mode
-
+
Bandpass
LPF
Highpass filter Lowpass filter
ca. 15 Hz ca. 80 Hz
2-channel
Subwoofer with
dual voice coil
- -
+ +
VC 1 VC 2
VC = Voice coil
Bandpass
LPF
Highpass filter Lowpass filter
ca. 15 Hz ca. 80 Hz
17
