HELIX G TWO Bedienungsanleitung Seite 12

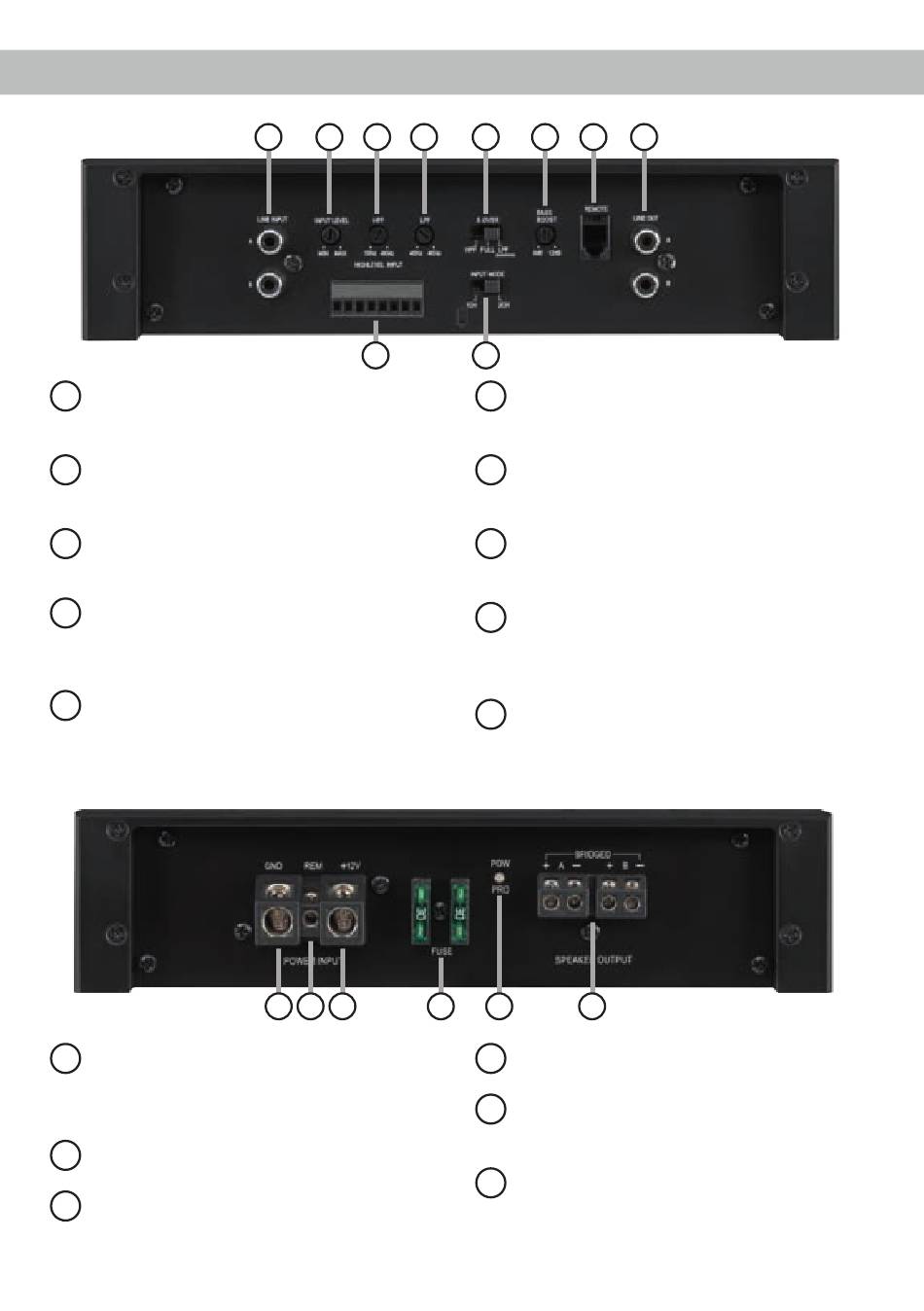

Connectors and control units
Line Input
1
RCA inputs for connecting pre-amplifier
signals.
Input Level
2
Control for adjusting the input sensitivity of
the Line and Highlevel Inputs.
.
HPF
3
Control for adjusting the highpass filter from
15 to 4,000 Hz.
Highlevel Input
4
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
pre-amp / line outputs.
LPF
5
Control for adjusting the lowpass filter from
40 to 4,000 Hz.
GND
11
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
REM
12
Connector for the remote cable.
+12 V
13
Connector for the +12 V power cable of the
positive terminal of the battery.
12
1 2 3 5
4
11 12 13 14
6 8 9 10
7
X-Over
6
Switch for activating the filters for channel A
and B.
Input Mode
7
Switch to route input signals to respective
amplifier channels.
Bass Boost
8
Control for adjusting the bass boost from 0 to
12 dB.
Remote
9
Input for connecting the included cable
remote control for volume adjustment of the
channels A and B in bandpass mode.
Line Out
10
RCA outputs
amplifiers.
15 16
Fuse
14
Input fuses - 2 x 30 Ampere.
Power & Protect LED
15
This LED indicates the operating mode of the
amplifier.
Output Channels
16
Speaker outputs for connecting speaker
systems.
for connecting external
