Meibes Solarstation M Technische Information Für Montage Und Betrieb Seite 10

Vorschau ausblenden Andere Handbücher für Solarstation M:
Inhaltsverzeichnis

Werbung

24002.847_TI Solarstation M
2.
Technische Daten
Technical Data
Caractéristiques techniques
20.10.2009
8:51 Uhr
Seite 10

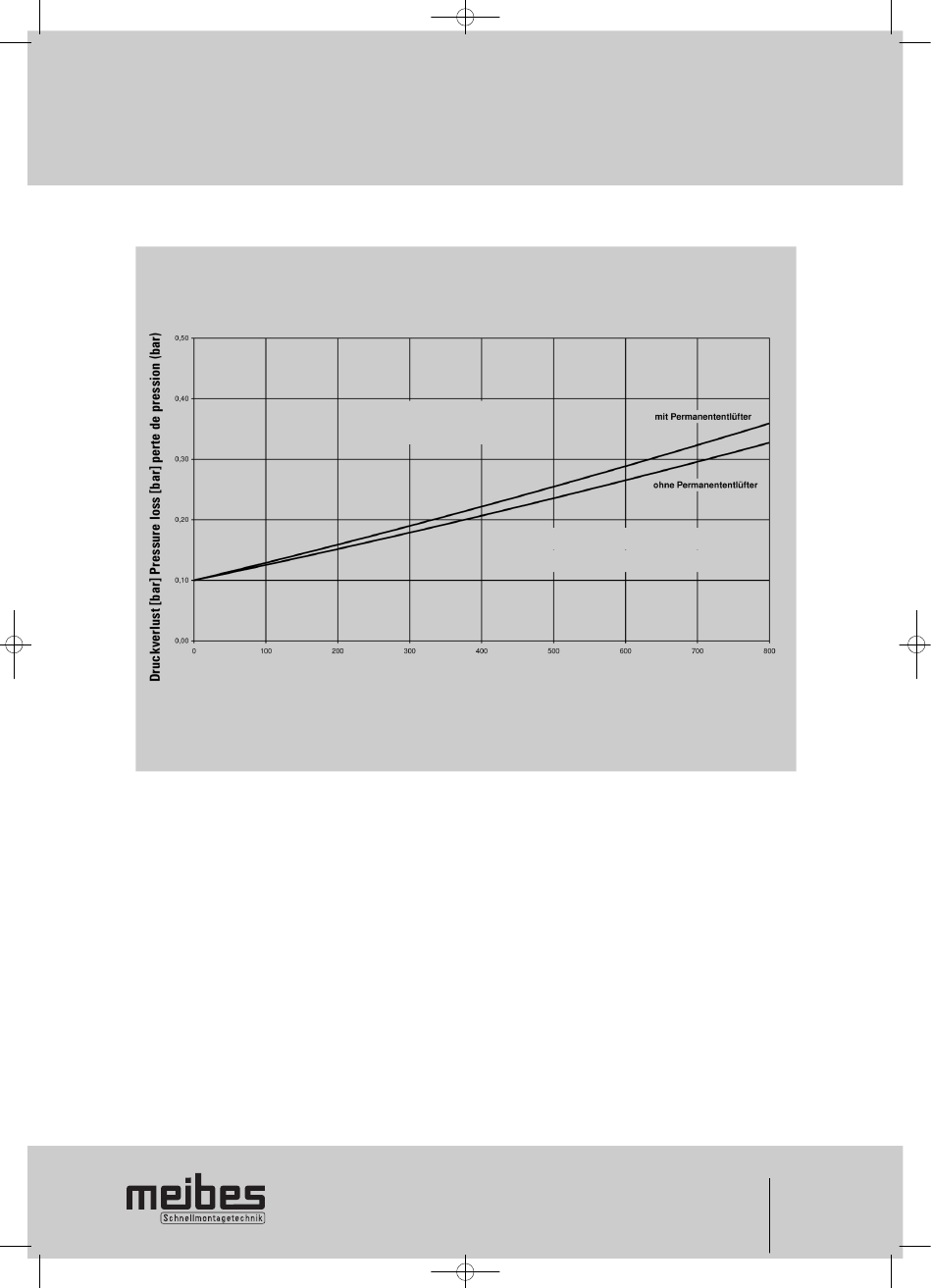

Volumenstrom-Druckverlust-Diagramm Zweistrang Solarstation M*
Volume flow/pressure loss diagram 2-string solar station M*
Diagramme débit volumétrique – perte de pression
pour station solaire M* bitube
with permanent vent
avec purge permanente
Volumenstrom [l/h] Volume flow [l/h] débit volumétrique [l/h]
sans purge permanente
without permanent vent
* Durchflußwiderstand mit Sole (Propylenglykol 40%)
* Flow resistance with brine (propylene glycol 40%)
* Résistance au débit avec anti-gel (40% propylèneglycol)
