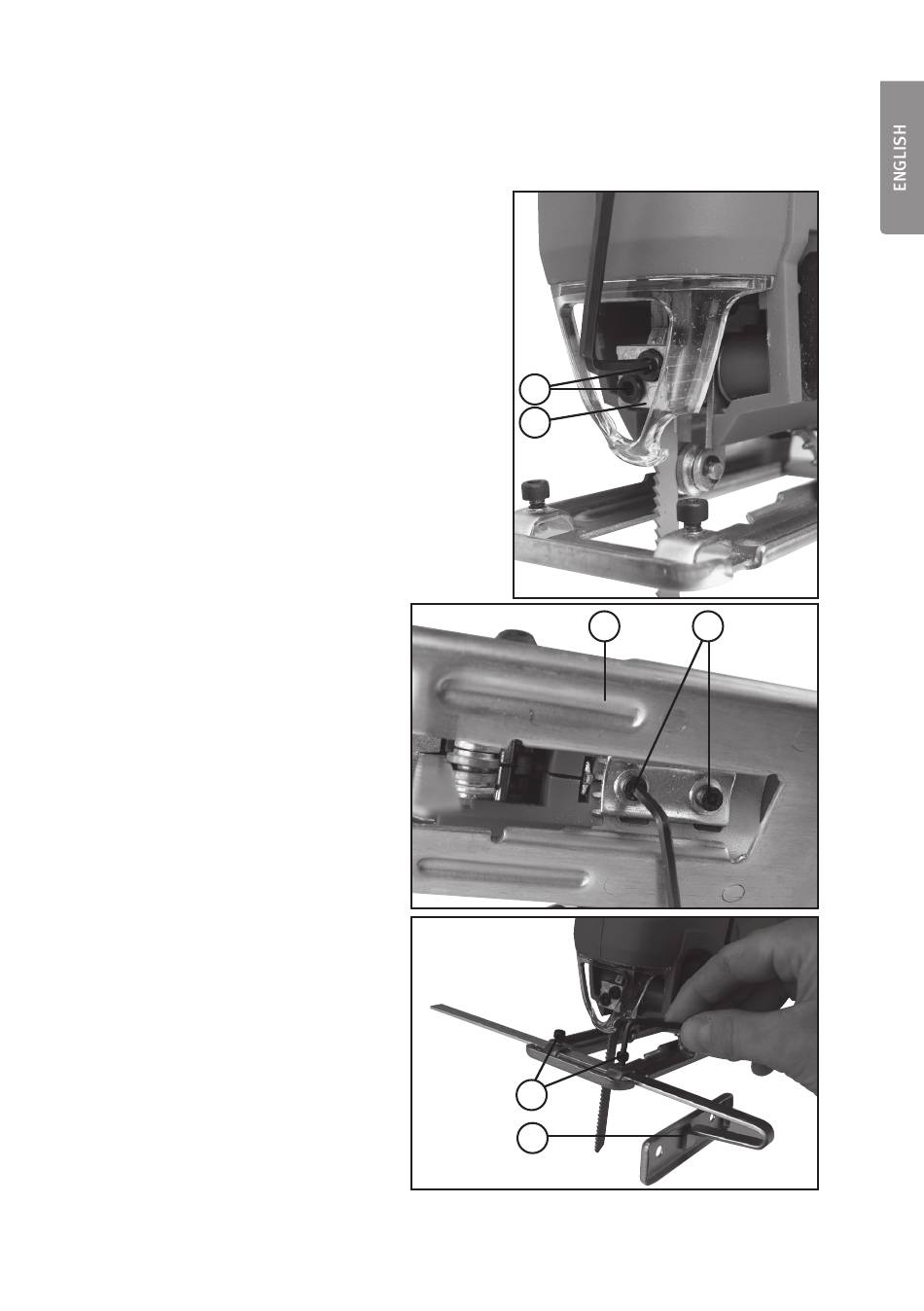

Mounting and adjustments
Important! Always unplug the saw before servicing.
Changing the saw blade
• Loosen the socket head screws (12)
holding the saw blade.
• Insert the saw blade into
the blade holder (5).
• Tighten the screws (12).
• Make sure that the blade is
correctly mounted.
Adjusting the foot plate
• The foot plate (6) can be tilted
max. 45° to the right or left.
• Loosen the socket head
screws (13).
• Pull the footplate (6) backwards
and set the desired angle.
• Tighten the socket head
screws (13).
Sawing with
the parallel guide
• Mount the parallel guide (10)
into the slots.
• Set the desired measurement.
• Tighten the screws (14).
