Flexline
6
Beschlagselemente
Fittings
Beslagelementen
S
3,5 x 25RK
Werkzeug
Tools
Gereedschap
7
Beschlagselemente
Fittings
Beslagelementen
SS
Spax 5 x 20

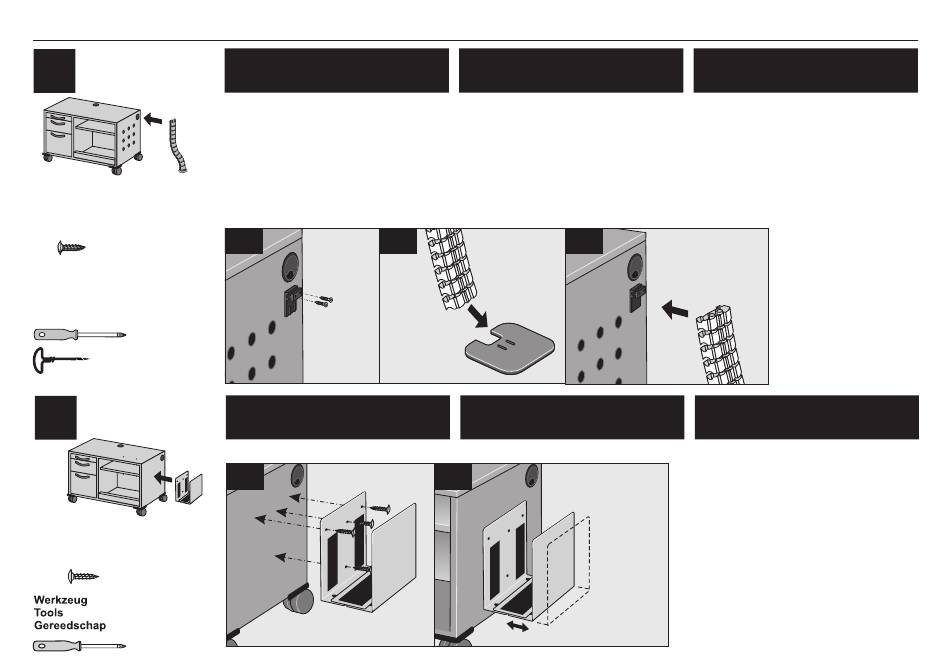

flexible Kabelzuführung
Befestigungsplatte BP mit der Zugentlastung
unterhalb des Kabelduchlasses KD an der
Seitenwand montieren Abb. 6.1
vormontierten Kabelkanal mit der Boden-
platte verbinden Abb. 6.2
oberes Segment des Kanales an die Befes-
tigungsplatte BP anhängen und Kabel durch
die Öffnungen der Segmente eindrücken,
Zugentlastungen verschrauben Abb. 6.3
6
6
.
.
1
KD
BP
2 x S
3,5 x 25RK
PC-Halterung
7
.
1
SS
Flexible cable conduit
Affix the mounting plate BP with the strain
relief under the cable aperture KD on the
sidewall. Fig. 6.1
Fix the pre-connected cable to the base
plate.Fig. 6.2
Hook the upper segment of the conduit into
the mounting plate BP and press the cable
through the openings in the segment. Screw
the strain reliefs into position.Fig. 6.3
6
2
PC mounting
7
.
2
Flexibele kabeltoevoer
Bevestigingsplaat BP met de trekontlasting
onder de kabeldoorvoer KD aan de zijwand
monteren.Afb. 6.1
Voorgemonteerd kabelkanaal met de bodem-
plat verbinden. Afb. 6.2
Het bovenste segment van het kanaal aan
de bevestigingsplaat BP aanhangen en
kabel door de openingen van de segmenten
indrukken. Trekontlastingen vastschroeven.
Afb. 6.3
.
3
KD
BP
PC-houder
CombiContainer
