Seite 1

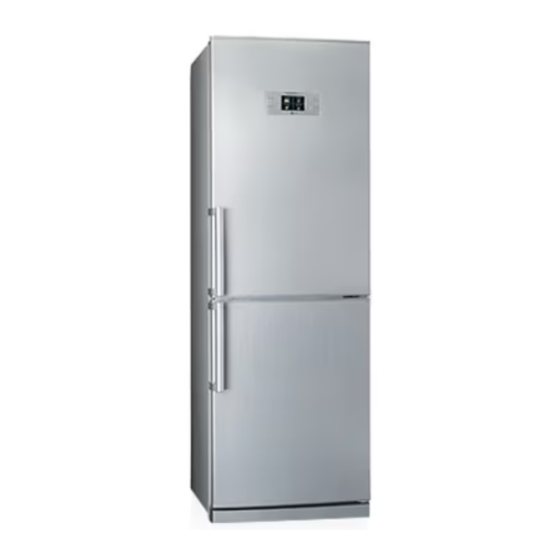

KÜHL- GEFRIERKOMBINATION Bedienungsanleitung Bitte lesen Sie diese Bedienungsanleitung genau durch, bevor Sie das Gerät benutzen und halten Sie sie immer zur Hand, damit Sie, falls nötig, nachschlagen können. FRIDGE-FREEZER User’s Guide Please read this User’s Guide carefully before operating and keep it handy for reference at all times. HLADILNIK- ZAMRZOVALNIK Navodila za uporabo...
Seite 2
Wichtige Sicherheitsanweisungen Gesamtübersicht Installaterung Kühlschrank Gefrierteil Funktion Schnellgefrieren Sperre Umdrehen der Vorsichtshinweis Türen Umdrehen der Türen...
Seite 3
ü f - l l c ü ä r . s t t s i r ü t ä i t s ü i e l . t s ä ä ä sanweisungen ü ß ä ß t l l t ä...
Seite 4
ü f e i S e t s e i S ü K r f e r e i i t a e i S f r ü ä h a t s c i n e i z , n l S l i l l e o r t...
Seite 5
ü f t l a e i S e i d a l i t o i t f f ö e t ä n n i u ä e r f t s r . n e z t u e i S e n i s i n...
Seite 6
ü f ü Eierleiste (1 oder 2) Ausnehmbare Türkorb Glasplatte (2 oder 3) (3 or 5) Lampe Multiair Strömungskanal Mehrzweckecke Frischhaltefach (ausnehmbar) (option) Kühlschrank Flaschenhalter Temperatureinstellung Gemüseschublade Handgriff (option) Um Obst, Gemüse usw. frisch und knackig 2Literflasche zu halten. (1 oder 2) Eiswürfelschale Gefrierteil Ausnehmbare...
Installaterung Installaterung Wählen Sie den richtigen Aufstellort. Stellen Sie Ihre Kühl-Gefrierkombination da hin, wo Sie sie bequem benutzen können. Stellen Sie das Gerät nicht in der Nähe von Heizkörpern, direktem Sonnenlicht oder in einem Feuchten Raum. Sie müssen eine ausreichende Luftzirkulation um Ihrer Kühl-Gefrierkombination herum gewährleisten, damit diese einwandfrei funktionieren kann.
Seite 8
ü ü l i e e l l Kü • e l l " , " ä t ä ü • ö ü , t s e l l ü i r f Anzeigefeld fürTemperaturregelung LED(88) LED(BALKEN) Anzeigefeld für Funktionen Sperren-Taste Schnellgefrieren- Taste Taste zur Einstellung der...
Seite 9
b e i r • Die anfängliche Temperatur im Gefrierfach beträgt -18ºC. Die Temperaturen in den Fächern können nun nach Wunsch eingestellt werden. < LED 88-Typ > < LED BALKEN-Typ > • Bei jedem Drücken des Temperaturreglers ändert sich die Temperatur im Gefrierfach in der folgenden Reihenfolge.
Betrib Funktion Schnellgefrieren • Wählen Sie diese Einstellung zum Schnellgefrieren. • Diese Funktion dient zum schnellen Einfrieren von Lebensmitteln. Drücken Sie einmal auf die Taste ‘SUPER FRZ.’ (Schnellgefrieren), um die Schnellgefrieren-Funktion zu starten. Daraufhin leuchtet die Anzeige auf. • Das Schnellgefrieren dauert etwa 3 Stunden. Nach Beenden der Funktion wird die vorherige Temperatur automatisch wieder eingestellt.
Sperre • Über diese Taste werden die anderen Tasten deaktiviert. • Bei jedem Drücken der Taste ‘CHILD LOCK’ werden die übrigen Tasten "Gesperrt" bzw. "Freigegeben". (Halten Sie die Taste ‘CHILD LOCK’ zum "Sperren" bzw. "Freigeben" zwei Sekunden lang gedrückt.) • Bei aktivierter ‘CHILD LOCK’ können keine anderen Tasten gedrückt werden.
Seite 12
Hinweise Lebensmittellagerung t t i • i l b • t t i ü s l l ß i ü e l l ö t t i ß • t t i ä ü l ä • e l l f ü...
Seite 13
Pflege und Wartung • t s i Ö e i l ß r ü . t f • ü s ö e l i • e i l c ü ü ö ß ä ü c i r • ü ü...
Pflege und Wartung G ä A ß n ß ü ü l t t i . l e t t i ß e l l , t s ü t s i z t i t ä , ß i n i t t i , l e ü...
Seite 15
Problemlösungen Schauen Sie auf dieser Liste nach, bevor Sie den Kundendienst anrufen. So sparen Sie Zeit und Geld. Diese Liste enthält normale Vorfälle, die nicht auf Herstellungs- oder Materialfehler vom Gerät zurückzuführen sind. Problem Mögliche Ursachen • Stecker ist lose in der Steckdose. Kühl- Stecken Sie den Stecker richtig in die Steckdose.
Problemlösungen Problem Mögliche Ursachen Wassertropfen auf • Dies passiert normalerweise in einer feuchten Gehäuseoberfläche Umgebung. Mit einem trockenen Handtuch abwischen. Feuchtigkeitsansa • Tür zu oft oder zu lange offen. mmlung • Bei feuchtem Wetter gelangt feuchte Luft herein beim Öffnen der Tür herein. Geruch im •...
Umdrehen der Türen Die Kühl-/Gefrierschrank-Kombination ist mit umkehrbaren Türen zum Öffnen nach links bzw. nach rechts ausgestattet, je nach vorhandenen Räumlichkeiten der Küche. Vorsichtshinweis Nehmen Sie vor dem Wechseln der Türöffnungsrichtung sämtliche Lebensmittel und nicht befestigten Zubehörteile, wie Fachböden oder Schalen, heraus. Verwenden Sie zum Lösen und Festziehen der Schrauben einen Drehmoment- oder Schraubenschlüssel.
Seite 18
Durchstechen Sie die beiden kleinen Kappen an der Vorderseite mit einem Schraubenzieher und lösen Sie die Schrauben . Nehmen Sie die Vorderabdeckung ab. Verlegen Sie das Kabel nach links und befestigen Sie die Vorderabdeckung mit der Schraube. Nehmen Sie die kleinen Ersatzkappen aus dem Ersatzteilbeutel und befestigen Sie diese.
Table of Contents Introduction Registration Important Safety Instruction Identification of Parts Installation Installation Starting Operation Temperature Control Refrigerator Freezer Function Super Freezer Vacation Lock Self Test Ice Making Defrosting Suggestion On Storing Food Food storage Care and General Information Maintenance Lamp Replacement Cleaning Trouble Shooting...
Introduction Registration Introduction The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Seite 22
Introduction Important Safety Instruction Precaution Pull out the power plug prior to cleaning the fridge- freezer. Never damage, serverely bend, pull out, or twist the power cord because power cord damage may cause a fire or electronic shock. Never place glass products in the freezer because they may be broken when their inner contents are frozen.
Seite 23
Introduction o i t Warning l i t a i l - t l r i c . t i i r t a i l a i l a i l l a i , l a i v r a l i y l r f i l...
Introduction Introduction Identification of Parts Egg Tray(1 or 2) Removable Rotatable Glass Shelf(2 or 3) Door Basket (3 or 5) Lamp Multi-air Flow Duct Fresh Zone (Optional) Utility Corner (movable) Refrigerator Bottle Holder Temperature Control Vegetable Drawer Handle Used to keep fruits (Optional) and vegetables, etc.
Installation Installation Select a good location. Place your fridge-freezer where it is easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture. There must be proper air circulation around your fridge-freezer to keep it operating efficiently. To avoid vibration, the unit must be leveled.
Operation Temperature Control Your fridge-freezer has two controls that let you regulate the temperature in the fridge and freezer compartments. Refrigerator • Initially set the TEMP. CONTROL at "4". Then adjust the compartment temperature according to your desire. • If you want an inside temperature slightly less cold or colder, turn the TEMP.
Seite 27
Operation • The initial Temperature of the Freezer Compartment is -18°C . You can now adjust the temperature of the compartment as you want. < LED 88 Type > < LED BAR Type > • When you press the temperature control buttons, the temperature of Freezer compartment is repeated in the following order.
Operation Function Super Freezer • Please select this function for prompt freezer. • This function is used when you want to freeze the foods quickly. Press the ‘SUPER FRZ’ (Super Freezer) button once, and then the quick freeze operation starts with the lamp on.
Operation Lock • Pressing this button stops operation of other buttons. • ”Locking” or “Un-Locking” is repeated whenever pressing the ‘CHILD LOCK’ button. (For “Locking” or “Un-Locking” press the ‘CHILD LOCK’ button for 2 secs.) • When ‘CHILD LOCK’ is activated, pressing the other buttons would not work.
Suggestions on food storage Storing Food Storing Food • Do not store food which goes bad easily at low temperature, such as banana, and melon. • Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
Care and Maintenance General Information Power Failure • 1~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently. If You Move • Take out foods from the fridge-freezer and firmly fix the loose items with tape.
Care and Maintenance Cleaning Before Cleaning Be sure to unplug the power. Exterior Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth. Interior As above.
Trouble Shooting Trouble Shooting Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Possible Causes Fridge-Freezer •...
Trouble Shooting Problem Possible Causes Moisture collects • Too frequent or too long door openings. inside • In humid weather, air carries moisture into fridge when doors are opened. Fridge has odor • Foods with strong odors should be tightly covered or wrapped.
Seite 35
To Reverse the Doors Your fridge-freezer is designed with reversible doors, so that they may open from either the left or right hand side to suit your kitchen design. Precaution Before reversing the door, first of all, you should take out food and accessories like shelves or trays which are not fixed in the fridge-freezer.
Seite 36
Destroy the two small caps on the front of the cover front with a screw driver, then separate the screw and . Separate the cover front . Move the wire to left, install the cover front and the screw. Take the small caps out of the alternate bag, then install the small caps.
Seite 38
Vsebina Registracija Uvod Pomembna varnostna navodila Prepoznavanje posameznih delov Namestitev Namestitev Vklop Preverjanje temperature Delovanje Hladilnik Zamrzovalnik Funkcija Hitro zamrzovanje Počitnice Zaklepanje Samodejni test Izdelovanje ledenih kock Tajanje Shranjevanje hrane Predlog za shranjevanje hrane Splošne informacije Vzdrževanje in čiščenje Nadomeščanje luči Čiščenje Odpravljanje težav Odpravljanje težav...
Uvod Registracija Uvod Ime modela ter serijsko številko najdete na zadnji strani aparata. Ta številka je edinstvena in za druge aparate ne velja. Priporočamo vam, da si tukaj zabeležite vse potrebne informacije o aparatu in si ohranite navodila skupaj z vašim računom.
Seite 40
Uvod Pomembna varnostna navodila Preventivni ukrepi Pred čiščenjem hladilnika potegnite ven vtič. Ne poškodujte, ne pripogibajte, ne potegujte ven in ne ukrivljati žico, kjer boste tako poškodovali žico in bi lahko ta povzročila ogenj ali bi doživeli električen šok. Ne zamrzujte pijač v steklenicah, ker se tekočina pri zamrzovanju razširi in steklenica lahko poči.
Seite 41
Uvod Pomembna varnostna navodila w Pozor w Poskrbite, da bodo prezraËevalne odprtine znotraj ohiπja naprave ali vgrajene konstrukcije proste vseh ovir. w Za pospeπevanje odtajanja se posluæujte samo naËinov, ki jih je priporoËil izdelovalec, in ne uporabljajte raznih mehanskih pripomoËkov. w Hladilnega obtoka ne smete poπkodovati.
Uvod Prepoznavanje posameznih delov Vložek za jajca (1 ali 2) Odstranljivi stekleni vrtljiv Vratni koš polici (2 ali 3) Žarnica Večnamenska cev s pretokom zraka Cona svežega Koristen kot (gibljiv) zraka (izbirno) Kontrola temperature Držalo za hladilnika steklenice Predal za zelenjavo Ročaj Se uporablja za (izbirno)
Namestitev Namestitev Izberite dober prostor. Postavite hladilnik z zamrzovalnikom tam, kjer ga je možno enostavno uporabiti. Ne postavite hladilnika blizu vročega vira, ne izpostavite ga direktnim sončnim žarkom ali vlage. Okoli hladilnika mora biti dovolj prostora za cirkulacijo zraka za potrebo učinkovitega delovanja. Vibracijo lahko preprečite z izravnavo naprave.
Delovanje Preverjanje temperature Vaš hladilnik ima dve kontrole za reguliranje temperature v • hladilniku in v zamrzovalni enoti. Hladilnik • Postavite regulator za temperaturo na začetku na ”4”. Nato prilagodite temperaturo posameznega oddelka po lastni želji. TEMP. CONTROL • Če bi radi, da bo temperatura v hladilniku manj ali boI hladna, obrnite temu ustrezno vrtljivi gumb proti MIN ali MAX.
Seite 45
Delovanje • Začetna temperatura zamrzovalnega dela je -18°C . Zdaj lahko nastavite želeno temperaturo zamrzovalnega dela. < Tip 88 lučke LED > < Tip BAR lučke LED > • Ko pritisnete tipke za nadzor temperature, se temperatura zamrzovalnika ponovi na naslednji način. Tip 88 lučke LED zamrzovalnega dela: →...
Delovanje Funkcija Hitro zamrzovanje Za hitro zamrzovanje izberite to funkcijo. • Ta funkcija se uporablja, če želite hitro zamrzniti hrano. Enkrat • pritisnite tipko ‘SUPER FRZ.’ (Hitro zamrzovanje) in funkcija se bo začela, kar kaže prižgana lučka. Hitro zamrzovanje traja približno 3 ure. Po treh urah bo •...
Delovanje • Pritisk te tipke ustavi delovanje drugih tipk. Zaklepanje • Vedno ko pritisnete tipko ‘CHILD LOCK’ se “zaklepanje” in “odklepanje” ponovi. (Za “zaklepanje” ali “odklepanje” držite tipko ‘CHILD LOCK’ 2 sekundi.) • Ko je tipka ‘CHILD LOCK’ vklopljena, druge tipke ne delujejo. Pri vklopu Pri izklopu Samodejni test...
Predlog za shranjevanje hrane Shranjevanje hrane • Ne hranite v hladilniku hrano, ki se pri nizkih temperaturah hitro pokvari, to so npr. banane in buče. • Ne postavite vroče hrane v hladilnik. Če boste vseeno postavili vročo hrano v hladilnik, se bo s tem drugo hrana oparila, kar posledično poveča porabo energije.
Vzdrževanje in čiščenje Splošne informacije Izpad toka • 1 do 2 uri izpad toka ne škoduje hrani. Med tem časom omejujte pogosto odpiranje in zapiranje vrat. Ob selitvi • Vzemite ven vso hrano iz hladilnika in dobro zavarujte premi čne dele z lepilom.
Vzdrževanje in čiščenje Čiščenje Pred čiščenjem Preverite ali ste prekinili dovod električne energije. Zunanja stran Očistite zunanjo stran hladilnika z mehko krpo namočeno v vroči vodi ali vodi z detergentom. Pri uporabi detergenta morate nato pobrisati vse površine s čisto mokro krpo. Notranjo stran Glej zgoraj.
Seite 51
Odpravljanje težav Preden kličete servis, preverite naslednji seznam. To vam bo prihranilo čas in izdatke. Ta seznam vsebuje splošne možnosti motenj, ki pa niso rezultat pomanjkljive izdelave ali pomanjkljivega materiala v tem aparatu. Težave Možni vzroki Hladilnik ne deluje Morda ni vtaknjen vtič v vtičnici. •...
Odpravljanje težav Težave Možni vzroki Znotraj hladilnika • Vrata so bila prepogosto ali predolgo odprta. se nabira vlaga Na vlažnih dnevih prinese zrak vlago v hladilnik,ko se odprejo vrata V hladilniku je vonj • Hrana z močnim vonjem je potrebno zaviti tesno ali pokriti.
Zamenjava strani vrat Vaš hladilnik z zamrzovalnikom je opremljen z vrati, ki jih lahko namestite tako, da jih odprete z leve ali z desne strani. Tako lahko hladilnik prilagodite postavitvi vaše kuhinje. Nasvet Pred zamenjavo strani vrat najprej iz hladilnika vzemite hrano in dodatke, kot so poličke in pladnji, ki niso pritrjeni.
Seite 54
Z izvijačem uničite majhni pokrivali na sprednji strani pokrova in odvijte vijaka . Nato odstranite sprednji pokrov . Žico premaknite na levo, namestite sprednji pokrov in privijte vijak. Vzemite rezervni majhni pokrivali in ju namestite. Odstranite majhno pokrivalo na vratih hladilnika in ga ločite .
