2.3 Radiator installation

A – Cabin wall notch -Fig. 1
B – Radiator
C – Screen VIT-BL-L
D – Clamping bolts
A

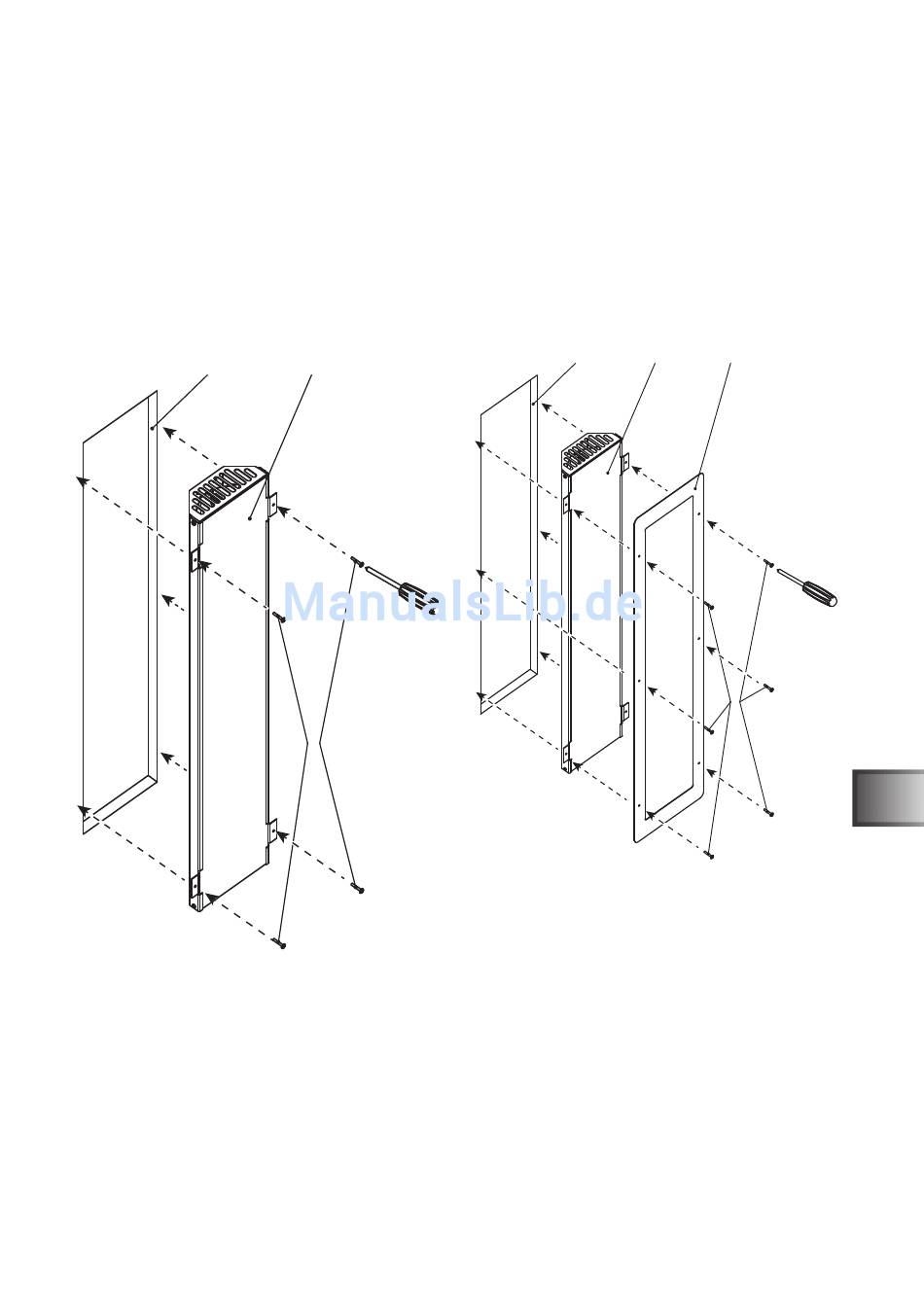

Fig. 3. – Installation without screen
Fire protection tape
Caution: the fire protection tape contained in the scope of supply must be applied before installation of
the radiator.
WE DO IT FIRST.
Instructions for installation and use – only for experts
stainless steel screen IR - radiato (500W/750W/1300W)
B
D
A B
Fig. 4 – Installation with screen
P. 7/10
C
D
EN
