Instructions for installation and use – only for experts P. 5/10

2.1 Installation

An aperture on the cabin wall is necessary for the proper installation of the radiator. The relevant dimen-
sions, in relation to the power rating of the radiator, can be found in Figure 1. The information of the cabin
manufacturer must be complied with!
EN
155

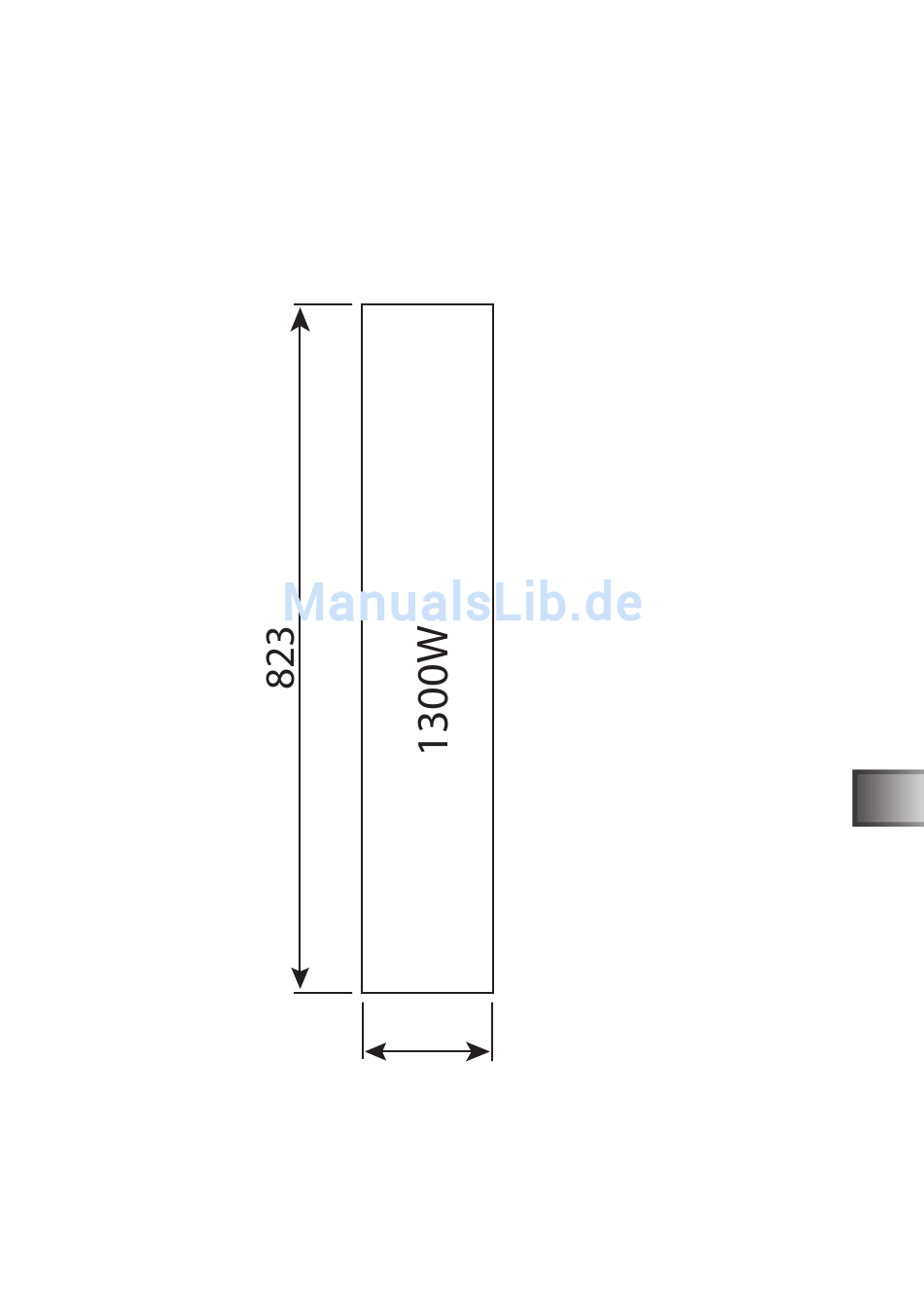

Fig. 1 – Installation aperture
