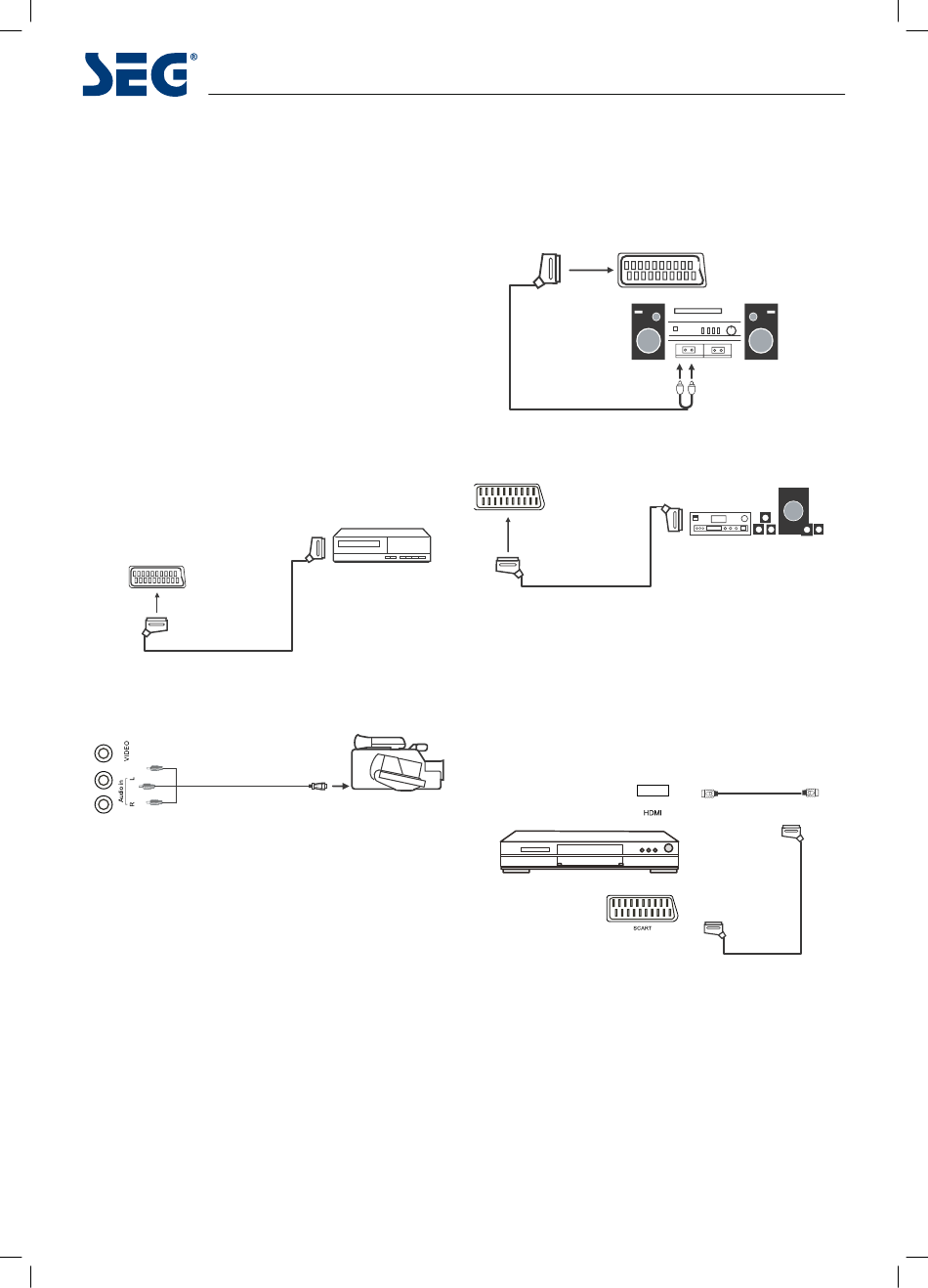

Connecting Video camera and Video recorder

Video camera
• Connect the AV cable to the TV and to the video cam-
era.
• Turn on both video camera and the TV.
• Select AV/CVBS source
• You can now see the playback picture from the video
camera. Note:
• To connect the video camera using other cables, refer
to the video camera instruction manual.
Video recorder
• Connect the Scart cable to the TV and video recorder.
• Turn on both video recorder and the TV.
• Select Scart source
• You can now see the playback picture from the video
recorder.
Note:
• To connect the video recorder using other cables, refer
to the video recorder instruction manual.
Scart cable
Use Scart adapter cable
AV cable
(All illustrated cables are not supplied)
2

Connecting an audio system

You can supply the TV sound to the stereo system (A) with
the Scart socket. Use a special Scart cable SCART to RCA.
(Please consult your hi-fi instructions for details). If you
have a surround sound amplifier/decoder (B) Use the
Scart cable or the special Scart cable Scart to RCA.
Video recorder
(All illustrated cables are not supplied)

Connecting a DVD player

Connect a DVD player using either a SCART cable or the
HDMI cable. (only if your external equipment supports
HDMI).
Video camera
(All illustrated cables are not supplied)
When using the SCART cable
• Switch on the TV
• Switch on the DVD player
• Select SCART as input source
When using the HDMI cable
• Select HDMI as input source
Minnesota 8cm LED BLU-TV
Scart to RCA cable
Scart cable
(A)
(B)
HDMI to HDMI
SCART
