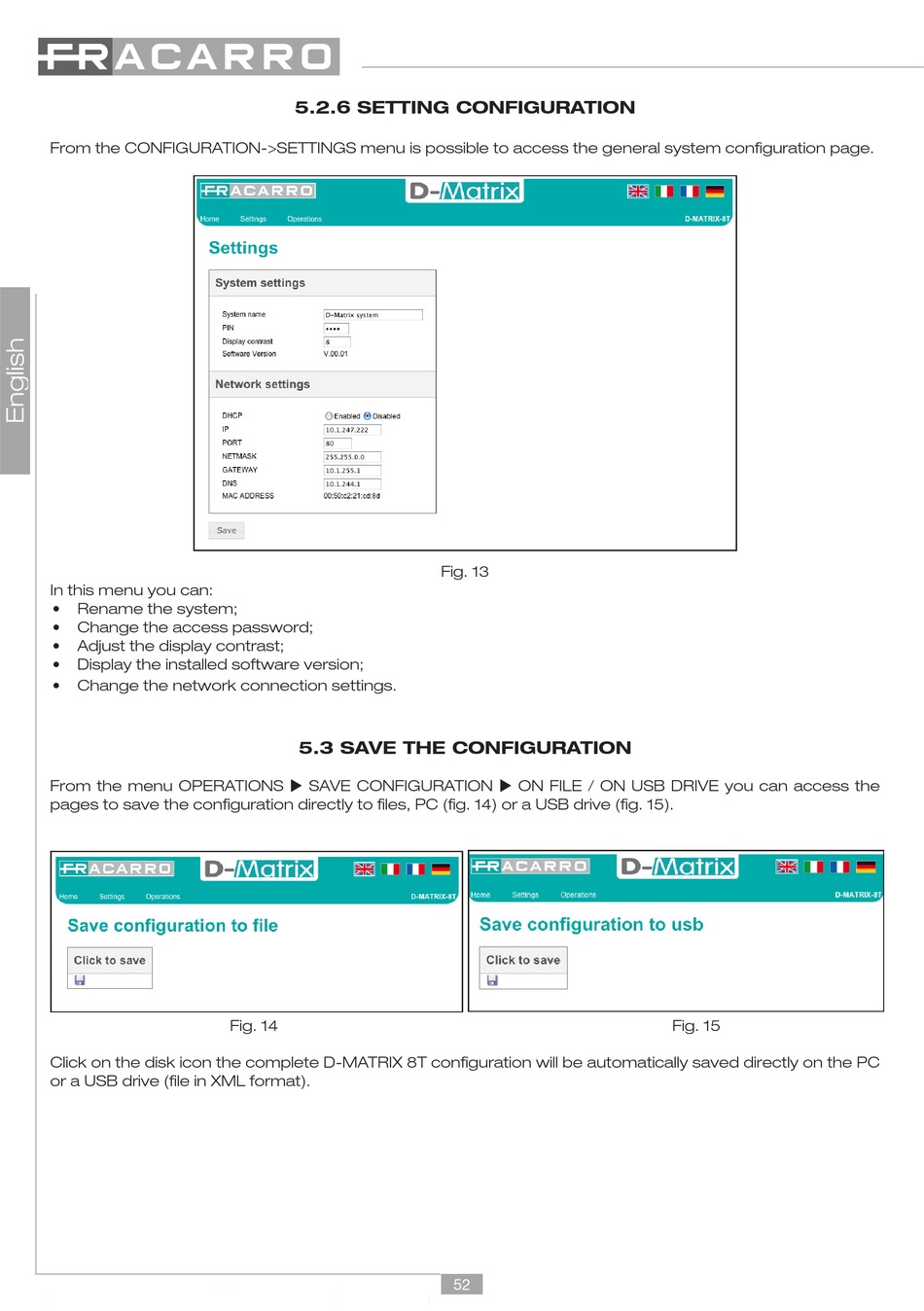

From the CONFIGURATION->SETTINGS menu is possible to access the general system configuration page.
In this menu you can:
• Rename the system;
• Change the access password;
• Adjust the display contrast;
• Display the installed software version;
• Change the network connection settings.
From the menu OPERATIONS  SAVE CONFIGURATION  ON FILE / ON USB DRIVE you can access the
pages to save the configuration directly to files, PC (fig. 14) or a USB drive (fig. 15).
Click on the disk icon the complete D-MATRIX 8T configuration will be automatically saved directly on the PC
or a USB drive (file in XML format).
5.2.6 SETTING CONFIGURATION
5.3 SAVE THE CONFIGURATION
Fig. 14
Fig. 13
52
Fig. 15
