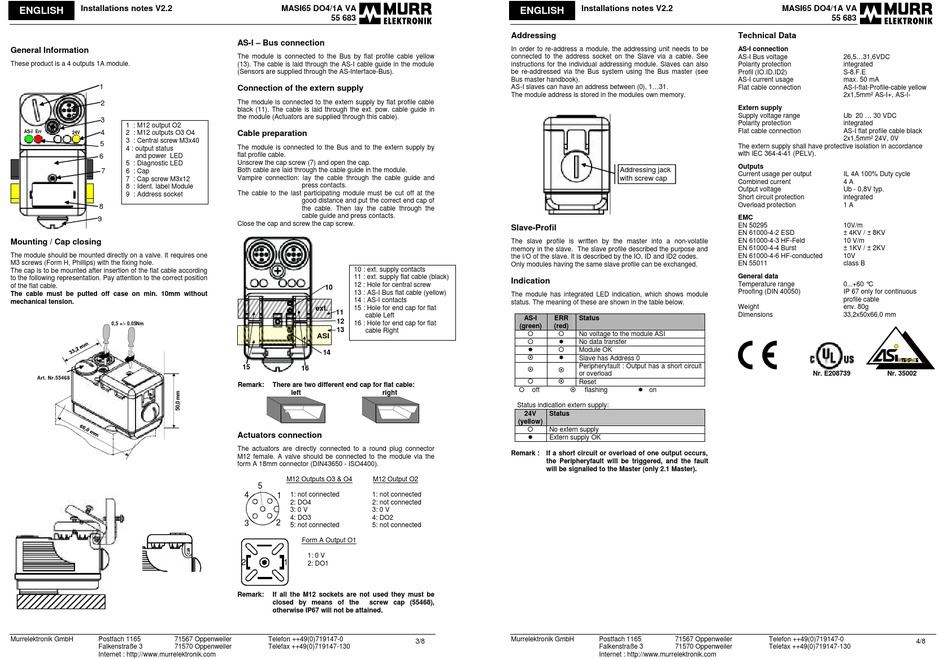

Installations notes V2.2
ENGLISH
General Information
These product is a 4 outputs 1A module.
1
2
3
1 : M12 output O2
4
AS-I Err
2 : M12 outputs O3 O4
24V
3 : Central screw M3x40
5
4 : output status
6
and power LED
5 : Diagnostic LED
7
6 : Cap
7 : Cap screw M3x12
8 : Ident. label Module
9 : Address socket
8
9
Mounting / Cap closing
The module should be mounted directly on a valve. It requires one
M3 screws (Form H, Phillips) with the fixing hole.
The cap is to be mounted after insertion of the flat cable according
to the following representation. Pay attention to the correct position
of the flat cable.
The cable must be putted off case on min. 10mm without
mechanical tension.
0,5 +/- 0.05Nm
Art. Nr.55468
Murrelektronik GmbH
Postfach 1165
71567 Oppenweiler
Falkenstraße 3
71570 Oppenweiler
Internet : http://www.murrelektronik.com
MASI65 DO4/1A VA
55 683
AS-I – Bus connection
The module is connected to the Bus by flat profile cable yellow
(13). The cable is laid through the AS-I cable guide in the module
(Sensors are supplied through the AS-Interface-Bus).
Connection of the extern supply
The module is connected to the extern supply by flat profile cable
black (11). The cable is laid through the ext. pow. cable guide in
the module (Actuators are supplied through this cable).
Cable preparation
The module is connected to the Bus and to the extern supply by
flat profile cable.
Unscrew the cap screw (7) and open the cap.
Both cable are laid through the cable guide in the module.
Vampire connection: lay the cable through the cable guide and
press contacts.
The cable to the last participating module must be cut off at the
good distance and put the correct end cap of
the cable. Then lay the cable through the
cable guide and press contacts.
Close the cap and screw the cap screw.
10 : ext. supply contacts
11 : ext. supply flat cable (black)
12 : Hole for central screw
10
13 : AS-I Bus flat cable (yellow)
14 : AS-I contacts
ext.
15 : Hole for end cap for flat
11
cable Left
12
16 : Hole for end cap for flat
13
cable Right
ASI
14
15
16
Remark:
There are two different end cap for flat cable:
left
right
Actuators connection
The actuators are directly connected to a round plug connector
M12 female. A valve should be connected to the module via the
form A 18mm connector (DIN43650 - ISO4400).
M12 Outputs O3 & O4
M12 Output O2
5
4
1
1: not connected
1: not connected
2: DO4
2: not connected
3: 0 V
3: 0 V
4: DO3
4: DO2
3
2
5: not connected
5: not connected
Form A Output O1
1: 0 V
2
1
2: DO1
Remark:
If all the M12 sockets are not used they must be
closed by means of the
screw cap (55468),
otherwise IP67 will not be attained.
Telefon ++49(0)719147-0
3/8
Telefax ++49(0)719147-130
Installations notes V2.2
ENGLISH
Addressing
In order to re-address a module, the addressing unit needs to be
connected to the address socket on the Slave via a cable. See
instructions for the individual addressing module. Slaves can also
be re-addressed via the Bus system using the Bus master (see
Bus master handbook).
AS-I slaves can have an address between (0), 1...31.
The module address is stored in the modules own memory.
Addressing jack
with screw cap
Slave-Profil
The slave profile is written by the master into a non-volatile
memory in the slave. The slave profile described the purpose and
the I/O of the slave. It is described by the IO, ID and ID2 codes.
Only modules having the same slave profile can be exchanged.
Indication
The module has integrated LED indication, which shows module
status. The meaning of these are shown in the table below.
AS-I
ERR
Status
(green)
(red)
¡
¡
No voltage to the module ASI
¡
-
No data transfer
-
¡
Module OK
¤
-
Slave has Address 0
Peripheryfault : Output has a short circuit
¤
¤
or overload
¡
¤
Reset
¡
¤
- on
off
flashing
Status indication extern supply:
24V
Status
(yellow)
¡
No extern supply
-
Extern supply OK
Remark : If a short circuit or overload of one output occurs,
the Peripheryfault will be triggered, and the fault
will be signalled to the Master (only 2.1 Master).
Murrelektronik GmbH
Postfach 1165
71567 Oppenweiler
Falkenstraße 3
71570 Oppenweiler
Internet : http://www.murrelektronik.com
MASI65 DO4/1A VA
55 683
Technical Data
AS-I connection
AS-I Bus voltage
26,5...31,6VDC
Polarity protection
integrated
Profil (IO.ID.ID2)
S-8.F.E
AS-I current usage
max. 50 mA
Flat cable connection
AS-I-flat-Profile-cable yellow
2x1,5mm² AS-I+, AS-I-
Extern supply
Supply voltage range
Ub 20 ... 30 VDC
Polarity protection
integrated
Flat cable connection
AS-I flat profile cable black
2x1,5mm² 24V, 0V
The extern supply shall have protective isolation in accordance
with IEC 364-4-41 (PELV).
Outputs
Current usage per output
IL 4A 100% Duty cycle
Combined current
4 A
Output voltage
Ub - 0,8V typ.
Short circuit protection
integrated
Overload protection
1 A
EMC
EN 50295
10V/m
EN 61000-4-2 ESD
± 4KV / ± 8KV
EN 61000-4-3 HF-Feld
10 V/m
EN 61000-4-4 Burst
± 1KV / ± 2KV
EN 61000-4-6 HF-conducted
10V
EN 55011
class B
General data
Temperature range
0...+60 °C
Proofing (DIN 40050)
IP 67 only for continuous
profile cable
Weight
env. 80g
Dimensions
33,2x50x66,0 mm
Nr. E208739
Nr. 35002
Telefon ++49(0)719147-0
4/8
Telefax ++49(0)719147-130
