CONNECTORS
USB 3.2 A-Port:
GND_DRAIN
StdB_SSTX + StdB_SSTX+
StdB_SSTX -
StdB_SSTX -
VCC GND
D- D+
RS-232 Connector:
Serial 9 Pin D-SUB Connector
Pin Signal Pin
1 CDC 4
2 RXD 5
3 TXD 6
RJ45 Connector:
RJ45 Connector
Pin Signal Pin
1 BI_DA+ 4
2 BI_DA- 5
3 BI_DB+ 6
+7V ~ 24V T-Block:
ATTENTION!!!
Never connect power to GND it will destroy your Hardware!
GND (Ground)
+7V ~ 24V
12 Volt Connector:
ATTENTION!!!
Use only with included power supply!
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1315IS. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1315IS USB to the USB A-Port at the your PC.
2. When you are ready you can start your PC and continue with the Driver Installation.
5
DRIVER INSTALLATION
USB 3.2
After the hardware installation, the OS will recognize the device automatically and install the
drivers
Attention!
Never plug in with force
CHECK INSTALLED DRIVER
or in wrong direction.
Open the >Device manager<. Now you should see at „USB Devices" the following new entry:
<Generic USB Hub>.
Serial RS-232
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please download the driver from our
homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your operating
system and install the driver. Follow the hardware assistant and finish the installation.
Signal Pin Signal
Important! Restart your PC in any case after installing the drivers.
DTR 7 RTS
CHECK INSTALLED DRIVER
GROUND 8 CTS
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
DSR 9 RI
Controller" the following new entry:
Signal Pin Signal
BI_DC+ 7 BI_DD+
BI_DC- 8 BI_DD-
BI_DB-
If you see this or a similar information the device is installed correctly.
Ehernet LAN
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please download the driver from our
homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your operating
system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ethernet Adapter" the following new
entry:
If you see this or a similar information the device is installed correctly.
CLEANING
To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Be
careful not to leave any fibres of the cloth in the connector area.
Never use a damp or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
Anleitung Anleitung
Vers. 1.1 / 22.08.24 Vers. 1.0, 21.12.22

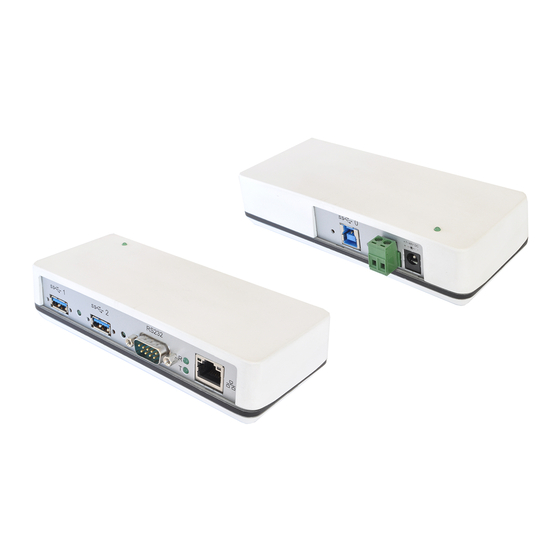

AUFBAU
2 x USB 3.0 A-Buchse
9 Pin Seriell RS-232 Stecker
RJ45 Anschluss mit Status LED´s
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1315IS USB 3.2 Gen 1 Dockingstation stellt einen seriellen RS232 Port mit
Überspannungsschutz und Isolation, einen Port mit Ethernet 10/100/1000Mbps sowie zwei USB
3.2 Gen 1 Ports zur Verfügung. Durch die einfache Installation muss der Rechner nicht geöffnet
werden und die EX-1315IS kann bei laufendem Betrieb installiert werden.
Kompatibilität: USB 1.1, 2.0, 3.0, 3.1, 3.2 / TCP/IP 10/100/1000
Betriebssysteme: Win 9.x/ME/2000/XP/Vista/7/8.x/10/11/Server 20xx/Linux/MAC
Anschlüsse: 1x USB 3.0 B-Buchse, 2x USB 3.0 A-Buchse, 1x 9 Pin D-SUB Stecker,
1x RJ45 Ethernet Anschluss, 1x T-Block 7-48V, 1x 12V/3A Buchse
Lieferumfang: EX-1315IS, USB-Kabel, DIN-Rail Kit, Netzteil 12V/3A, Anleitung
ANSCHLÜSSE
USB 3.2 B-Buchse:
GND_DRAIN
StdB_SSTX+
StdB_SSTX +
StdB_SSTX - StdB_SSTX -
VBus
D-
GND
D+
1
EX-1315IS
USB 3.0 B-Buchse
Betriebs LED
12V/3A DC Buchse
Terminal Block +7V~+48V
Achtung!
Stecker niemals umgekehrt
oder mit Gewalt einstecken.
