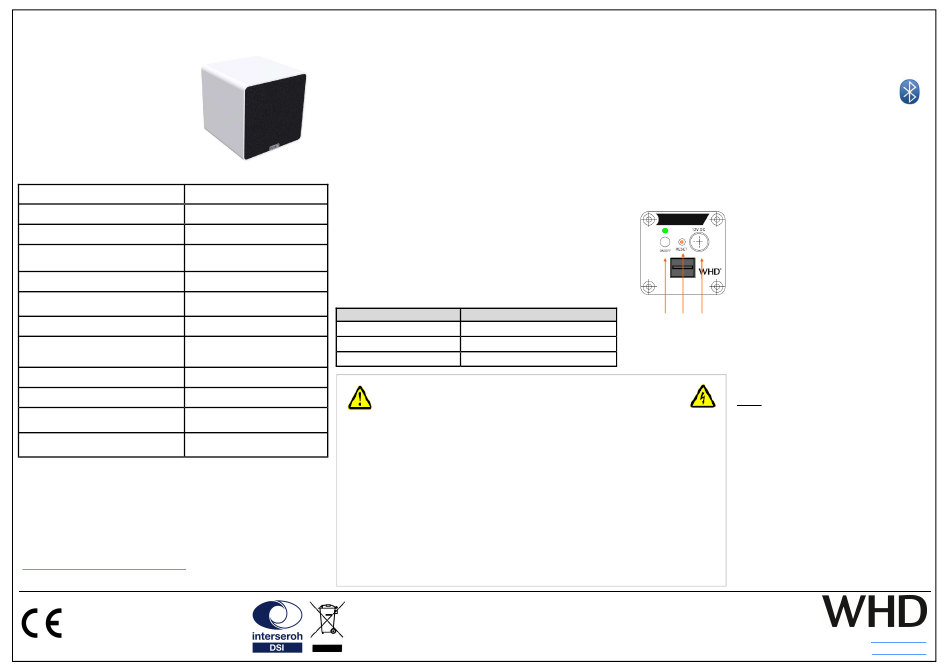

WHD Qube BT 2 go Bedienungsanleitung Seite 2

Manual
Applicable for:
Qube BT 2 go
Product-No.:
103-202-04-002-00
103-202-03-002-00
Specifications
Power Supply
Rated / Music power
SPL 1W/1m
Frequency Range (-3 dB)
Transmission Angle
1/2/4/8 kHz (-6 dB)
Bluetooth Bluetooth CSR 2.1 / A2DP
Maximum distance between
tansmitter an receiver
Dimensions (H/W/D)
Weight
Material
*) ... PIN coded version PIN see lable on the device
Note:
! To avoid battery drain of your Bluetooth devices, please at all times
disconnect the devices when they are not needed.
Product registration and extended warranty at:
www.whd.de/Produktregistrierung
This product supports all CE-
marking criteria. The declaration of
conformity certificate can be ob-
tained from WHD.
Operation
Thank you for buying our mobile Bluetooth hifi-spearker.
Please read this manual carefully, especially the safety and security information.
Mounting
Put the speaker to a desired location
! The speaker can also be used outdoors, should there not but be exposed to long term tem-
peratures <5 ° C / >30 ° C or humidity.
Notes on battery operation
The Qube BT 2 Go contains a permanently installed lithium-ion battery. The battery is NOT
replaceable. The charging time is approximately 4-5 hours.
The battery life is at full volume approx. 4 hours / at half volume about 8 hours.
Qube BT 2 go
110...230 V AC
Connecting the speaker:
- Connect power supply (3) for charging.
5 W
- Switch ON the Qube (1).
LED switches to „green".
84 dB
! When the Qube BT 2 go is switched ON it is automatically in
90-18000 Hz
Pairing Mode.
180/130/105/80 °
LED
GREEN
ORANGE
up to 10m
RED
120x120x120 mm
1,3 kg
Aluminium housing,
fabric panel
In addition to this guidance please comply with your own country-specific safety & security
regulations.
The device is not suitable for outdoor operation.
- The electrical supply must be disconnected before working on the device.
- Keep the original packaging (for returning products under warranty).
- Protect the product and the components supplied against dripping or splashing. Make
sure, as with all electronic products that no liquids can access any part of the system. This
may cause a malfunction or fire.
- Do not expose the product to temperatures above 30° C.
- Do not expose the product to electrostatic discharges.
- Never put the product near heat sources such as radiators, heat registers, stoves or other
types of devices that produce heat.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.
Status
Ready for operation
Charging
Device needs charging
Safty & Security Informations
Improper handling may void warranty!
WHD - Wilhelm Huber+Söhne GmbH+Co.KG
Bluetooth Operation
Proceed with PAIRING according to your
Bluetooth enabled device.
Making sure that your device meets the requi-
red Bluetooth specification. The pairing pro-
cess is very different from device to device.
! Please, read the manual of your Bluetooth-
enabled device carefully.
Pairing in general:
Pairing needs a distance 1 ... 5 m between
the Qube BT and your Bluetooth-enabled
Qube BT 2 go
LED device.
! Activate the Bluetooth Mode of your mo-
bile device and start the SEARCH function
for other Bluetooth equipment.
The device will show as „WHD Qube BT" or
seperatly ordered ACK e.g. „Kitchen".
Select and continue.
! If password is required, type „0000" or the
PIN *) of the lable on the device.
1 2 3
Disconnecting BT enabled device:
Proceed with DISCONNECTING according
to your Bluetooth enabled device.
FAQs
Why does y mobile phone loose its connec-
tion to the Qube BT when I was out of the
room?
- You were possibly more than 5 minutes out
of the Bluetooth transmission range.Your
mobile phone needs to be connected again
manually.
- Maybe another Bluetooth-enabled device is
still connected with the Qube BT. Disconnect
it and connect to your device again.
How much mobile devices can be handled
by the Qube BT?
Up to 8 different pairings with different de-
vices (9th IN/ 1st OUT).
Bismarckstr. 19
D-78652 Deißlingen
Tel. Zentrale +49 74 20 / 8 89-0
Fax Zentrale +49 74 20 / 8 89-51
Version
(Technical and optical
modifications reserved)
17.11.2017
E-Mail: info@whd.de
Web: www.whd.de
