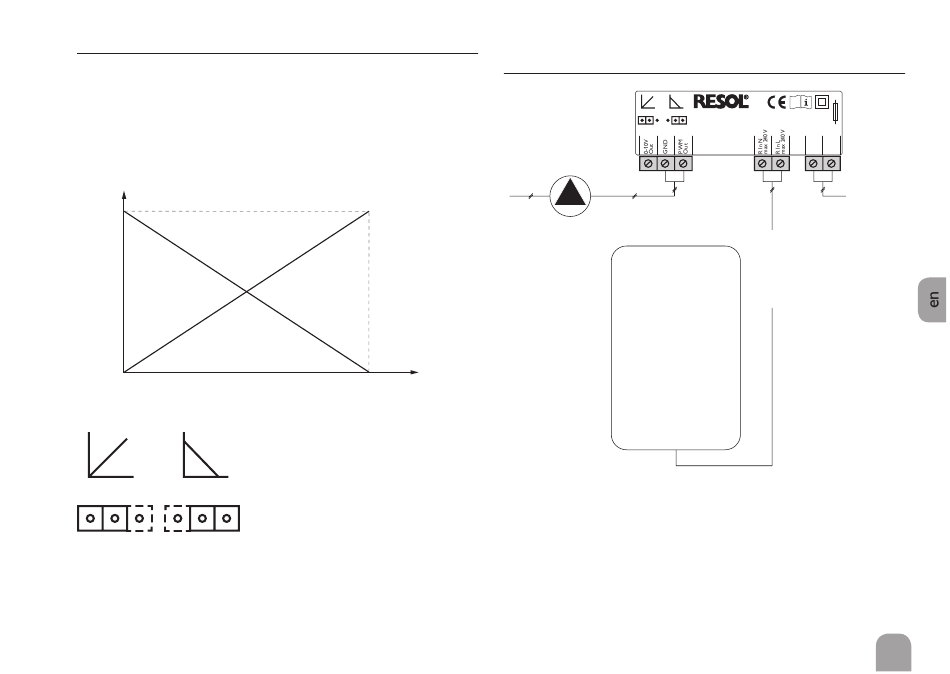

Inverting the output signal

By means of the three-pole jumper on the left-hand side
above the output terminals the output signal can be issued
inverted or not inverted.
Jumper position left: not inverted (solar pump)
Jumper position right: inverted (heating pump)
Eingang Input
Heating (H) Heizung (H)
100% 100%
0%
0%
S H
2.4
Solar (S)
Solar (S)
Mains
connection
230 V~
external
Output
Ausgang
100% 100%
PWM PWM
0-10 V 0-10 V
Application examples (pump with PWM
control)
S H
Made in Germany
PSW Basic
HE pump
Output signal:
PWM
Controller
Relay output of the controller
for pump speed control
T0,2A
220 ... 240 V~, 50-60 Hz
N L
Mains
connection
230 V~
Input signal:
230 V control signal from the
controller (On / Off, burst / wave
packet, phase cutting)
