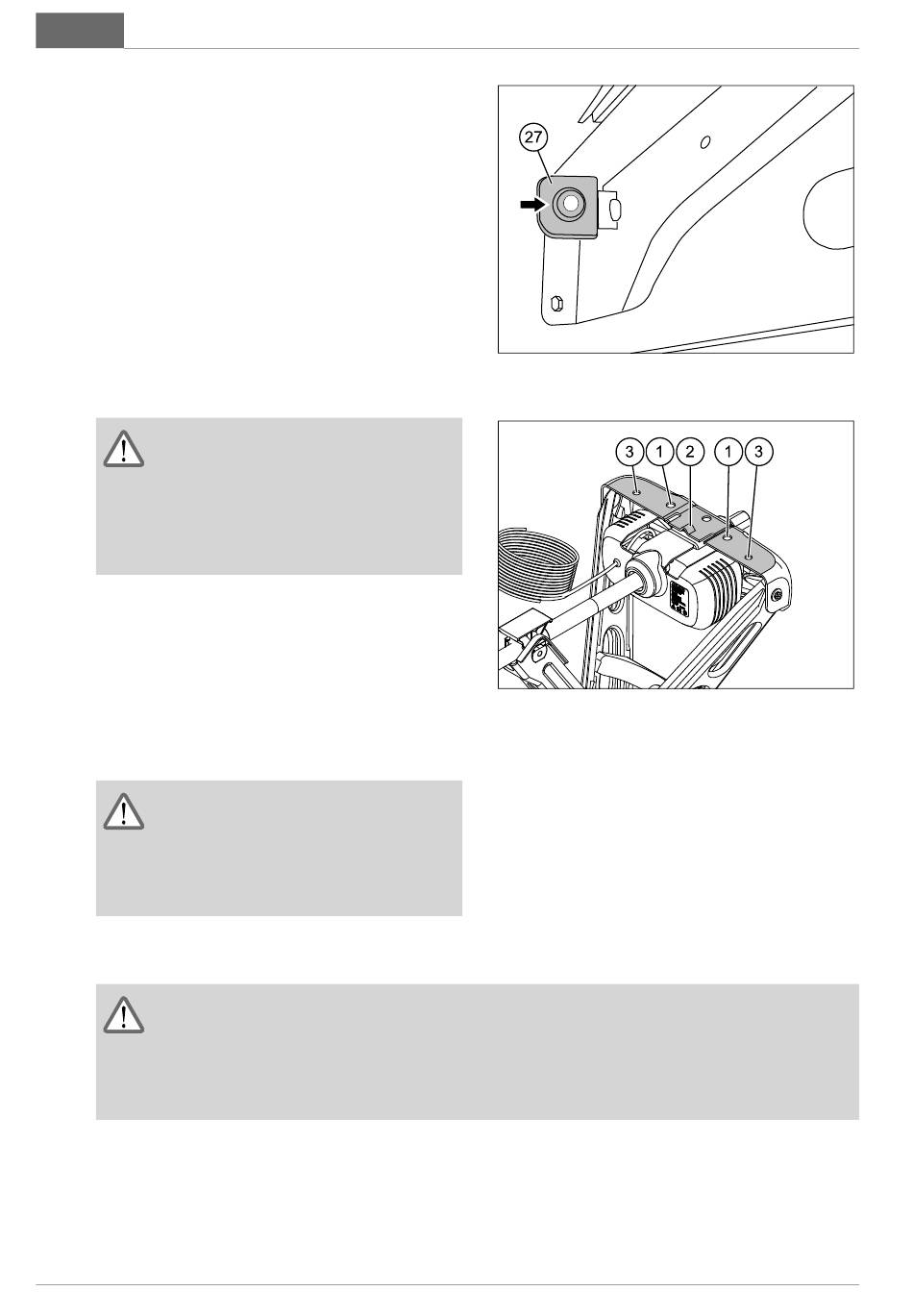

4. Place plug socket (27) on the lug.
5. Grease the plug socket (27) on the inside.
6. If necessary, align the tab at 90° to the frame.

Installing the electrical supports

CAUTION!
Use original AL-KO chassis parts or
those parts which have been expressly
approved for attaching from AL-KO!
These accessories have been tested for
AL-KO chassis.
1. Insert the two holding pins of the shim through
the holes (1) of the support panel.
2. Engage the "roof-like protrusion" (2) in the
square hole of the system extension when
doing this!
3. Fasten the supports onto the screws of the car-
avan floor with nuts. (3)
Tightening torque: 27 Nm
CAUTION!
Ensure that there is adequate ground
clearance!
The ground clearance must be at least 110
mm!

Electrical installation

CAUTION!
Check that the 12 V power supply to the battery and any 230 V electrical supply has been discon-
nected!
If the caravan has a battery, remove both terminal clamps before starting to install the electronic
components!
