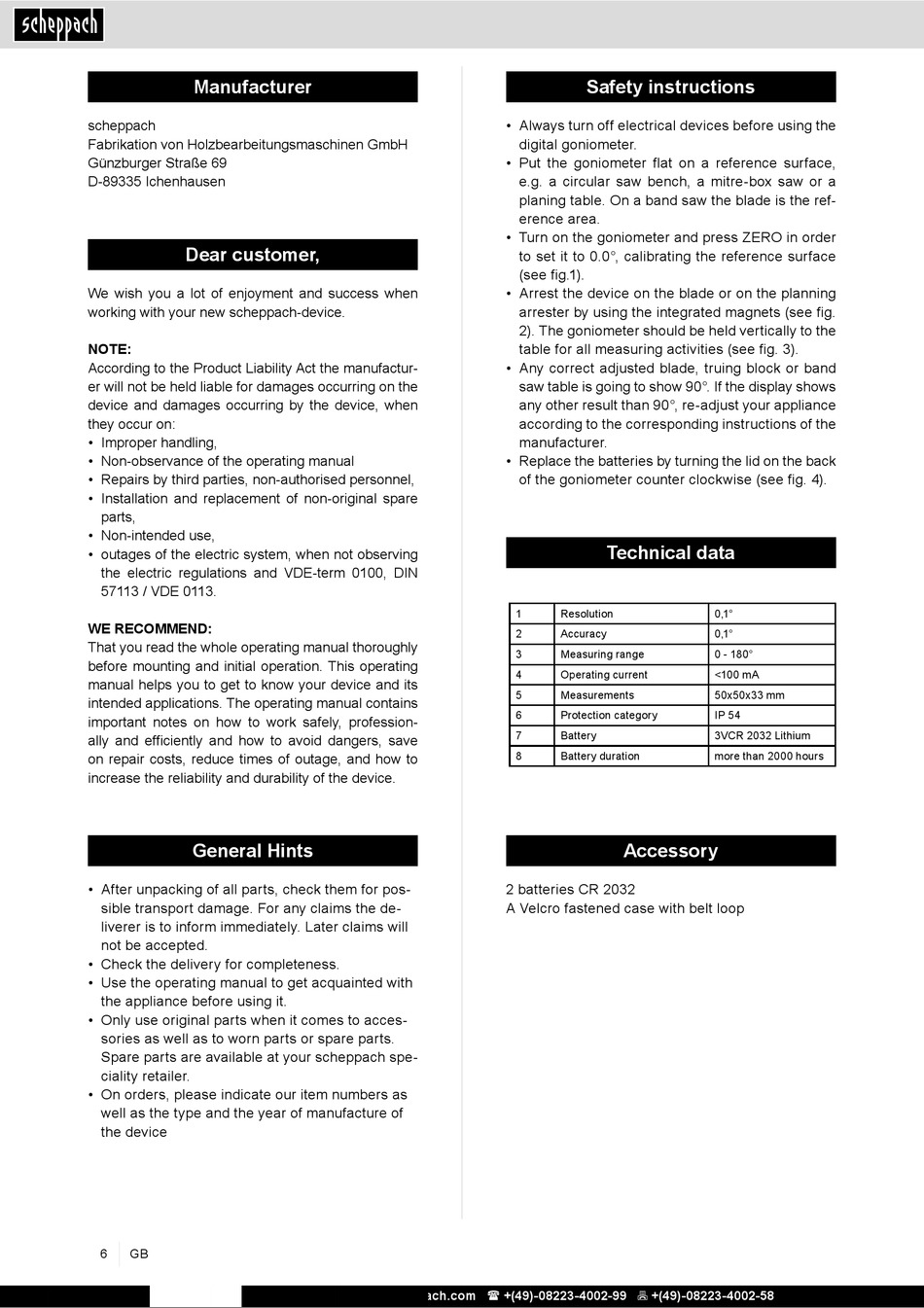

Manufacturer
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We wish you a lot of enjoyment and success when
working with your new scheppach-device.
NOTE:
According to the Product Liability Act the manufactur-
er will not be held liable for damages occurring on the
device and damages occurring by the device, when
they occur on:
• Improper handling,
• Non-observance of the operating manual
• Repairs by third parties, non-authorised personnel,
• Installation and replacement of non-original spare
parts,
• Non-intended use,
• outages of the electric system, when not observing
the electric regulations and VDE-term 0100, DIN
57113 / VDE 0113.
WE RECOMMEND:
That you read the whole operating manual thoroughly
before mounting and initial operation. This operating
manual helps you to get to know your device and its
intended applications. The operating manual contains
important notes on how to work safely, profession-
ally and efficiently and how to avoid dangers, save
on repair costs, reduce times of outage, and how to
increase the reliability and durability of the device.
General Hints
• After unpacking of all parts, check them for pos-
sible transport damage. For any claims the de-
liverer is to inform immediately. Later claims will
not be accepted.
• Check the delivery for completeness.
• Use the operating manual to get acquainted with
the appliance before using it.
• Only use original parts when it comes to acces-
sories as well as to worn parts or spare parts.
Spare parts are available at your scheppach spe-
ciality retailer.
• On orders, please indicate our item numbers as
well as the type and the year of manufacture of
the device
6
GB
www.scheppach.com service@scheppach.com +(49)-08223-4002-99 +(49)-08223-4002-58
Safety instructions
• Always turn off electrical devices before using the
digital goniometer.
• Put the goniometer flat on a reference surface,
e.g. a circular saw bench, a mitre-box saw or a
planing table. On a band saw the blade is the ref-
erence area.
• Turn on the goniometer and press ZERO in order
to set it to 0.0°, calibrating the reference surface
(see fig.1).
• Arrest the device on the blade or on the planning
arrester by using the integrated magnets (see fig.
2). The goniometer should be held vertically to the
table for all measuring activities (see fig. 3).
• Any correct adjusted blade, truing block or band
saw table is going to show 90°. If the display shows
any other result than 90°, re-adjust your appliance
according to the corresponding instructions of the
manufacturer.
• Replace the batteries by turning the lid on the back
of the goniometer counter clockwise (see fig. 4).
Technical data
1
Resolution
2
Accuracy
3
Measuring range
4
Operating current
5
Measurements
6
Protection category
7
Battery
8
Battery duration
Accessory
2 batteries CR 2032
A Velcro fastened case with belt loop
0,1°
0,1°
0 - 180°
<100 mA
50x50x33 mm
IP 54
3VCR 2032 Lithium
more than 2000 hours
