NightStick XPP-5420GX Gebrauchsanweisung

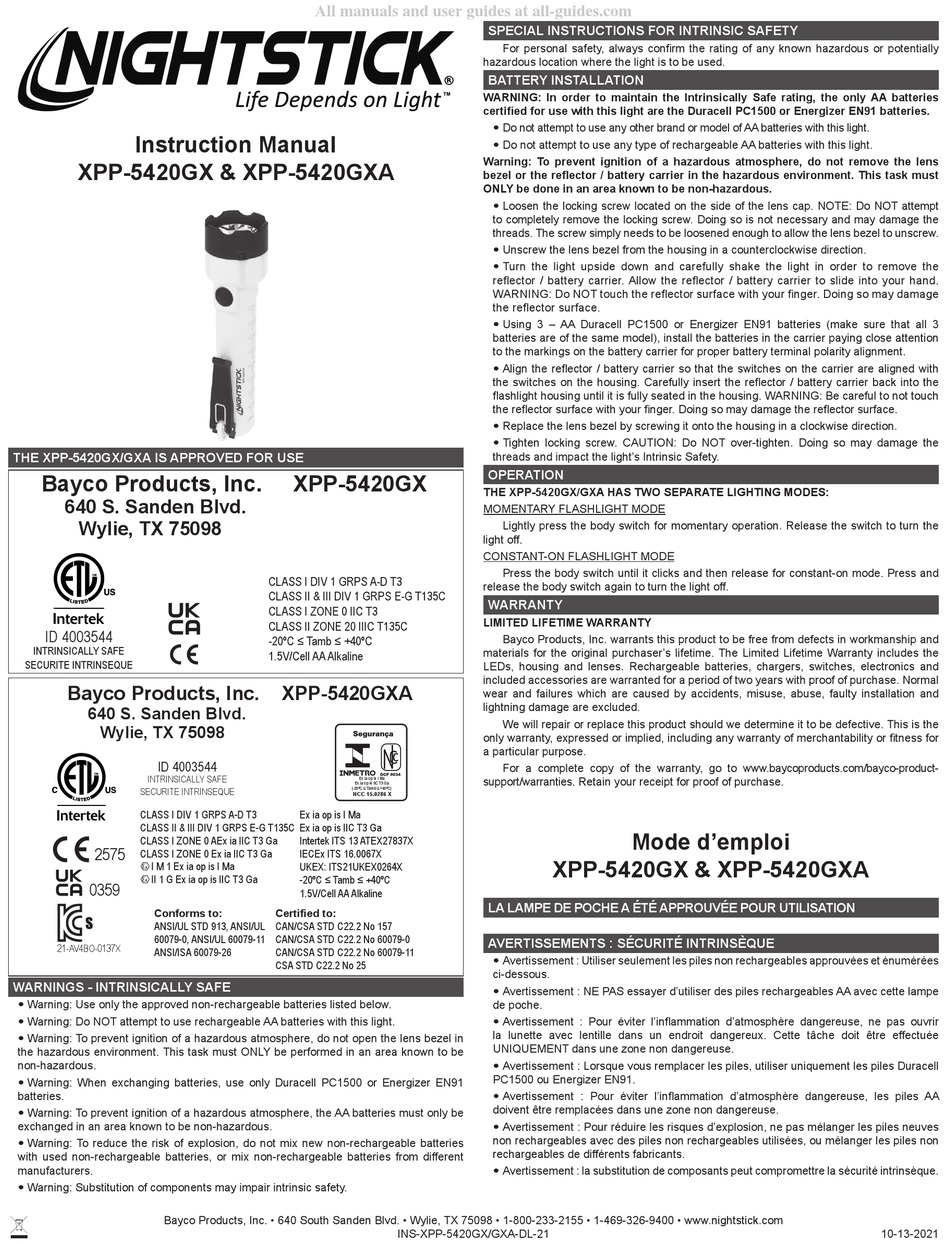

Instruction Manual
XPP-5420GX & XPP-5420GXA
THE XPP-5420GX/GXA IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
2575
CLASS I ZONE 0 Ex ia IIC T3 Ga
I M 1 Ex ia op is I Ma
II 1 G Ex ia op is IIC T3 Ga
0359
Conforms to:
ANSI/UL STD 913, ANSI/UL
60079-0, ANSI/UL 60079-11
21-AV4BO-0137X
ANSI/ISA 60079-26
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the lens bezel in
the hazardous environment. This task must ONLY be performed in an area known to be
non-hazardous.
y Warning: When exchanging batteries, use only Duracell PC1500 or Energizer EN91
batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries must only be
exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable batteries
with used non-rechargeable batteries, or mix non-rechargeable batteries from different
manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
All manuals and user guides at all-guides.com
XPP-5420GX
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 IIC T3
CLASS II ZONE 20 IIIC T135C
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
XPP-5420GXA
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
(-20ºC ≤ Tamb ≤ +40ºC)
NCC 15.0286 X
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
Intertek ITS 13 ATEX27837X
IECEx ITS 16.0067X
UKEX: ITS21UKEX0264X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
Certified to:
CAN/CSA STD C22.2 No 157
CAN/CSA STD C22.2 No 60079-0
CAN/CSA STD C22.2 No 60079-11
CSA STD C22.2 No 25
INS-XPP-5420GX/GXA-DL-21
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confi rm the rating of any known hazardous or potentially
hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the Intrinsically Safe rating, the only AA batteries
certifi ed for use with this light are the Duracell PC1500 or Energizer EN91 batteries.
y Do not attempt to use any other brand or model of AA batteries with this light.
y Do not attempt to use any type of rechargeable AA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the lens
bezel or the refl ector / battery carrier in the hazardo us environment. This task must
ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the side of the lens cap. NOTE: Do NOT attempt
to completely remove the locking screw. Doing so is not necessary and may damage the
threads. The screw simply needs to be loosened enough to allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counterclockwise direction.
y Turn the light upside down and carefully shake the light in order to remove the
refl ector / battery carrier. Allow the refl ector / battery carrier to slide into your hand.
WARNING: Do NOT touch the refl ector surface with your fi nger. Doing so may damage
the refl ector surface.
y Using 3 – AA Duracell PC1500 or Energizer EN91 batteries (make sure that all 3
batteries are of the same model), install the batteries in the carrier paying close attention
to the markings on the battery carrier for proper battery terminal polarity alignment.
y Align the refl ector / battery carrier so that the switches on the carrier are aligned with
the switches on the housing. Carefully insert the refl ector / battery carrier back into the
fl ashlight housing until it is fully seated in the housing. WARNING: Be careful to not touch
the refl ector surface with your fi nger. Doing so may damage the refl ector surface.
y Replace the lens bezel by screwing it onto the housing in a clockwise direction.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage the
threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5420GX/GXA HAS TWO SEPARATE LIGHTING MODES:
MOMENTARY FLASHLIGHT MODE
Lightly press the body switch for momentary operation. Release the switch to turn the
light off.
CONSTANT-ON FLASHLIGHT MODE
Press the body switch until it clicks and then release for constant-on mode. Press and
release the body switch again to turn the light off.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and
materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the
LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and
included accessories are warranted for a period of two years with proof of purchase. Normal
wear and failures which are caused by accidents, misuse, abuse, faulty installation and
lightning damage are excluded.
We will repair or replace this product should we determine it to be defective. This is the
only warranty, expressed or implied, including any warranty of merchantability or fi tness for
a particular purpose.
For a complete copy of the warranty, go to www. baycoproducts.com/bayco-product-
support/warranties. Retain your receipt for proof of purchase.
Mode d'emploi
XPP-5420GX & XPP-5420GXA
LA LAMPE DE POCHE A ÉTÉ APPROUVÉE POUR UTILISATION
AVERTISSEMENTS : SÉCURITÉ INTRINSÈQUE
y Avertissement : Utiliser seulement les piles non rechargeables approuvées et énumérées
ci-dessous.
y Avertissement : NE PAS essayer d'utiliser des piles rechargeables AA avec cette lampe
de poche.
y Avertissement : Pour éviter l'infl ammation d'atmosphère dangereuse, ne pas ouvrir
la lunette avec lentille dans un endroit dangereux. Cette tâche doit être effectuée
UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacer les piles, utiliser uniquement les piles Duracell
PC1500 ou Energizer EN91.
y Avertissement : Pour éviter l'infl ammation d'atmosphère dangereuse, les piles AA
doivent être remplacées dans une zone non dangereuse.
y Avertissement : Pour réduire les risques d'explosion, ne pas mélanger les piles neuves
non rechargeables avec des piles non rechargeables utilisées, ou mélanger les piles non
rechargeables de différents fabricants.
y Avertissement : la substitution de composants peut compromettre la sécurité intrinsèque.
10-13-2021
