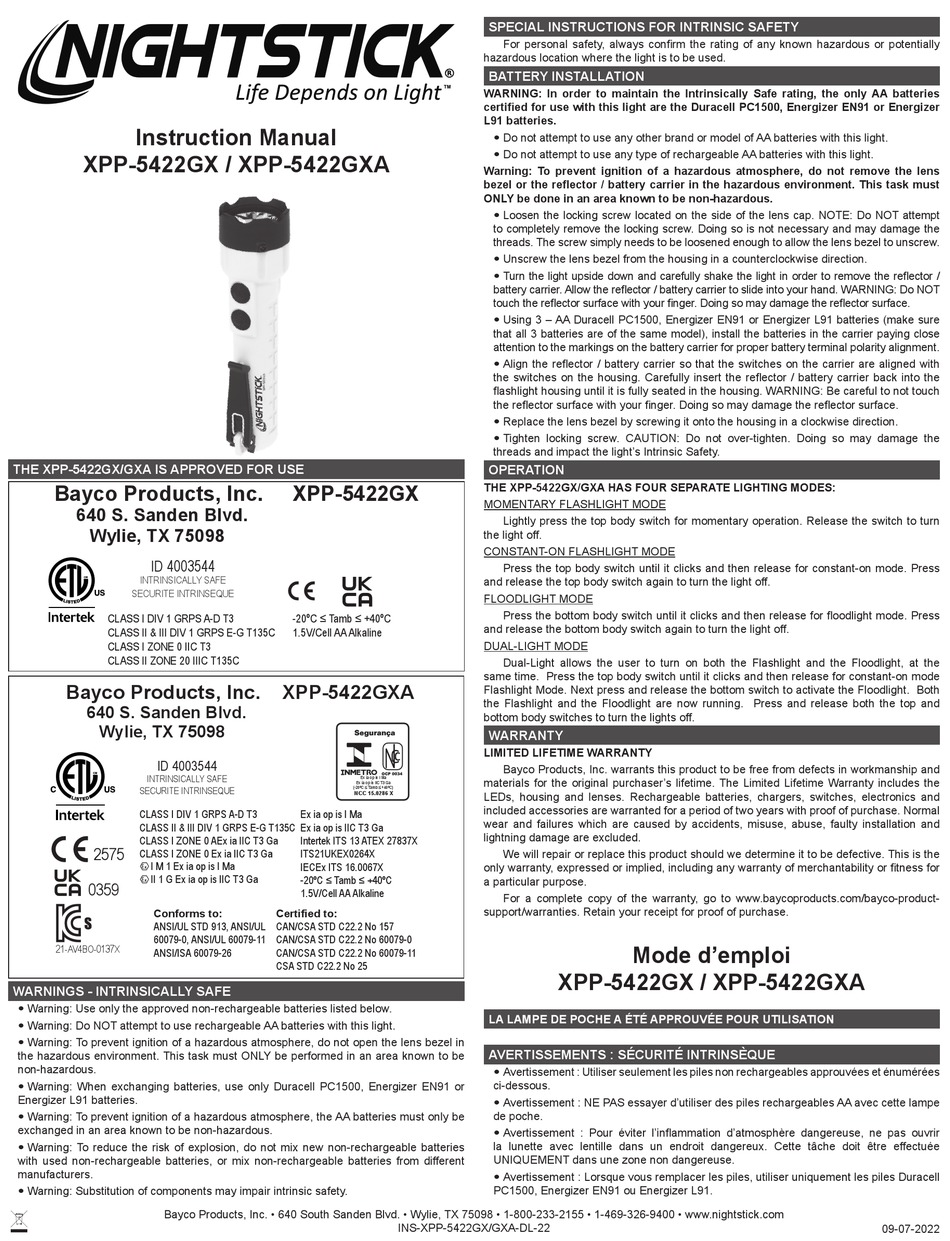

Instruction Manual

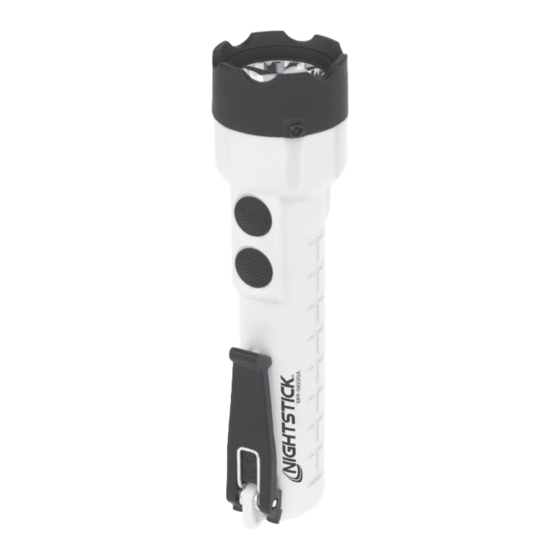

XPP-5422GX / XPP-5422GXA
THE XPP-5422GX/GXA IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 IIC T3
CLASS II ZONE 20 IIIC T135C
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
2575
CLASS I ZONE 0 Ex ia IIC T3 Ga
I M 1 Ex ia op is I Ma
II 1 G Ex ia op is IIC T3 Ga
0359
Conforms to:
ANSI/UL STD 913, ANSI/UL
60079-0, ANSI/UL 60079-11
21-AV4BO-0137X
ANSI/ISA 60079-26
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the lens bezel in
the hazardous environment. This task must ONLY be performed in an area known to be
non-hazardous.
y Warning: When exchanging batteries, use only Duracell PC1500, Energizer EN91 or
Energizer L91 batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries must only be
exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable batteries
with used non-rechargeable batteries, or mix non-rechargeable batteries from different
manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5422GX
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
XPP-5422GXA
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
(-20ºC ≤ Tamb ≤ +40ºC)
NCC 15.0286 X
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
Intertek ITS 13 ATEX 27837X
ITS21UKEX0264X
IECEx ITS 16.0067X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
Certified to:
CAN/CSA STD C22.2 No 157
CAN/CSA STD C22.2 No 60079-0
CAN/CSA STD C22.2 No 60079-11
CSA STD C22.2 No 25
INS-XPP-5422GX/GXA-DL-22
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confirm the rating of any known hazardous or potentially
hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the Intrinsically Safe rating, the only AA batteries
certified for use with this light are the Duracell PC1500, Energizer EN91 or Energizer
L91 batteries.
y Do not attempt to use any other brand or model of AA batteries with this light.
y Do not attempt to use any type of rechargeable AA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the lens
bezel or the reflector / battery carrier in the hazardous environment. This task must
ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the side of the lens cap. NOTE: Do NOT attempt
to completely remove the locking screw. Doing so is not necessary and may damage the
threads. The screw simply needs to be loosened enough to allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counterclockwise direction.
y Turn the light upside down and carefully shake the light in order to remove the reflector /
battery carrier. Allow the reflector / battery carrier to slide into your hand. WARNING: Do NOT
touch the reflector surface with your finger. Doing so may damage the reflector surface.
y Using 3 – AA Duracell PC1500, Energizer EN91 or Energizer L91 batteries (make sure
that all 3 batteries are of the same model), install the batteries in the carrier paying close
attention to the markings on the battery carrier for proper battery terminal polarity alignment.
y Align the reflector / battery carrier so that the switches on the carrier are aligned with
the switches on the housing. Carefully insert the reflector / battery carrier back into the
flashlight housing until it is fully seated in the housing. WARNING: Be careful to not touch
the reflector surface with your finger. Doing so may damage the reflector surface.
y Replace the lens bezel by screwing it onto the housing in a clockwise direction.
y Tighten locking screw. CAUTION: Do not over-tighten. Doing so may damage the
threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5422GX/GXA HAS FOUR SEPARATE LIGHTING MODES:
MOMENTARY FLASHLIGHT MODE
Lightly press the top body switch for momentary operation. Release the switch to turn
the light off.
CONSTANT-ON FLASHLIGHT MODE
Press the top body switch until it clicks and then release for constant-on mode. Press
and release the top body switch again to turn the light off.
FLOODLIGHT MODE
Press the bottom body switch until it clicks and then release for floodlight mode. Press
and release the bottom body switch again to turn the light off.
DUAL-LIGHT MODE
Dual-Light allows the user to turn on both the Flashlight and the Floodlight, at the
same time. Press the top body switch until it clicks and then release for constant-on mode
Flashlight Mode. Next press and release the bottom switch to activate the Floodlight. Both
the Flashlight and the Floodlight are now running. Press and release both the top and
bottom body switches to turn the lights off.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and
materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the
LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and
included accessories are warranted for a period of two years with proof of purchase. Normal
wear and failures which are caused by accidents, misuse, abuse, faulty installation and
lightning damage are excluded.
We will repair or replace this product should we determine it to be defective. This is the
only warranty, expressed or implied, including any warranty of merchantability or fitness for
a particular purpose.
For a complete copy of the warranty, go to www.baycoproducts.com/bayco-product-
support/warranties. Retain your receipt for proof of purchase.
Mode d'emploi
XPP-5422GX / XPP-5422GXA
LA LAMPE DE POCHE A ÉTÉ APPROUVÉE POUR UTILISATION
AVERTISSEMENTS : SÉCURITÉ INTRINSÈQUE
y Avertissement : Utiliser seulement les piles non rechargeables approuvées et énumérées
ci-dessous.
y Avertissement : NE PAS essayer d'utiliser des piles rechargeables AA avec cette lampe
de poche.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas ouvrir
la lunette avec lentille dans un endroit dangereux. Cette tâche doit être effectuée
UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacer les piles, utiliser uniquement les piles Duracell
PC1500, Energizer EN91 ou Energizer L91.
09-07-2022
